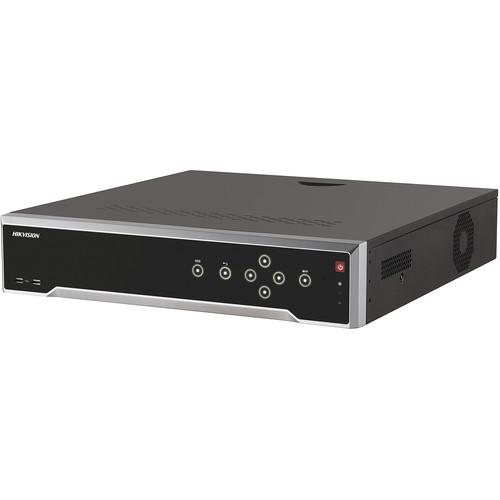

User Manual for Hikvision DS-7732NI-I4 32-Channel 12MP NVR with 16TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-7732NI-I4 32-Channel 12MP NVR with
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision DS-7732NI-I4 32-Channel 12MP NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to 32 channels of video with the DS-7732NI-I4 32-Channel 12MP NVR from Hikvision at resolutions up to 3840 x 2160. Equipped with four SATA ports, the NVR can support up to 24TB of internal storage (16TB pre-installed). External storage options include network servers, USB storage devices, and eSATA devices. H.265+, H.265, H.264+, H.264, and MPEG-4 compression are supported, enabling you to choose the format that works best for your application. The NVR enables simultaneous playback of up to 16 channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports. Up to 32 channels can be simultaneously recorded at full frame rates with a maximum combined transfer speed of 256 Mbps. The NVR is equipped with RCA connectors for bi-directional audio, as well as with RS-485 and RS-232 serial interfaces. - Smart search and smart playback
- Information import/export
- Real-time information display
UPC: 842571102741 In the Box Hikvision DS-7732NI-I4 32-Channel 12MP NVR with 16TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-7732NI-I4 32-Channel 12MP NVR with 16TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7732NI Specs | | | IP Video Inputs | 32-channel | | Two-Way Audio | RCA, 1-channel input (2.0 V p-p, 1 kOhm)
RCA, 1-channel output (linear 1 kOhm) | | Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | | Synchronous Playback | 16-channel | | Live View / Playback Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | | | | Bandwidth | 256 Mbps | | Remote Connection | 128 | | Network Protocol | 1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface | | HDMI Output | 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 | | VGA Output | 1920 × 1080p, 1280 × 1024, 1280 × 720, 1024 × 768 | | | | eSATA | 1 | | SATA | 4 x SATA ports | | Capacity | Up to 6 TB for each HDD
16 TB pre-installed | | | | Network Interface | 1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface | | Serial Interface | 1 x RS-485 half-duplex interface
1 x RS-232 | | USB Interface | Front Panel: 2 × USB 2.0
Rear Panel: 1 × USB 3.0 | | Alarm In | 16 | | Alarm Out | 4 | | | | Video Compression | H.265+, H.265, H.264+, H.264, MPEG-4 | | | | Power Supply | 100 to 240 VAC | | Consumption | Up to 20 W (without HDD) | | Working Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10-90% | | Chassis | 19" rack-mounted 1.5 RU chassis | | Dimensions | 17.5 x 15.3 x 2.8" (44.5 x 39 x 7 cm) | | Weight | Less than 11 lb (5 kg), without HDD |
