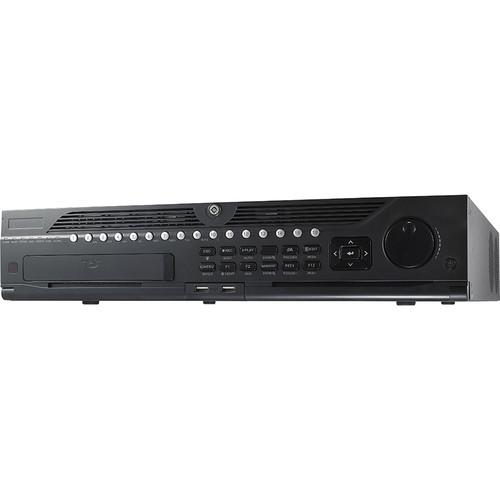

User Manual for Hikvision DS-9000HQHI-SH Series 32-Channel Digital Video Recorder Click to enlarge the picture
Contents of the user manual for the Hikvision DS-9000HQHI-SH Series 32-Channel Digital Video
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision DS-9000HQHI-SH Series 32-Channel Digital Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 42TB DS-9000HQHI-SH Series 32-Channel Digital Video Recorder from Hikvision allows you to record from up to 16 analog or HD-TVI video input sources. This DVR is capable of independently connecting to HD analog/network cameras and Coaxitron cameras. You can also connect up to 32 network cameras when all analog channels are disabled. It also features technologies such as audio and video encoding and decoding technology, embedded system technology, storage technology, network technology, and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. This DVR is suitable for use in applications such as finance, public security, military, communication, transportation, education, etc. - Connectable to HD-TVI, analog cameras, and Coaxitron cameras
- Supports network cameras up to 5MP resolutions
- Up to 32 network cameras (when all analog channels are disabled) can be added
- Simultaneous HDMI, VGA, and CVBS outputs
- Offers HDMI and VGA output at up to 1920 x 1080P resolution
- Intuitive GUI for simple operations and supports starting record with one key
- Multiple recording types: manual, continuous, alarm, motion, motion/alarm, motion and alarm, and VCA
- Instant playback for assigned camera during multi-channel live view mode
- Supports up to 16-channel synchronous playback at 1080P resolution and reverse playback for multiple channels
- Smart playback to effectively go through less information
- Manual video quality diagnostics
- Customization of tags, searching, and playing back by tags
- Locking and unlocking record files
- Support VCA alarm (line crossing detection intrusion detection)
- Support HDD quota and group management
- Different storage capacity can be assigned to different cameras under quota mode
- Provides up to 8 SATA interfaces and 1 eSATA interface for recording and taking backups
- Features 2 self-adaptive 10M/100M/1000M network interfaces
- Offers 3 configurable working modes - multi-address, load balance, network fault tolerance
- Supports access by EZVIZ Cloud P2P and Hikvision DDNS (Dynamic Domain Name System)
- Supports channel-zero encoding to decrease the bandwidth requirement when viewing multiple cameras
In the Box Hikvision DS-9000HQHI-SH Series 32-Channel Digital Video Recorder (42TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-9000HQHI-SH Series 32-Channel Digital Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-9016HQHI-SH-42TB Specs | | | Video Compression | H.264 | | Analog & HD-TVI Video Input | 16 x BNC interface (1.0 Vpp, 75 Ω) | | Supported Camera Types | 720P/25 Hz, 720P/30 Hz, 720P/50 Hz, 720P/60 Hz, 1080P/25 Hz, 1080P/30 Hz, CVBS | | IP Video Inputs | 18-Channel (up to 32 channels) up to 5 MP resolution | | Audio Compression | G.711u | | Audio Input | 16 x RCA (2.0 Vpp, 1 kΩ) | | Two-Way Audio Input | 1 x RCA (2.0 Vpp, 1 kΩ) | | | | Bandwidth | Incoming: 260 Mb/s | | Remote Connections | 128 | | Protocols | TCP/IP, PPPoE, DHCP, EZVIZCloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS | | | | HDMI / VGA Output | 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | CVBS Output | 1 x BNC (1.0 Vpp, 75 Ω)
NTSC Resolution: 704 x 480, PAL Resolution: 704 x 576 | | Encoding Resolution | Main Stream: 1080p, 720p, WDI, VGA, 4CIF, CIF
Sub-Stream: WD1 (non-real-time), 4CIF (non-real-time), CIF, QCIF, QVGA | | Frame Rate | Main Stream: 1/16 fps ~ real-time frame rate
Sub-Stream: 1/16 fps ~ real-time frame rate | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 2-channel, RCA (Linear, 1 kΩ, for VGA output and CVBS output respectively) | | Audio Bit Rate | 64 kb/s | | Dual Streaming | Supported | | Stream Type | Video, Video & Audio | | Synchronous Playback | 16 channels | | Playback Resolution | 1080p, 720p, VGA, WD1, 4CIF, CIF, QVGA, QCIF | | | | Type | 8 SATA interfaces for 8 HDDs; 1 x eSATA interface | | Capacity | Up to 6 TB capacity for each HDD, 42 TB included | | | | Network Interface | 2 x 10M / 100M / 1000M self-adaptive Ethernet interfaces | | Serial Interface | RS-232, RS-485, Keyboard | | USB Ports | 3 x USB 2.0 | | Alarm Input / Output | 16 / 4 | | | | Power Supply | 100 to 240 VAC, 47 ~ 63 Hz | | Power Consumption | ≤ 65 W (without hard disks) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 19" rack-mounted 2U chassis | | Dimensions | 17.5 x 18.5 x 3.5" (44.5 x 47.0 x 9.0 cm) | | Weight | ≤ 17.6 lb (8.0 kg) without hard disks |
