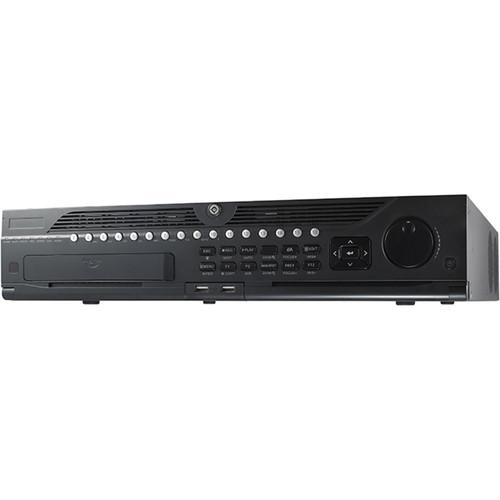

User Manual for Hikvision DS-9016HUI-K8 TurboHD 16-Channel 5MP HD-TVI DVR with No HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-9016HUI-K8 TurboHD 16-Channel 5MP HD-TVI
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision DS-9016HUI-K8 TurboHD 16-Channel 5MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-9016HUI-K8 TurboHD 16-Channel 5MP HD-TVI DVR with No HDD from Hikvision enables you to record from and manage up to 16 cameras. This DVR offers full channel recording at up to 5MP resolution. It comes with no HDD preinstalled. Storage is expandable to eight SATA HDDs, each with a maximum 8TB capacity, for a total of 64TB. A BNC interface supports HD-TVI and SD analog cameras. Additionally, IP cameras up to 12MP are supported. H.265+, H.265, H.264+, and H.264 video compression keep file sizes manageable while maintaining quality.
An RCA connector offers two-way audio communication. In addition, one VGA and two HDMI connections for video output support dual streaming to maximize bandwidth efficiency. The second HDMI connection can output up to 4K UHD resolution video. - Supports HD-TVI and CVBS signal inputs
- Supports IP cameras up to 12MP
- 16-channel synchronous playback
- Hot-swappable HDD support for RAID 0, 1, 5, 6, and 10
- Long-range transmission over coax
- Supported analytics include line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
- 1 x USB 3.0 and 2 x USB 2.0 ports
- 2 x self-adaptive 1000M Ethernet ports
- RS-232, RS-485, and keyboard serial interface
- 16 alarm inputs and eight alarm outputs
- CSA, FCC, CE, and cUL certified
UPC: 842571106275 In the Box Hikvision DS-9016HUI-K8 TurboHD 16-Channel 5MP HD-TVI DVR with No HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-9016HUI-K8 TurboHD 16-Channel 5MP HD-TVI DVR with No HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-9016HUI-K8 Specs | | | Video Compression | H.265+, H.265, H.264+, and H.264 | | Analog Video Input | 16
BNC interface (1.0 V p-p, 75 Ohms), supports Coaxitron connection | | HD-TVI Input | 5 MP, 4 MP, 3 MP, 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 60 fps, 1280 x 720 at 50 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps | | CVBS Input | Supported | | IP Video Input | 18 (up to 32)
Up to 12 MP resolution
Supports H.265+, H.265, H.264+, H.264 IP cameras | | Network Bandwidth | 320 Mb/s | | Audio Compression | G.711u | | Audio Input | 16-channel RCA, 2.0 V p-p, 1 kOhm | | CVBS Output | 1-channel BNC, 1.0 V p-p, 75 Ohms
Resolution:
NTSC: 704 x 480
PAL: 704 x 576 | | HDMI Outputs | Output 1:
1 Channel: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
Output 2:
1 Channel: 4K UHD (3840 x 2160) at 30 Hz, 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | VGA Output | 1-Channel: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | Video Loop Output | Supported | | Encoding Resolutions | 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF | | Frame Rate | Main Stream:
5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL)
Sub Stream:
WD1/4CIF/CIF at 30 fps (NTSC) / 25 fps (PAL) | | Video Bit Rate | 32 kb/s to 6 Mb/s | | Audio Output | 2-channel RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Streaming | Supported | | Stream Type | Video, video & audio | | Synchronous Playback | 16-channel | | | | Remote Connections | 128 | | Network Protocols | TCP/IP PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP | | | | SATA | 8 SATA interfaces | | eSATA | Supported | | Capacity | Up to 8 TB capacity for each disk (no HDD preinstalled) | | | | Two-Way Audio Input | 1-channel RCA (2.0 V p-p, 1 kOhm), independent | | Network Interface | 2 x RJ45 10/100/1000M self-adaptive Ethernet interface | | USB Interface | Front Panel: 2 x USB 2.0
Rear Panel: 1 x USB 3.0 | | Serial Interface | RS-232, RS-485 (full-duplex), keyboard | | Alarm I/O | 16/8 | | | | Power Supply | 100 to 240 VAC | | Power Consumption | Without HDD: ≤65 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions (W x D x H) | 17.5 x 18.5 x 3.5" / 445 x 470 x 90 mm | | Weight | ≤17.6 lb / ≤8 kg without HDD | | | | Package Weight | 25.35 lb | | Box Dimensions (LxWxH) | 22.8 x 22.4 x 8.2" |
