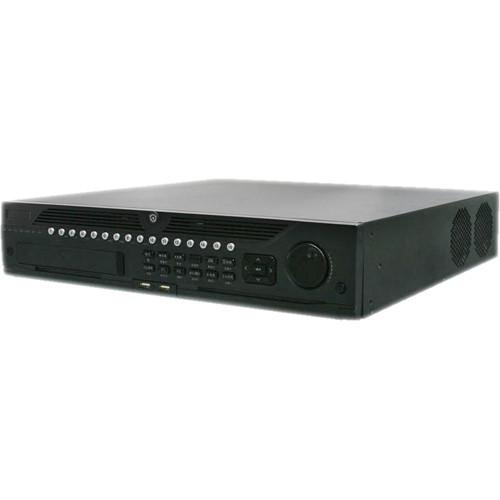

User Manual for Hikvision DS-9632NI-I8 32-Channel NVR Click to enlarge the picture
Contents of the user manual for the Hikvision DS-9632NI-I8 32-Channel NVR
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision DS-9632NI-I8 32-Channel NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-9632NI-I8 32-Channel NVR from Hikvision accepts up to 32 network cameras and supports third-party cameras. The use of H.264 video compression allows for enhanced recording capacity and low bandwidth consumption. The recorder can be used standalone or as part of a comprehensive surveillance system. The NVR features eight SATA interfaces to expand storage capacity, and an eSATA port and four USB ports to connect external storage devices. It comes with a built-in 12TB hard drive. The HDMI and VGA video outputs provide options for connecting monitors. - General Features
-
- Dual OS design to ensure high reliability of system running
- ANR technology to enhance storage reliability when the network is disconnected
- HDD hot swap with RAID 0, RAID 1, RAID 5, and RAID 10 storage scheme configurable
- HD Input
-
- H.265/H.264+/H.264/MPEG4 video formats
- Connectable to the third-party network cameras
- Up to 32 IP cameras can be connected
- Recording up to 12MP resolution
- Supports live view, storage, and playback of the connected camera at up to 12MP resolution
- HD Output
-
- HDMI1/VGA1 and HDMI2/VGA2 outputs provided
- HDMI1 video output at up to 4K (3840 x 2160) resolution
- HD Storage
-
- Up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup
- Saves storage space with the use of H.264+ decoding format
- HD Transmission
-
- 2 self-adaptive 10M/100M/1000M network interfaces, and two working modes are configurable which are multi-address and network fault tolerance
- Applications
-
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, 2-way audio, and upgrade
- Instant playback for assigned channel during multi-channel display mode
- Smart search for selected areas in videos and smart playback to improve efficiency
- Supports HDD quota and group modes
- Different capacities can be assigned to different channels
UPC: 813908023916 In the Box Hikvision DS-9632NI-I8 32-Channel NVR (12TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-9632NI-I8 32-Channel NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-9632NI Specs | IP Video Inputs | 32-channel | | Resolution | Up to 12MP | | Bandwidth | Input: 320 Mb/s or 200 Mb/s (when RAID is enabled) | | Output Bandwidth | 256 Mb/s or 200 Mb/s (when RAID is enabled) | | Remote Connection | 128 | | Recording Resolution | 12/8/6/5/4/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | | HDMI Output Resolution | HDMI1: 3840 x 2160 @ 60 Hz, 3840 x 2160 @ 30 Hz, 2560 x 1440 @ 60 Hz, 1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
VGA1: 2560 x 1440 @ 60 Hz, 1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
HDMI2/VGA2: 1920 x 1080p @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz | | Audio Output | 2-channel, RCA (2.0 V p-p, 1 kOhm) | | Decoding Formats | H.264, H.265, MPEG4 | | Synchronous Playback | 16-channel | | Capability | 4-channel @ 4K or 16-channel @ 1080p | | SATA | 8 SATA interfaces for 8 HDDs | | eSATA Port | 1 | | Capacity | Installed: 12 TB
Up to 6 TB capacity for each HDD | | Array Configuration | Array Type: RAID 0, RAID 1, RAID 5, RAID 10
Number of Arrays: 4 | | Network Interface | Interface: 2 x 10/100/1000 Mb/s self-adaptive Ethernet interface | | Serial Interface | 1 x RS-232
1 x RS-485
1 x keyboard | | USB Interface | 2 x USB 2.0 (front panel)
1 x USB 3.0 (rear panel) | | Alarm Input / Output | 16 x input
4 x output | | Power Supply | 100 to 240 VAC, 50 to 60 Hz | | Maximum Power | 200 W | | Consumption | ≤30 W (without HDD) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 19" (48.3 cm) rack-mounted 2U chassis | | Dimensions | 17.5 x 18.5 x 3.5" (44.5 x 47 x 9 cm) | | Weight | ≤22 lb (10 kg) (without HDD) | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 23.2 x 22.4 x 8.4" |
