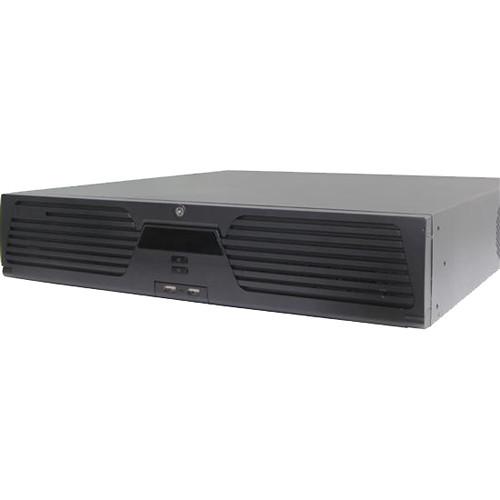

User Manual for Hikvision DS-9664NI-I8 64-Channel 4K NVR with 36TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-9664NI-I8 64-Channel 4K NVR with
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision DS-9664NI-I8 64-Channel 4K NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 36TB DS-9664NI-I8 64-Channel 4K NVR from Hikvision accepts up to 64 network cameras and supports third-party cameras that use ONVIF or PSIA protocol. It records video and audio at a bandwidth of up to 320 Mb/s. The use of H.264 video compression allows for enhanced recording capacity and low bandwidth consumption. The recorder can be used standalone or as part of a comprehensive surveillance system. The NVR features eight SATA interfaces to expand storage capacity, and an eSATA port and four USB ports to connect external storage devices. Each SATA interface supports up to a 4TB hard drive. The HDMI and VGA video outputs provide options for connecting monitors. This NVR is suitable for use in the areas of finance, public security, military, communication, transportation, education, etc. - Pluggable HDD design for convenient installation and maintenance
- Supports up to 64 network cameras including third-party cameras from ACTi, Arecont, AXIS, Bosch, Brickcom, Canon, Panasonic, Pelco, Samsung, Sanyo, Sony, Vivotek, and Zavio that support ONVIF or PSIA protocol
- Supports live view, storage, and playback at up to 8MP resolution from the connected cameras
- Simultaneous HDMI and VGA video outputs
- HDMI2 output supports up to 3840 x 2160/30Hz resolution, and HDMI1/VGA output up to 1920 x 1080 resolution
- Graphical user interface and one-key recording
- Redundant recording, holiday recording, and customizable capture schedule
- Provides instant playback for assigned channel during multi-channel display mode
- Synchronous playback for up to 16 channels
- Smart playback to quickly access less effective information
- Provides VCA functions when smart IP cameras from Hikvision are connected
- Customization of tags, searching, and playing back by tags
- Supports locking and unlocking recorded files
- Supports HDD quota and group modes; different capacities can be assigned to different channels
- Up to eight SATA HDDs and one eSATA disk can be connected for both recording and backup
- Hot-swappable HDDs support RAID0, RAID1, RAID5, and RAID10 configurations; 8 virtual disks can be configured
- Either normal or hot spare working mode is configurable to constitute an N+1 hot spare system
- 2 self-adaptive 10/100/1000 Mb/s network interfaces with configurable working modes, including multi-address, load balancing, and network fault tolerance
- Supports Hikvision DDNS (Dynamic Domain Name System)
- Supports channel-zero encoding, which enables you to view all channels in one screen via the remote client or web browser
- Supports network detection, including network delay and packet loss
- Dual-OS design ensures security of the system
UPC: 813908024234 In the Box Hikvision DS-9664NI-I8 64-Channel 4K NVR with 36TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-9664NI-I8 64-Channel 4K NVR with 36TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-9664NI-I8-36TB Specs | IP Video Inputs | 64-channel | | Two-Way Audio Input | 1 channel, RCA (2 V p-p, 1 kOhm) | | Bandwidth | Input: 320 Mb/s | | Output Bandwidth | 256 Mb/s | | Remote Connection | 128 | | Network Protocol | Hikvision, ACTi, Arecont, Axis, Bosch, Brickcom, Canon, Hunt, ONVIF (Version 2.4), Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Vivotek, Zavio | | HDMI Output Resolution | 2-Channel
HDMI1: 1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
HDMI2: 3840 x 2160 @ 30 Hz, 1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz | | VGA Output Resolution | 1-Channel
1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz | | Audio Output | 1-channel, RCA (linear, 1 kOhm) | | Decoding Formats | H.264, MPEG4, MJPEG | | Recording Resolution | 8 MP / 5 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | | Synchronous Playback | 16-channel | | SATA | 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8 HDDs | | eSATA Port | 1 | | Capacity | Installed: 36 TB
Up to 4 TB capacity for each HDD | | Array Configuration | Array Type: RAID0, RAID1, RAID5, RAID10
Number of Array: 8 | | Network Interface | Interface: 2 x 10/100/1000 Mb/s self-adaptive Ethernet interface | | Serial Interface | 1 x RS-232, 1 x RS-485, 1 x keyboard | | USB Interface | 2 x USB 2.0 (front panel)
2 x USB 3.0 (rear panel) | | Alarm Input / Output | 16 x input
4 x output | | | | Power Supply | 100 to 240 VAC, 50 to 60 Hz | | Consumption | ≤100 W without HDD or DVD-R/W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Chassis | 19" rack-mounted 2 RU chassis | | Dimensions (W x D x H) | 17.5 x 18.5 x 3.5" / 44.5 x 47.0 x 9.0 cm | | Weight | ≤17.6 lb / 8.0 kg, without HDD or DVD-R/W |
