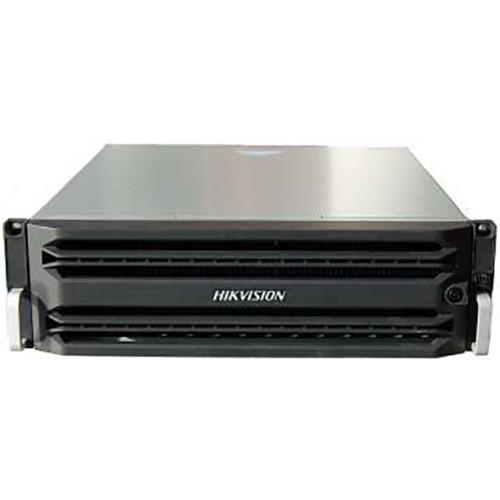

User Manual for Hikvision DS-A81016S Network Storage Device Click to enlarge the picture
Contents of the user manual for the Hikvision DS-A81016S Network Storage Device
- Product category: Dedicated Storage Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Dedicated Storage
|
User manual for the Hikvision DS-A81016S Network Storage Device contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Hikvision DS-A81016S Network Storage Device supports 16 HDDs, each with a 4TB capacity, to store up to 180 channels of 4CIF real-time recording. It supports iSCSI/NFS/CIFS/FTP/HTTP/AFP protocols, RAID 0, 1, 3, 5, 10, 50, and HDD hot-swap functionality. The device features dual gigabit network interfaces. - Modularization and redundant power design
UPC: 813908029406 In the Box Hikvision DS-A81016S Network Storage Device Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-A81016S Network Storage Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-A81016S Specs | Processor | 64-bit multicore processor | | Buffer | 4 GB (expandable to 8 GB) | | Recording | 256-channel (2 Mb/s) | | Operating System | Windows, Linux, Solaris, HP-UX, AIX, Mac OS | | Audio Encoding | OggVorbis | | Audio Output | 1-channel BNC (Linear level, 600 Ohms | | Slot | 16 | | Interface | SATA | | Supported HDD Capacities | 1, 2, 3, 4 TB | | Disk Management | S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology) | | LUNs | NAS Volume, iSCSI Volume, Record Volume | | Data Protection | WORM tamperproof , Real-time backup of system information, LUN clone | | Recording type | Continuous/ Manual / Main and Sub Stream / Motion / Sensor | | Backup | Recording: Local backup
Remote backup | | Protection | Lock key video file for protection, N+1 hot spare system, ANR, video loss alarm | | Search Modes | By time/type | | Download | Download Mode: Quick download, batch download, segment download, merging download | | Device Management | Management Method: Web-based GUI, CLI serial port, integrated management of multiple units | | Alarm Type | Sound, Flash LED, Email, SMS, Warning on device management page | | Logs | Auto-down load by USB flash drive, Remote backup via web browsing | | Protocols | RTSP/ONVIF/PSIA/iSCSI/NFS/CIFS/FTP/HTTP/AFP | | Ports | Data Port: 2 (can be expanded to 6), 10M/100M/1000M self-adaptive Ethernet interface
Management: 1, 10M/100M/1000M self-adaptive Ethernet interface
SAS Expansion: 1, 6 Gb/s
1 x VGA output
COM Interface: 2 (1 for hyper terminal and 1 for mobile phone alarm/UPS)
2 x USB | | Power Supply | Redundant (1 + 1)
Single power available | | Power Consumption | Maximum 460 W (with hard disk, redundant power)
Maximum 400 W (with hard disk, single power) | | Temperature | Operating: 41 to 104°F / 5 to 40°C
Storage: -4 to 158°F / -20 to 70°C | | Humidity | Operating: 20 to 80% RH (non-freezing, non-condensing)
Storage: 5 to 90% RH (non-freezing, non-condensing) | | Chassis | Standard 19" / 48.2 cm rack-mounted 3U chassis | | Dimensions (W x H x D) | 17.3 x 5.19 x 18.89" / 440 x 132 x 480 mm | | Weight | Approximately 44 lb / 20 kg (without hard disk, redundant power)
Approximately 40.7 lb / 18.5 kg (without hard disk, single power) |
