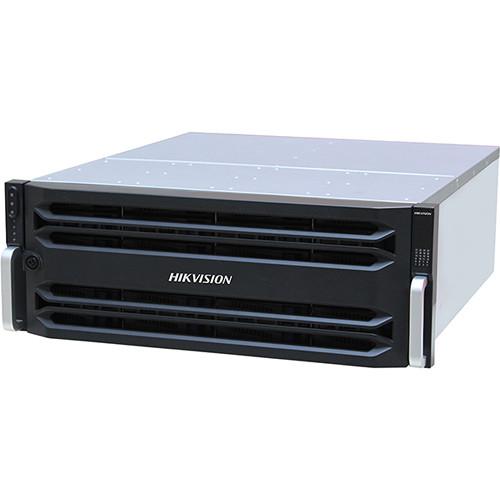

User Manual for Hikvision DS-A82024D Network Storage Device Click to enlarge the picture
Contents of the user manual for the Hikvision DS-A82024D Network Storage Device
- Product category: Dedicated Storage Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Dedicated Storage
|
User manual for the Hikvision DS-A82024D Network Storage Device contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-A82024D Network Storage Device from Hikvision is a double-controller framework storage device designed with redundancy for no single point of failure. UPC: 999999472960 In the Box Hikvision DS-A82024D Network Storage Device Limited 3-Years Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-A82024D Network Storage Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-A82024D Specs | Record and Playback | IPSAN: 256-ch (2 Mb/s)
CVR: 448-ch (2 Mb/s) | | Processor | Double controller (64-bit multicore processor) | | Memory | 4 GB per controller (can be extended expanded to 8 GB) | | Disk Drives | 24, supports up to 96 disks | | Disk Interface | 1, 2, 3, 4 TB SAS (SSD is optional) | | Hot Pluggable | Yes | | RAID Level | RAID 0,1,3,5,6,10,50,JBOD,Hot-Spare | | Management | Disk: Disk detection alert & repair
Logical Volume: NAS volume, iSCSI volume, record volume | | Data Protection | WORM tamperproofing, system information real-time backup, volume clone | | Mode | GUI based on web, serial port CLI, supports multidevice centralized management | | Alarm Mode | Voice, light, email, SMS, page | | Log | U disk automatic download, webpage login to save locally | | Network Protocol | iSCSI, NFS, CIFS, FTP, HTTP, AFP, FCP | | Interface | Data: 4 kOhms Ethernet port per controller
Increase to 4 GE or 2 x 10 GE or extend four 8 G FC
Management: 1 kOhm Ethernet port per controller
SAS Extension: Supported
COM: 2 x USB interfaces per controller (1 for HyperTerminal and 1 for mobile alarm)
USB: 2 x USB per controller
Power: Redundant power source (1 + 1) | | Consumption | Operating: ≤380 W rating
Power: ≤1050 W | | Temperature | Working: 41 to 104°F / 5 to 40°C
Storage: -4 to 158°F / -20 to 70°C | | Humidity | Working: 20 to 80 %RH (non-freezing, non-condensing)
Storage: 5 to 90% RH (non-freezing, non-condensing) | | Chassis | 19" / 48.3 cm 4U standard chassis | | Dimensions | 17.6 x 6.8 x 21.7" / 447 x 172 x 550 mm | | Weight | Approximately 70.5 lb / 32 kg without HDD or DVD-RWs |
