Hikvision DS-K1T105M-C Standalone Access Control Terminal

Search your instruction manual in PDF to download

User Manual for Hikvision DS-K1T105M-C Standalone Access Control Terminal with Mifare Reader & 2MP Camera

Click to enlarge the picture
Hikvision DS-K1T105M-C Standalone Access Control Terminal with Mifare Reader & 2MP Camera Contents of the user manual for the Hikvision DS-K1T105M-C Standalone Access Control Terminal
  • Product category: Keypads & Readers Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Keypads & Readers

Hikvision DS-K1T105M-C Standalone Access Control Terminal with Mifare Reader & 2MP Camera Hikvision DS-K1T105M-C Standalone Access Control Terminal with Mifare Reader & 2MP Camera
User manual for the Hikvision DS-K1T105M-C Standalone Access Control Terminal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!

Product description

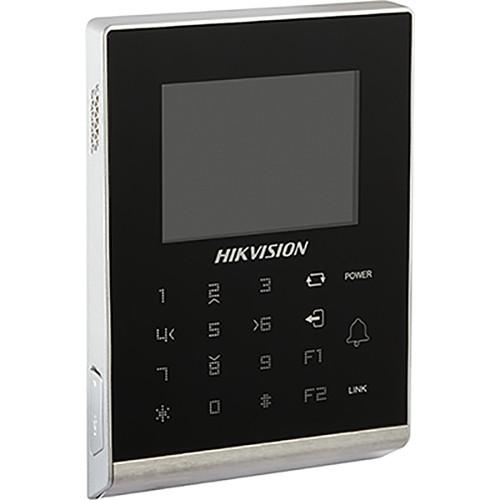

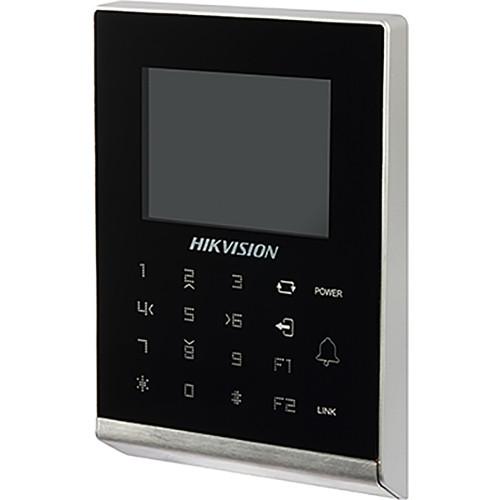

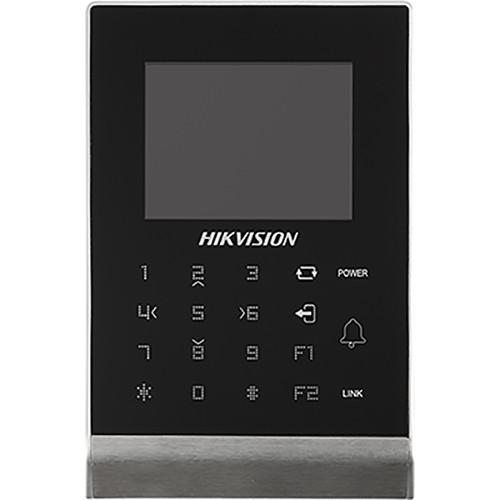

The DS-K1T105M-C Standalone Access Control Terminal with Mifare Reader & 2MP Camera from Hikvision is a standalone access control terminal designed to read Mifare contactless smart cards. This terminal is capable of reading up to 100,000 cards and capturing up to 300,000 events. It is equipped with a 2.8" TFT color LCD screen. The built-in 2MP camera enables face detection and still image capture. Audio is possible thanks to a built-in speaker. This device supports microSD cards up to 32GB for storage. microSD cards are available separately.
  • Supports TCP/IP, Wi-Fi communication, and eHome protocols
  • 32-bit high-performance processor
  • 2.8" TFT color LCD screen with 320 x 240 resolution
  • RS-485 IC reader
  • Built-in Mifare 13.56 MHz card reading frequency
  • Multiple door opening modes including card, card + password, and exit button
  • Input interfaces include an exit button, a door sensor, and 2 alarm inputs
  • Output interfaces include 1 relay and a doorbell connection
  • 10/100M self-adaptive Ethernet
  • Doorbell ringtone settings function
  • Supports offline operation
  • CE, FCC, and UL certified
UPC: 842571105544 In the Box Hikvision DS-K1T105M-C Standalone Access Control Terminal with Mifare Reader & 2MP Camera
  • Limited 3-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the Hikvision DS-K1T105M-C Standalone Access Control Terminal with Mifare Reader & 2MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    Hikvision DS-K1T105M-C Specs

    Processor ≥1 GHz, 32-bit high-performance processor
    Internal Storage 256 MB
    microSD Card Slot Supports cards up to 32 GB
    Operating System Linux
    Camera 2 MP
    Capability Card Capability: 100,000
    Recording Capability: 300,000
    Card Type Mifare
    Reading Frequency 13.56 MHz
    Card Reader External RS-485 IC reader
    Communication Mode TCP/IP, Wi-Fi, RS-485, and Wiegand 26/34 (under card reader mode only)
    Transmission Rate TCP/IP, Wi-Fi, 10/100M self-adaptive Ethernet, RS-485: 19,200 bps-N-8-1
    Input Interface 1 x exit button
    1 x door sensor
    2 x alarm
    Output Interface 1 x doorbell
    1 x relay
    LCD Screen 2.8" / 7.1 cm TFT LCD color display
    Resolution: 320 x 240
    Keyboard 16 keys (0-9, f1, DEL, switch key, *, #, doorbell)
    LED Indicators Power, communication
    Audio Built-in speaker
    Power Supply 12 VDC
    Working Current 500 mA, without locks
    Operating Temperature -4 to 149°F / -20 to 65°C
    Operating Humidity 10 to 90%, non-condensing
    Certifications CE, FCC, UL
    Dimensions 4.8 x 3.2 x 0.9" / 122 x 82 x 23 mm
    Weight 9.88 oz / 280 g
