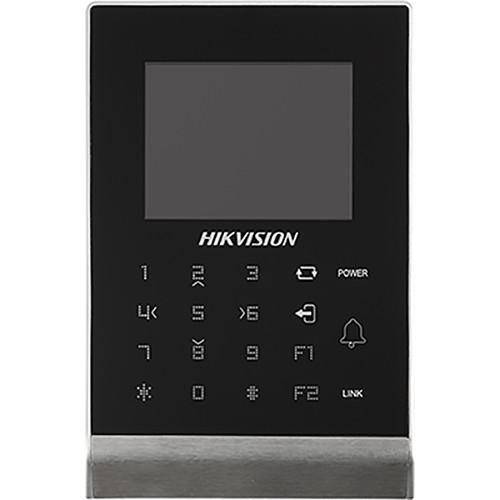

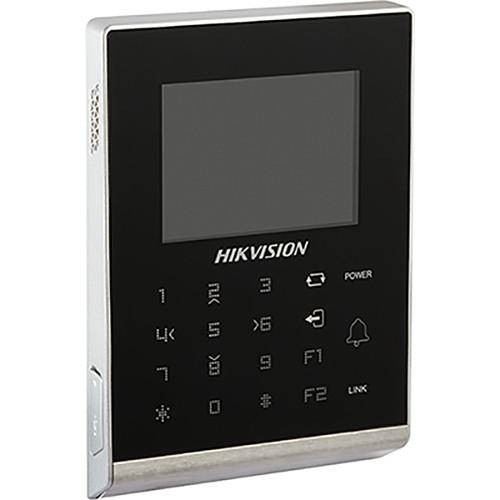

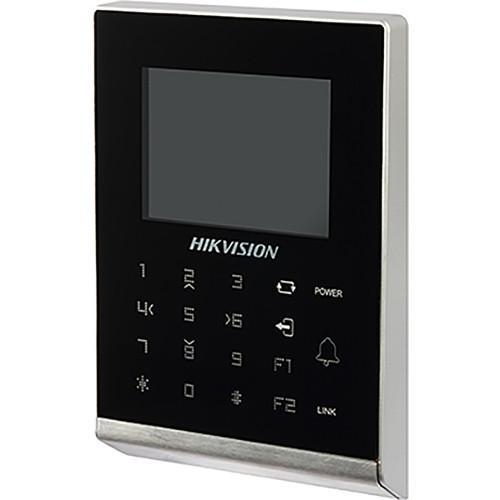

User Manual for Hikvision DS-K1T105M Standalone Access Control Terminal with Mifare Reader Click to enlarge the picture
Contents of the user manual for the Hikvision DS-K1T105M Standalone Access Control Terminal
- Product category: Keypads & Readers Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Keypads & Readers
 |
User manual for the Hikvision DS-K1T105M Standalone Access Control Terminal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-K1T105M Standalone Access Control Terminal with Mifare Reader from Hikvision is a standalone access control terminal designed to read Mifare contactless smart cards. This terminal is capable of reading up to 100,000 cards and capturing up to 300,000 events. It is equipped with a 2.8" TFT color LCD screen. Audio is possible thanks to a built-in speaker. This device supports microSD cards up to 32GB for storage. microSD cards are available separately. - Supports TCP/IP, Wi-Fi communication, and eHome protocols
- 32-bit high-performance processor
- 2.8" TFT color LCD screen with 320 x 240 resolution
- Built-in Mifare 13.56 MHz card reading frequency
- Multiple door opening modes including card, card + password, and exit button
- Input interfaces include an exit button, a door sensor, and 2 alarm inputs
- Output interfaces include 1 relay and a doorbell connection
- 10/100M self-adaptive Ethernet
- Doorbell ringtone settings function
- Supports offline operation
- CE, FCC, and UL certified
UPC: 842571105605 In the Box Hikvision DS-K1T105M Standalone Access Control Terminal with Mifare Reader Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-K1T105M Standalone Access Control Terminal with Mifare Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-K1T105M Specs | Processor | ≥1 GHz, 32-bit high-performance processor | | Internal Storage | 256 MB | | microSD Card Slot | Supports cards up to 32 GB | | Operating System | Linux | | Capability | Card Capability: 100,000
Recording Capability: 300,000 | | Card Type | Mifare | | Reading Frequency | 13.56 MHz | | Card Reader | External RS-485 IC reader | | Communication Mode | TCP/IP, Wi-Fi, RS-485, and Wiegand 26/34 (under card reader mode only) | | Transmission Rate | TCP/IP, Wi-Fi, 10/100M self-adaptive Ethernet, RS-485: 19,200 bps-N-8-1 | | Input Interface | 1 x exit button
1 x door sensor
2 x alarm | | Output Interface | 1 x doorbell
1 x relay | | LCD Screen | 2.8" / 7.1 cm TFT LCD color display
Resolution: 320 x 240 | | Keyboard | 16 keys (0-9, f1, DEL, switch key, *, #, doorbell) | | LED Indicators | Power, communication | | Audio | Built-in speaker | | Power Supply | 12 VDC | | Working Current | 500 mA, without locks | | Operating Temperature | -4 to 149°F / -20 to 65°C | | Operating Humidity | 10 to 90%, non-condensing | | Certifications | CE, FCC, UL | | Dimensions | 4.8 x 3.2 x 0.9" / 122 x 82 x 23 mm | | Weight | 9.88 oz / 280 g |
