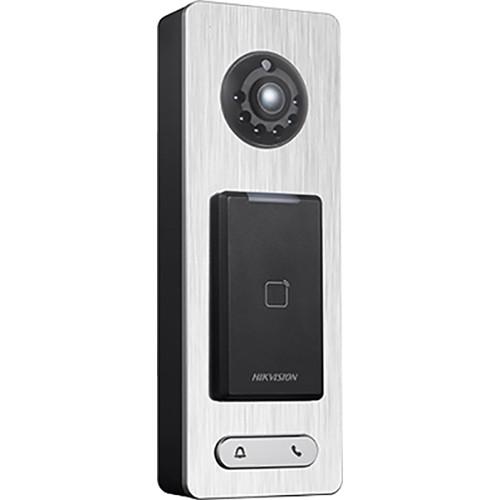

User Manual for Hikvision DS-K1T500S Video Access Control Terminal with Mifare Reader Click to enlarge the picture
Contents of the user manual for the Hikvision DS-K1T500S Video Access Control Terminal
- Product category: Keypads & Readers Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Keypads & Readers
|
User manual for the Hikvision DS-K1T500S Video Access Control Terminal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-K1T500S Video Access Control Terminal from Hikvision is a video access control terminal designed to read Mifare contactless smart cards. This terminal is capable of reading up to 50,000 cards and capturing up to 200,000 events. Two-way audio communication is possible thanks to a built-in microphone and speaker.
This device can integrate with NVR systems to record video. Additionally, it supports face detection, remote live view, picture capture, and microSD cards up to 32GB for storing video and images. The DS-K1T500S is IP65-rated, making it suitable for outdoor use. - Supports TCP/IP, Wi-Fi communication, and eHome protocols
- 32-bit high-performance processor
- Input interfaces include a magnetic door sensor, 2 alarm inputs, a tamper-resistant switch, and an exit button
- Output interfaces include lock and alarm (doorbell) outputs
- CE, FCC, and UL 60950-1 certified
- Surface and metal door mountable via a standard US single gang box
UPC: 842571105650 In the Box Hikvision DS-K1T500S Video Access Control Terminal with Mifare Reader Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-K1T500S Video Access Control Terminal with Mifare Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-K1T500S Specs | Processor | 32-bit high-performance processor | | Camera | 2 MP, 1920 x 1080, IR light | | Built-In Microphone | Sensitivity: -25 ±3 dB | | Built-in Speaker | 1 W | | Capability | Card Capability: 50,000
Record Capability: 200,000 | | Storage | Maximum 32 GB, built-in microSD card slot | | Card Reading Mode | Mifare card | | Card Reading Distance | ≤2" / ≤5 cm | | Communication Mode | Terminal Mode: Uplink (TCP/IP), Downlink (RS-485)
Card Reader Mode: Uplink (Wiegand 26/34, RS-485) | | Input Interface | 1 x magnetic door sensor
2 x alarm input
1 x tamper-resistant switch
1 x exit button | | Output Interface | 1 x lock
1 x alarm output (doorbell) | | Video Storage | Record and save video to NVR | | IP Rating | IP65 | | Certifications | CE, FCC, UL 60950-1 | | Power Supply | 12 VDC / 1 A | | Maximum Operating Current | 600 mA | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 90 %, non-condensing | | Faceplate | Brushed metal | | Mounting | Surface mounting, metal door mounting | | Dimensions | 8.58 x 3.07 x 1.61" / 218 x 78 x 41 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.705 lb | | Box Dimensions (LxWxH) | 11.5 x 6.2 x 3.7" |
