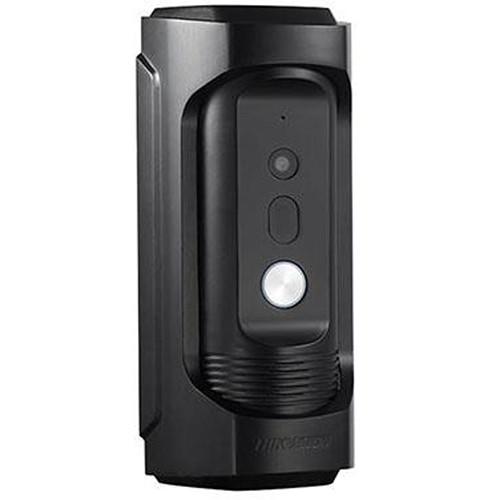

User Manual for Hikvision DS-KB8112-IM Outdoor Network Video Intercom Door Station Click to enlarge the picture
Contents of the user manual for the Hikvision DS-KB8112-IM Outdoor Network Video Intercom
- Product category: Door Stations Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Door Stations
|
User manual for the Hikvision DS-KB8112-IM Outdoor Network Video Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-KB8112-IM Outdoor Network Video Intercom Door Station from Hikvision can communicate with a master station and an indoor station to enable multiple door opening modes via access control functions. Two-way audio is possible thanks to a built-in omnidirectional microphone and speaker. Noise suppression and echo cancellation help deliver the best audio quality possible.
This door station communicates with devices in your security system over a 10/100 Mb/s self-adaptive Ethernet interface. It is equipped with a 3.47mm pinhole lens. Additionally, it can integrate with an NVR system. It is capable of sending alarm notifications and supports recording and playback on an NVR. This device is IP66 and IK09-rated for outdoor use. - Communicates with master station and indoor station
- Access control function supports multiple door modes
- Includes iVMS-4200 video management software
- Will integrate with an NVR for alarm notifications, recording, and playback
- Magnetic door alarm input
- High performance SOC Processor
- Auto-uploads captured pictures to an FTP server or the client software while unlocking the door
- Image settings include color, brightness, contrast, sharpness, saturation, video standard, and OSD display
- Event actions include motion detection, picture capturing, and call button pressing
- -50 to 50° field of view adjustment
- Fits standard U.S. single gang box for easy installation
- IP66- and IK09-rated for outdoor use
UPC: 842571105100 In the Box Hikvision DS-KB8112-IM Outdoor Network Video Intercom Door Station Wall Mounting Plate Wall Mounting Shield Screw Package Screwdriver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-KB8112-IM Outdoor Network Video Intercom Door Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-KB8112-IM Specs | | | Processor | High-performance embedded SOC processor | | Operating System | Embedded Linux OS | | | | Image Sensor | 1/3" progressive scan CMOS, color | | Day/Night | Yes | | Light Sensitivity | Low illumination | | Lens | 3.47mm pinhole lens, f/2.5 | | IR Range | 16' / 5 m | | Field of View | Horizontal: 80°
Vertical: 44° | | Field of View Adjustment | -50 to 50° | | | | Compression | H.264 | | Streaming | Dual streams | | Resolution | Main Stream: 1280 x 720
Sub-Stream: 640 x 480 | | Frame Rate | NTSC: 30 fps
PAL: 25 fps | | Bit Rate | Main Stream: 32 to 4096 kb/s
Sub-Stream: 32 to 2048 kb/s | | Anti-Flicker | 60/50 Hz | | Wide Dynamic Range | Digital WDR, auto-switch, day/on, night/off | | Image Settings | Color, brightness, contrast, sharpness, saturation, video standard, OSD | | | | Streaming | Two-way, full-duplex | | Input | Built-in omnidirectional microphone | | Output | Built-in loudspeaker | | Compression | G.711 U | | Compression Rate | 64 kb/s | | Audio Quality | Noise suppression and echo cancellation | | | | Ethernet | 10/100 Mb/s self-adaptive Ethernet | | Network Protocols | RTSP, RTP, ONVIF, ISAPI, NTP, HTTP, HTTPS, DHCP, FTP, SMTP | | Network Connection Mode | DHCP, static IP address | | Door Unlock Time | 1 to 255 seconds | | | | Input | Door magnetic alarm | | | | Network Interface | 1 x RJ45 10/100 self-adaptive Ethernet | | I/O | Input: 1
Output: 1 x relay | | | | Event Actions | Motion detection, picture capturing, call button pressing | | FTP | Yes | | Email Notification | Login succeeded via software or web | | | | Light Supplement | Light Supplement Mode: IR
IR Range: 16' / 5 m
Wavelength: 940 nm
Control: Auto On/Off, Time On/Off | | Construction Material | Wall Mounting Shield: Zinc alloy
Front Panel: Zinc alloy
Rear Panel: Aluminum alloy
Wall Mounting Plate: SECC | | Video Management Software | iVMS-4200 | | IP Rating | IP66 | | IK Rating | IK09 | | Certifications | CE, FCC, UL 60950-1 | | Power Supply | PoE
12 VDC | | Power Consumption | 12 W max | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Operating Humidity | 10 to 90% | | Dimensions (L x W x H) | 6.37 x 2.92 x 2.09" / 161.9 x 74.1 x 53.2 mm | | Weight | 1.70 lb / 773 g | | | | Package Weight | 1.97 lb | | Box Dimensions (LxWxH) | 7.1 x 3.7 x 2.6" |
