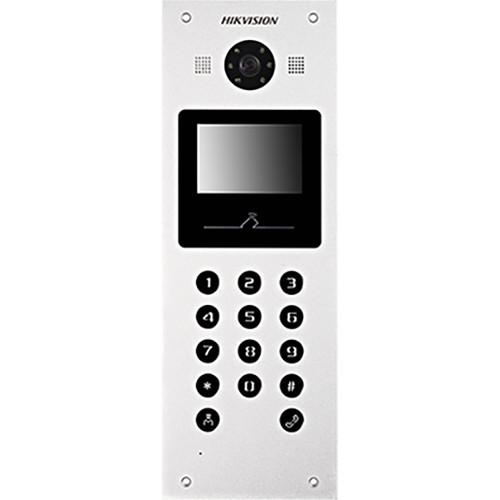

User Manual for Hikvision DS-KD3002-VM IP Video Intercom Apartment Door Station Click to enlarge the picture
Contents of the user manual for the Hikvision DS-KD3002-VM IP Video Intercom Apartment
- Product category: Door Stations Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Door Stations
|
User manual for the Hikvision DS-KD3002-VM IP Video Intercom Apartment contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor your home's entrance and go keyless with the DS-KD3002-VM IP Video Intercom Apartment Door Station from Hikvision. Featuring a built-in camera with a 1MP CMOS low-light sensor and a visible-light LED that activates during calls, this station captures the scene outside your door in a 120° field of view, both during the day and at night. The speaker and microphone built into the station allow for two-way voice communication with callers at your door.
When someone rings your doorbell, you can watch the outdoor station's video feed on an indoor station or mobile device (both available separately). After seeing and talking to your visitors, you can choose to unlock the door—even from your mobile device if you happen to be away from home. Visitors ringing your doorbell are assisted by the onscreen menu appearing on the built-in 3.5" TFT color LCD screen.
The station integrates into your access control system to grant entry to family members and authorized visitors. All they have to do when coming home is wave a Mifare card in front of the station's built-in proximity reader or enter a PIN code on a mechanical keypad. The Intercom Apartment Door Station is enclosed in an IP65-rated aluminum panel, ensuring protection from dust and water. The station is designed to be flush mounted, but can also be surface mounted via the separately available DS-KAB13-D surface wall mount with sunshield. - Built-in Mifare card reader
- Supports external card readers over Wiegand or RS-485
- Supports optional DS-K2M060 Secure Door Control Module over RS-485
- Unlock using access control card (available separately) or keypad code
- Tenants answer calls and unlock door via indoor station (required, available separately) or Hik-Connect smartphone app (optional)
- Integrates with select NVR systems
- Supports one iVMS-4200 PC client
In the Box Hikvision DS-KD3002-VM IP Video Intercom Apartment Door Station Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-KD3002-VM IP Video Intercom Apartment Door Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-KD3002-VM Specs | | | Camera | 1 MP Low-Light Camera | | Compression | H.264 | | Resolution | 1280 x 720 | | Frame Rate | PAL: 25 fps
NTSC: 30 fps | | Illumination | Built-In LED Spotlight Activates During Call | | | | LCD Display | 3.5" Color TFT | | Resolution | 480 x 320 | | Interface | Onscreen Menu | | Input | 14-Button Keypad | | | | Input | Built-In Omnidirectional Microphone | | Output | Built-In Speaker | | Compression | G.711 U | | Compression Rate | 64 kb/s | | Features | Noise Suppression, Feedback Cancellation | | | | Internal Card Reader | Built-In Mifare Reader | | External Card Reader Support | 1 x 26/34-Bit Wiegand Reader, or
1 x RS-485 Reader (Hikvision Only, Can Not Be Used Together with DS-K2M060 Secure Door Control Module) | | Maximum Cards Supported | 2500 | | Secure Module | Connection to Optional DS-K2M060 Secure Door Control Module via RS-485 (Can Not Be Used Together with RS-485 Reader) | | Door Relay | Door 1: 12 VDC, Provides up to 1 A to Lock; NO or NC
Door 2: Reserved for Future Use | | Unlock Methods | Mifare Card, Intercom, Keypad Password | | | | Inputs | 4 | | Door Contact & Exit Button | 4 x Dry Contact Inputs | | | | Network Port | 1 x RJ45 10/100/1000 Mb/s (LAN 1) | | USB | 1 x USB 2.0 Type-A, for Firmware Updates Only | | | | Managing Client | iVMS-4200 Client Software | | Indoor Station Access Amount | Up to 999 Main Indoor Stations
Indoor Stations per Tenant: Up to 1 Main and 5 Extensions | | Receiving Clients | DS-KH830X Indoor Stations
iVMS-4200 (One Client Software per DS-KD3002
Hik-Connect Smartphone App (Requires Adequate Internet Connection) | | Door Station Access Amount | 1 Main and 8 Extensions | | Dialing | Dial to Tenant by Room Number | | | | Supported Recorders | Hikvision I-Series NVRs, Turbo 3.0 & 4.0 DVRs | | Supported Firmware | NVR: V3.4.931_170913
Turbo 3.0 DVR: V3.4.85_170807
Turbo 4.0 DVR: V3.5.22_171102 | | Supported Features | Event Text Overlay, Search Playback by Intercom Event, Search Playback by Card Access Event | | | | Material | Aluminum Alloy | | Mounting | Flush Mount
Surface Mount with Optional DS-KAB13-D Wall Mount | | Power Supply | 12 VDC (Power Adapter Available Separately) | | Power Consumption | ≤15 W (1.25 A Unloaded) | | Operating Temperature | -40 to 60°F / -40 to 140°C | | Operating Humidity | 10 to 90% | | Certifications | FCC, UL 60950, IC, CE, C-TICK, ROHS, REACH, WEEE | | Ingress Protection | IP65 | | Dimensions | 14.1 x 4.9 x 2.2" / 357 x 124 x 55 mm | | Weight | Not Specified by Manufacturer |
