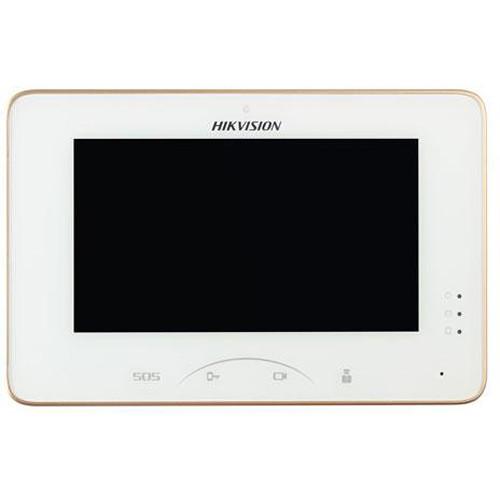

User Manual for Hikvision DS-KH8300-T 7" Indoor Color Touchscreen Video Intercom Station Click to enlarge the picture
Contents of the user manual for the Hikvision DS-KH8300-T 7" Indoor Color Touchscreen
- Product category: Indoor Stations Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Indoor Stations
|
User manual for the Hikvision DS-KH8300-T 7" Indoor Color Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-KH8300-T 7" Indoor Color Touchscreen Video Intercom Station from Hikvision allows you to see and speak to your visitors before letting them into your home. This indoor station is designed to integrate into your home's IP surveillance system. It communicates with your master station to support monitoring door stations and external cameras (available separately). The 7" capacitive touchscreen enables you to view the feed from a camera outside your door. Two-way audio is possible thanks to a built-in speaker and omnidirectional microphone. Additionally, noise suppression and echo cancellation help deliver the best possible audio quality.This device communicates with IP cameras and other devices in your home security system over a 10/100 Mbps self-adaptive Ethernet interface. An onboard TF/microSD slot supports cards up to 32GB. Cards are available for purchase separately. The eight-channel alarm input sensor offers the convenience of integrating your alarm and intercom systems. - Hands-free audiovisual communication with a door station and the master station in the intercom system
- Monitors door stations and external cameras
- Remote unlocking via the client or the app
- Automatically uploads alarm messages to the master station, the client, or the app once alarm sensor is triggered
UPC: 842571105070 In the Box Hikvision DS-KH8300-T 7" Indoor Color Touchscreen Video Intercom Station Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-KH8300-T 7" Indoor Color Touchscreen Video Intercom Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-KH8300-T Specs | | | Processor | High-performance embedded SoC processor | | Operating System | Embedded Linux | | | | Screen | 7" color TFT LCD | | Resolution | 1024 x 600 | | Operation | Capacitive touchscreen, touch key
Flattened UI operation interface | | | | Input | Built-in omnidirectional microphone | | Output | Built-in loudspeaker | | Compression | G.711 U | | Compression Rate | 64 kbps | | Quality | Noise suppression and echo cancellation | | | | Ethernet | 10/100 Mbps self-adaptive Ethernet | | Protocols | TCP/IP, RTSP | | | | Input | 8-channel alarm input sensor | | | | Network Interface | 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface | | RS-485 | 1 x RS-485 half-duplex port | | I/O | 2 | | Storage | Supports TF cards (microSD) up to 32 GB | | | | Memory | 256 MB | | Power Supply | 12/24 VDC, power over network cable (DS-KAD606, DS-KAD612) | | Power Consumption | ≤10 W | | Certifications | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Dimensions (L x W x H) | 8.5 x 5.6 x 1.0" (217 x 142 x 26 mm) | | | | Package Weight | 1.675 lb | | Box Dimensions (LxWxH) | 11.55 x 7.2 x 2.2" |
