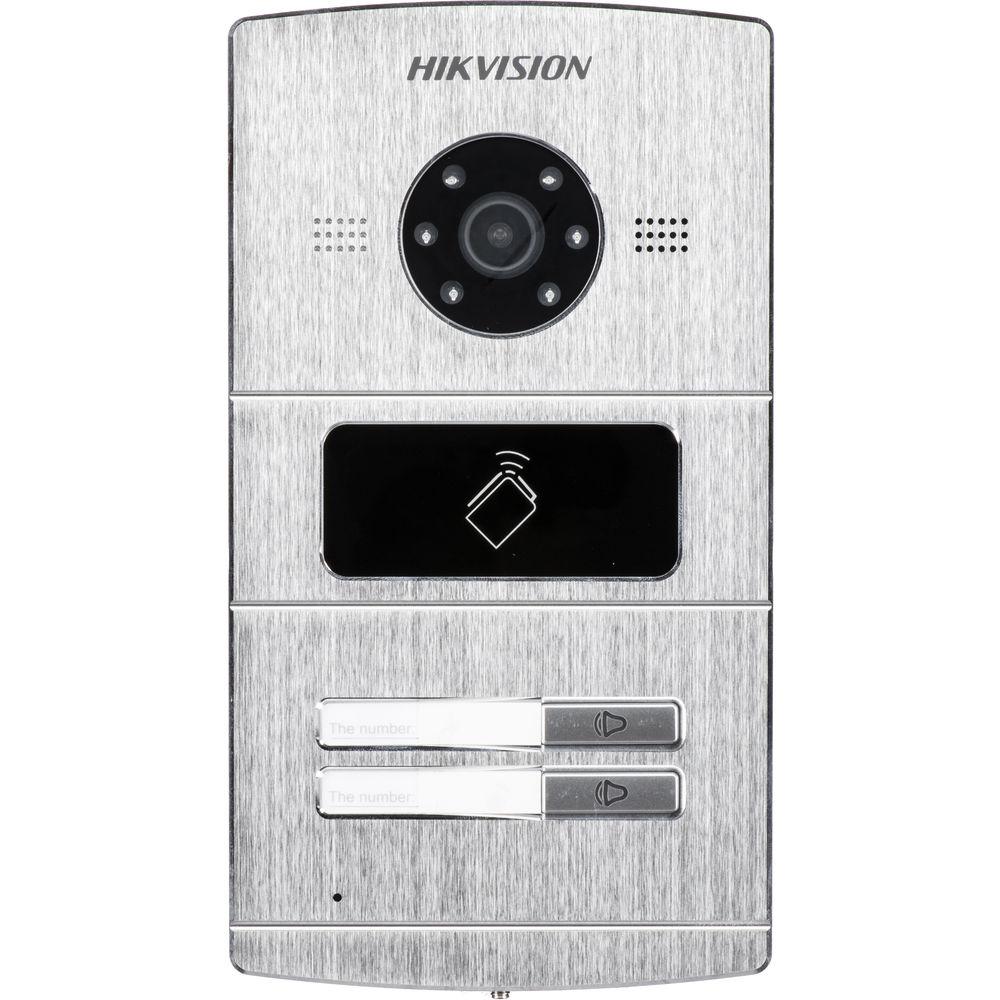

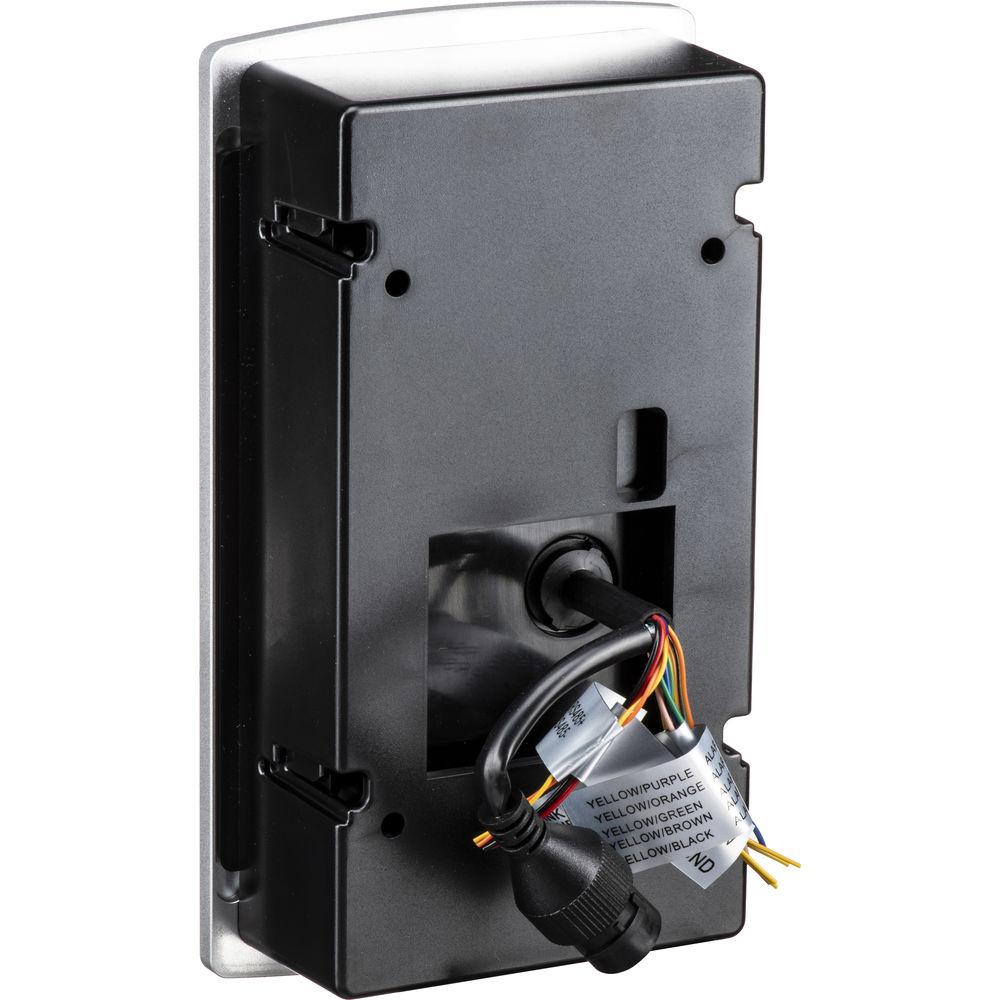

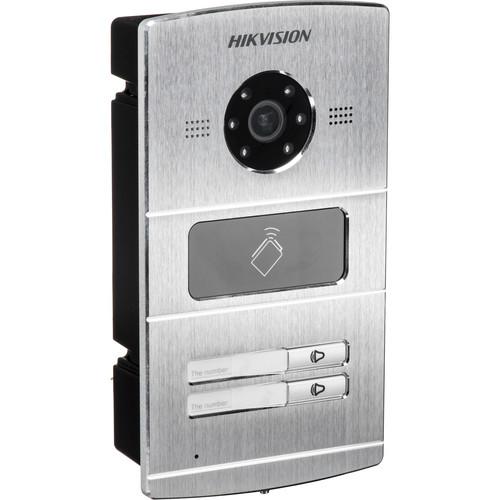

User Manual for Hikvision DS-KV8202-IM 2-Channel Outdoor Video Intercom Door Station Click to enlarge the picture
Contents of the user manual for the Hikvision DS-KV8202-IM 2-Channel Outdoor Video Intercom
- Product category: Door Stations Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Door Stations
 |
User manual for the Hikvision DS-KV8202-IM 2-Channel Outdoor Video Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-KV8202-IM 2-Channel Outdoor Video Intercom Door Station from Hikvision is designed for two-resident configurations. It allows you to see and speak to visitors before letting them into your home. A built-in card reader enables you to have full control over who has access to your premises. Two-way audio is possible thanks to a built-in speaker and omnidirectional microphone. Noise suppression and echo cancellation help deliver the best possible audio quality.
This device communicates with IP cameras and other devices in your security system over a 10/100 Mbps self-adaptive Ethernet interface. Additionally, it can integrate with an NVR system. It is capable of sending alarm notifications and supports recording and playback on an NVR. This metal door station is IP65-rated, making it suitable for outdoor use. - Magnetic door and tampering alarms
- Auto-uploads captured pictures to an FTP server or the client software while unlocking the door
- Self-adaptive supplemental IR
- Remote unlocking and call answering via the client or app
- Remote reboot and upgrade
- Supports external card readers
- Can store information on up to 256 access cards
- Time synchronization via NTP
UPC: 813908023763 In the Box Hikvision DS-KV8202-IM 2-Channel Outdoor Video Intercom Door Station Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-KV8202-IM 2-Channel Outdoor Video Intercom Door Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-KV8202-IM Specs | | | Processor | High performance embedded SoC processor | | Operating System | Embedded Linux | | | | Camera | 1.3 MP CMOS low illumination camera | | Compression | H.264 | | Resolution | 1280 x 720 | | Frame Rate | 25 fps | | Field of View | 120° | | | | Input | Built-in omnidirectional microphone | | Output | Built-in loudspeaker | | Compression | G.711 U | | Compression Rate | 64 kbps | | Audio Quality | Noise suppression and echo cancellation | | | | Internal Card Reader | Built-in IC card reader | | Exit Button | Exit button for opening the door | | Door Magnetic Detection | Detects door magnetic status | | | | Ethernet | 10/100 Mbps self-adaptive Ethernet | | Network Protocols | TCP/IP, RTSP | | | | Input | Door magnetic alarm
Tampering alarm | | | | Network Interface | 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface | | RS-485 | 1 x RS485 half-duplex port | | I/O | Input: 4
Output: 1 | | | | Light Supplement Mode | IR supplement | | Indoor Station Access Amount | 2 | | Power Supply | 12/24 VDC, power over network cable (DS-KAD606, DS-KAD612) | | Power Consumption | ≤12 W | | Operating Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | 10 to 90% | | IP Rating | IP65 | | Certifications | CE, FCC, UL 60950-1, IC, C-TICK, ROHS, REACH, WEEE | | Construction Material | Aluminum alloy | | Dimensions (L x W x H) | 7.17 x 3.94 x 1.30" (182 x 100 x 33 mm) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.0 x 5.9 x 4.3" |
