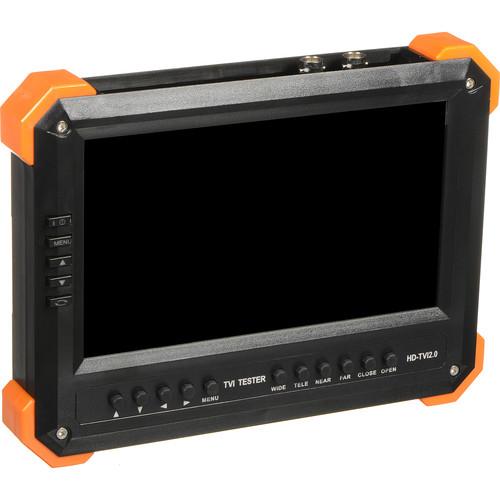

User Manual for Hikvision DS-TT-X41T 7" TFT Active Matrix LCD Test Monitor Click to enlarge the picture
Contents of the user manual for the Hikvision DS-TT-X41T 7" TFT Active Matrix
- Product category: Test Monitors Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Test Monitors
 |
User manual for the Hikvision DS-TT-X41T 7" TFT Active Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

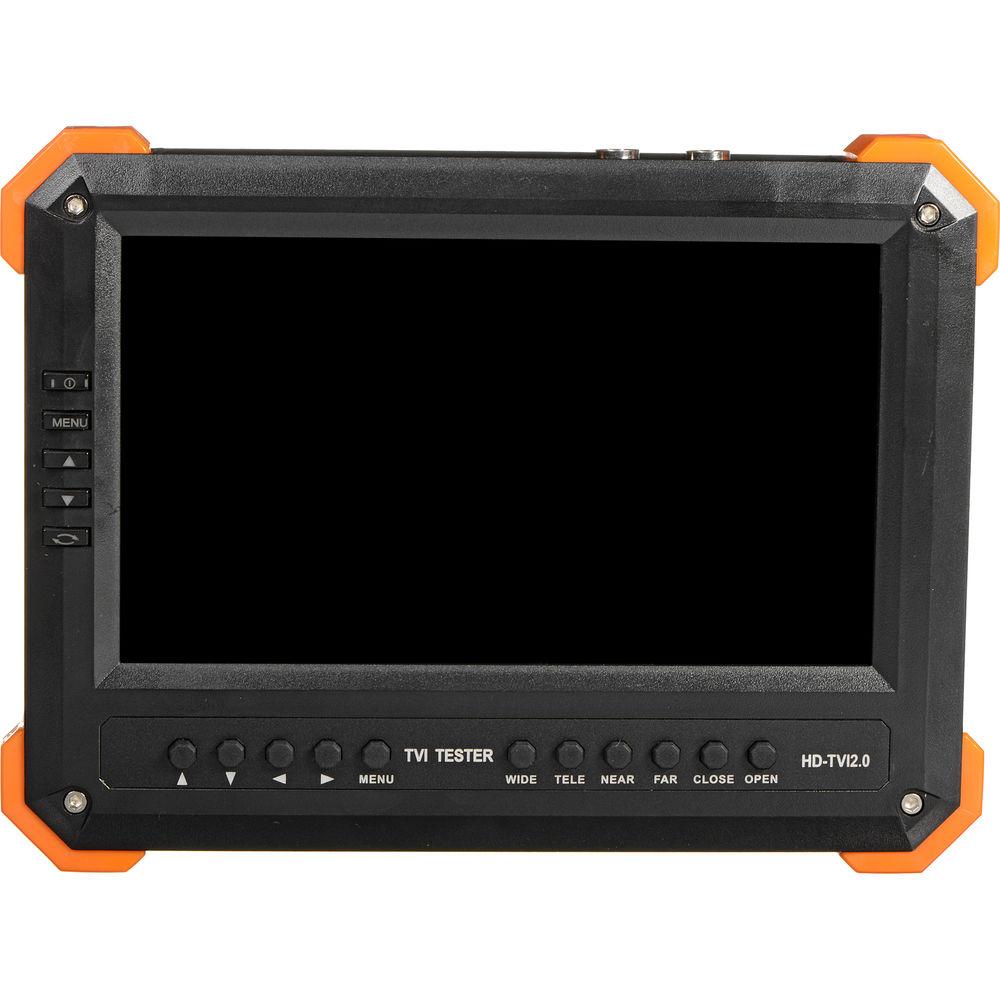

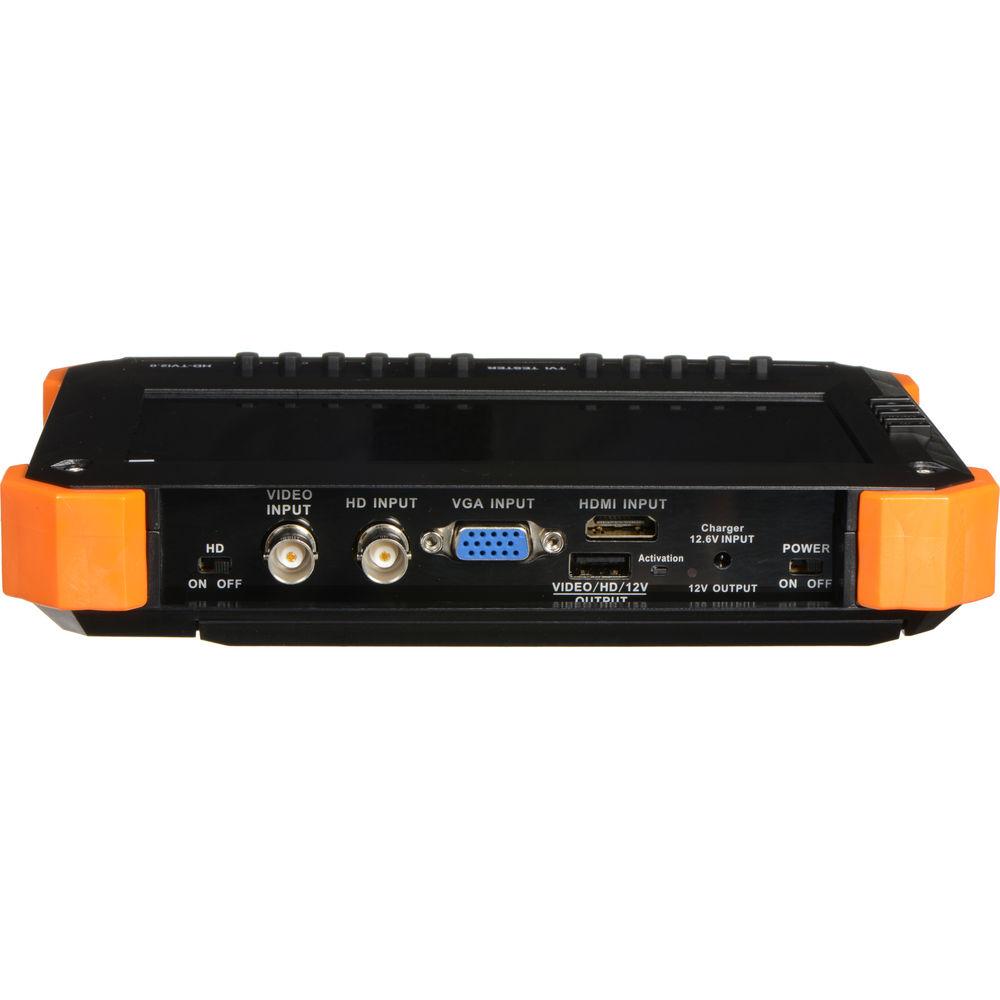

Product description The DS-TT-X41T is a 7" TFT active matrix LCD test monitor from Hikvision. It has HD-TVI 2.0, HDMI 1.0, VGA, and CVBS inputs and provides a resolution up to 1080p at 30 fps. It delivers 12 VDC output to power cameras. UTC (Up-the-Coax) technology offers control of menus for TurboHD and PTZ cameras using the Hikvision-C control protocol. This device supports NTSC, PAL, and SECAM video formats. - TurboHD (HD-TVI 2.0), HDMI 1.0, VGA, and CVBS inputs
- CVBS with PAL/NTSC/SECAM auto select
- OSD menu with UTC control
- Hikvision-C control protocol
- CVBS color bars output (or if VGA signal not present)
UPC: 813908024401 In the Box Hikvision DS-TT-X41T 7" TFT Active Matrix LCD Test Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-TT-X41T 7" TFT Active Matrix LCD Test Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-TT-X41T Specs | Display Type | TFT active matrix LCD monitor | | Screen Size | 7" / 17.8 cm | | Inputs | TurboHD (HD-TVI 2.0), HDMI 1.0, VGA, and CVBS | | Resolutions and Frame Rates | TurboHD (HD-TVI 2.0): Up to 720p at 60, 50, 30, and 25 fps
1080p at 30, 25 fps | | Video Formats | CVBS with PAL/NTSC/SECAM auto select | | OSD Menu | Yes | | UTC | Up-the Coax (UTC) control of menus for TurboHD cameras and PTZs (Hikvision-C control protocol) | | Power Output | 12 VDC, 2 A, 24 W maximum (to power cameras) | | Internal Battery | Rechargeable 18650 3-cell 2600 mA li-ion battery, 12 VDC with 6 A protection board | | Power Consumption | ≤6 W | | Charger | 12.6 VDC | | Housing Material | ABS + PC | | Dimensions | 6.1 x 8.11 x 1.53" / 155 x 206 x 3.9 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.24 lb | | Box Dimensions (LxWxH) | 11.45 x 7.75 x 2.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
