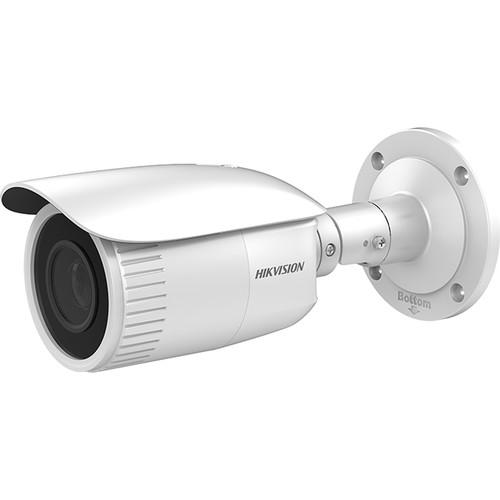

User Manual for Hikvision ECI-B64Z2 4MP Outdoor Network Bullet Camera with 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision ECI-B64Z2 4MP Outdoor Network Bullet
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
User manual for the Hikvision ECI-B64Z2 4MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
Product description Watch over your property with the ECI-B64Z2 4MP Outdoor Network Bullet Camera from Hikvision. Equipped with a 4MP CMOS sensor and a 2.8-12mm motorized varifocal lens, the ECI-B64Z2 captures video at resolutions up to 2560 x 1440 at 20 fps in a 98 to 28° field of view. The camera has an IR cut filter and EXIR 2.0 IR LEDs for night vision with an effective range of up to 100'. Image enhancement features including a 120 dB wide dynamic range, white balance, and backlight compensation enable you to capture clear images in varying lighting conditions.
Designed for easy setup, the ECI-B64Z2 uses PoE technology, enabling you to run just one wire for both data and power. Moreover, it has a microSD card slot for edge storage and is IP67 rated for weather resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
- Color images down to 0.018 lux at f/1.6 with AGC on
- EXIR 2.0 IR technology for night vision up to 100'
- IR cut filter for day and night vision
- H.265+, H.265, H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- Camera pivots from 0 to 360° horizontally and from 0 to 90° vertically
- 120 dB wide dynamic range
- 3D digital noise reduction
- PoE technology for easy, clutter-free installation
- IP67 rated for outdoor use
- TVS 2000V lightning protection, surge protection, and transient voltage protection
In the Box Hikvision ECI-B64Z2 4MP Outdoor Network Bullet Camera with 2.8-12mm Lens Limited 3-Year Warranty Table of Contents
- cSA, FCC, CE, and UL certified
Upload User Manual
Have you got an user manual for the Hikvision ECI-B64Z2 4MP Outdoor Network Bullet Camera with 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Hikvision ECI-B64Z2 Specs
| Sensor || 4 MP 1/3" CMOS |
| Focal Length || 2.8 to 12mm |
| Maximum Aperture || f/1.6 |
| Zoom || Optical: 4.3x |
| Lens Field of View || Horizontal: 98 to 28° |
Vertical: 51 to 16°
Diagonal: 115 to 32°
| IR Cut Filter || Mechanical |
| Day/Night || Yes |
| Minimum Illumination || Color: 0.018 Lux |
| Shutter Speed || 1/100,000 to 1/3 Seconds |
| Camera Angle Adjustment || Horizontal: 0 to 360° |
Vertical: 0 to 90°
| Streaming Resolution || 2560 x 1440 at 20 fps (8 Mb/s ) |
2304 x 1296 at 30 fps (8 Mb/s )
| Supported Video Compression || H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming || Yes, 2 Streams |
| Automatic Gain Control || Yes |
| Security || HTTPS, IEEE 802.1X, Password Protection, Watermark |
| Supported Protocols || Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP |
| Application Programming Interface (API) || ISAPI |
| Analytics || Motion Detection, Tamper Detection |
| Event Trigger || Yes |
| Event Action || Alarm |
| Recording Media || microSD (Up to 128 GB) |
| Pan/Tilt || None |
| I/O Connections || 1 x RJ45 |
1 x Power
| IR Illuminators || 850 nm |
| IR Range || 100' / 30.48 m |
| Video Management Software || iVMS-4200, Hik-Connect |
| Certifications || CSA, UL, as per Manufacturer |
| Internal Storage || None |
| External Storage Options || Local PC, NAS |
| Power Source || DC, PoE 802.3af (15 W) |
| Power Consumption || DC: 11 W |
PoE: 12.9 W
| Material of Construction || Metal (Unspecified Type) |
| Operating Temperature || -22 to 140°F / -30 to 60°C |
| Operating Humidity || 0 to 95% |
| IP Rating || IP67 |
| Dimensions || H: 4.1 x W: 4.1 x L: 5.7" / H: 10.4 x W: 10.4 x L: 14.5 cm |
| Weight || 2.3 lb / 1040 g |
