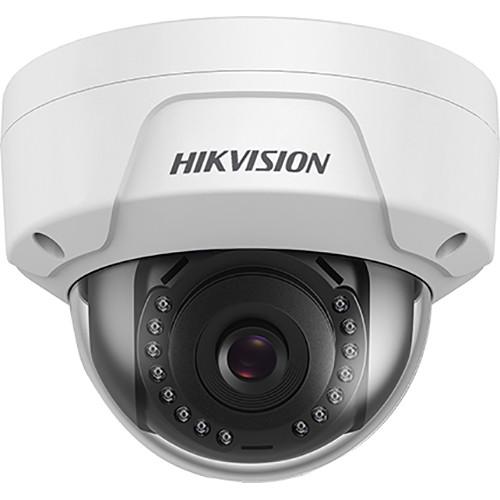

User Manual for Hikvision ECI-D12F6 2MP Outdoor Network Dome Camera with Night Vision & 6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision ECI-D12F6 2MP Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision ECI-D12F6 2MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The ECI-D12F6 2MP Outdoor Network Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 6mm fixed lens delivers a 54° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's metal enclosure is IP67 and IK10 rated for outdoor use in areas at risk of vandalism. - EXIR 2.0 technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Camera pivots horizontally from 0 to 355° and vertically from 0 to 70°
- Digital wide dynamic range
- Image settings include saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- Region of interest (ROI) for one fixed region (main stream and sub stream)
- Alarm triggers include motion detection, video tampering alarm, and illegal login
- General functions include anti-flicker, heartbeat, mirror, password protection, privacy masking, and watermark
- Up to 32 users with three host levels (admin, operator, and user)
- Up to six channels in simultaneous live view
- Compatible with Internet Explorer 7 or higher, Chrome 18 to 42, Firefox 5.0 or higher, Safari 5.02 or higher, iOS, Android, iVMS-4200, and Hik-Connect
- CSA, FCC, CE, and cUL certified
- TVS 2000V lightning, surge, and voltage transient protection
In the Box Hikvision ECI-D12F6 2MP Outdoor Network Dome Camera with Night Vision & 6mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision ECI-D12F6 2MP Outdoor Network Dome Camera with Night Vision & 6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision ECI-D12F6 Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Lens Mount | M12 | | Focal Length | 6mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 54°
Vertical: 30°
Diagonal: 62° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.028 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 70° | | | | Streaming Resolution | 1920 x 1080 at 30 fps (8 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 100' / 30.48 m | | Video Management Software | iVMS-4200, Hik-Connect | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 5 W
PoE: 7 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
