Hikvision ECI-D14F6 4MP Outdoor Network Dome

Search your instruction manual in PDF to download

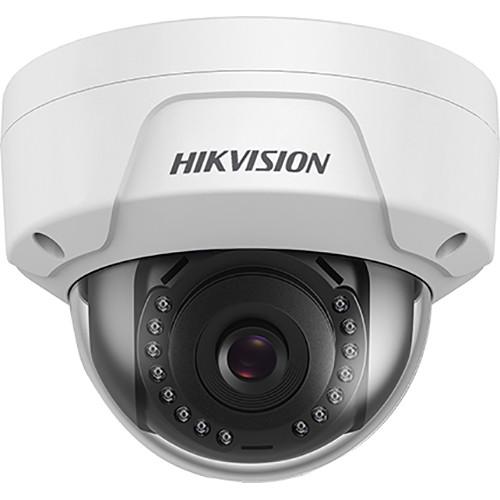

User Manual for Hikvision ECI-D14F6 4MP Outdoor Network Dome Camera with Night Vision & 6mm Lens

Click to enlarge the picture
Hikvision ECI-D14F6 4MP Outdoor Network Dome Camera with Night Vision & 6mm Lens Contents of the user manual for the Hikvision ECI-D14F6 4MP Outdoor Network Dome
  • Product category: Wired IP Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired IP Cameras

User manual for the Hikvision ECI-D14F6 4MP Outdoor Network Dome contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

Watch over your property with the ECI-D14F6 4MP Outdoor Network Dome Camera with Night Vision from Hikvision. Equipped with a 4MP CMOS sensor and a 6mm fixed lens, the ECI-D14F6 captures video at resolutions up to 2560 x 1440 at 20 fps in a 52 x 29° field of view. The camera has an IR cut filter and EXIR 2.0 IR LEDs for night vision with an effective range of up to 100'. Image enhancement features including a 120 dB wide dynamic range, white balance, and backlight compensation enable you to capture clear images in varying lighting conditions.

Designed for easy setup, the ECI-D14F6 uses PoE technology, enabling you to run just one wire for both data and power. Moreover, it is IP67 rated for weather resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
  • Color images down to 0.15 lux at f/2.0 with AGC on
  • EXIR 2.0 IR technology for night vision up to 100'
  • IR cut filter for day and night vision
  • H.265+, H.265, H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use
  • Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically
  • 120 dB wide dynamic range
  • Automatic gain control
  • Backlight compensation
  • 3D digital noise reduction
  • Mirroring
  • Privacy masking
  • Password protection
  • PoE technology for easy, clutter-free installation
  • IP67 rated for outdoor use
  • Durable metal housing
  • cSA, FCC, CE, and UL certified
In the Box Hikvision ECI-D14F6 4MP Outdoor Network Dome Camera with Night Vision & 6mm Lens
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision ECI-D14F6 4MP Outdoor Network Dome Camera with Night Vision & 6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision ECI-D14F6 Specs

    Sensor 4 MP 1/3" CMOS
    Lens Mount M12
    Focal Length 6mm
    Maximum Aperture f/2
    Lens Field of View Horizontal: 52°
    Vertical: 29°
    Diagonal: 63°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.15 Lux
    B&W: 0 Lux
    Shutter Speed 1/100,000 to 1/3 Seconds
    Camera Angle Adjustment Horizontal: 0 to 355°
    Vertical: 0 to 75°
    Streaming Resolution 2560 x 1440 at 20 fps (16 Mb/s )
    2304 x 1296 at 30 fps (16 Mb/s )
    Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
    Multi-View Streaming Yes, 2 Streams
    Automatic Gain Control Yes
    Security HTTPS, IEEE 802.1X, Password Protection, Watermark
    Supported Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP
    Application Programming Interface (API) ISAPI
    Analytics Motion Detection, Tamper Detection
    Event Trigger Yes
    Event Action Recording, Alarm
    Recording Media None
    Pan/Tilt None
    I/O Connections 1 x RJ45
    1 x Power
    IR Illuminators 850 nm
    IR Range 100' / 30.48 m
    Video Management Software iVMS-4200, Hik-Connect
    Certifications CSA, UL, as per Manufacturer
    Internal Storage None
    External Storage Options NAS
    Power Source DC, PoE 802.3af (15 W)
    Power Consumption DC: 5.5 W
    PoE: 7 W
    Material of Construction Metal (Unspecified Type)
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity 0 to 95%
    IP Rating IP67
    Dimensions
