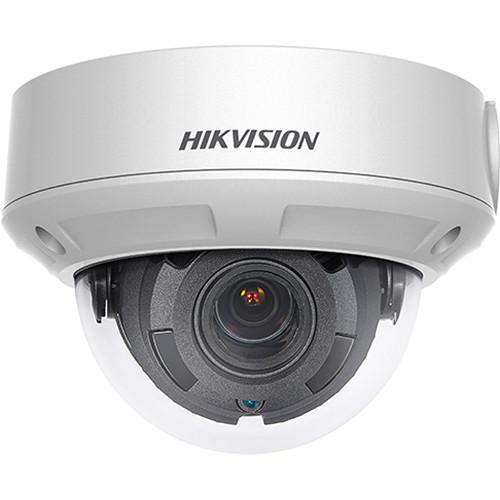

User Manual for Hikvision ECI-D64Z2 4MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision ECI-D64Z2 4MP Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision ECI-D64Z2 4MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The ECI-D64Z2 4MP Outdoor Network Dome Camera from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 20 fps. IR LEDs provide up to 100' of low-light illumination. The camera's 2.8-12mm motorized varifocal lens delivers a 98 to 28° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - EXIR 2.0 technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Camera pivots horizontally from 0 to 355° and vertically from 0 to 70°
- 120 dB wide dynamic range
- Image settings include saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- Region of interest for one fixed region (main stream and sub stream)
- Alarm triggers include motion detection, video tampering alarm, network disconnected, IP address conflict, and illegal login
- General functions include one-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masking, and watermark
- Up to thirty-two users with three host levels (admin, operator, and user)
- Up to six channels in simultaneous live view
- Compatible with Internet Explorer 8 or higher, Chrome 31 to 44, Firefox 30.0 to 51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
- TVS 2000V lightning, surge, and voltage transient protection
UPC: 842571118414 In the Box Hikvision ECI-D64Z2 4MP Outdoor Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision ECI-D64Z2 4MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision ECI-D64Z2 Specs | | | Sensor | 4 MP 1/3" CMOS | | Lens Mount | M14 | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 98 to 28°
Vertical: 51 to 16°
Diagonal: 116 to 32° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.018 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 70° | | | | Streaming Resolution | 2560 x 1440 at 20 fps (8 Mb/s )
2304 x 1296 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 100' / 30.48 m | | Video Management Software | iVMS-4200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 10 W
PoE: 12 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
