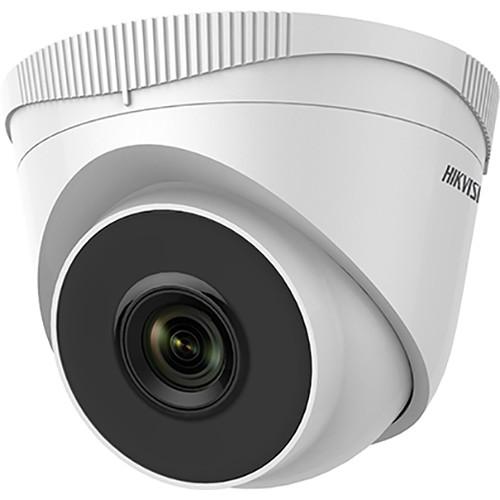

User Manual for Hikvision ECI-T24F4 4MP Outdoor Network Turret Camera with Night Vision & 4mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision ECI-T24F4 4MP Outdoor Network Turret
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision ECI-T24F4 4MP Outdoor Network Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The ECI-T24F4 from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at up to 20 fps. IR LEDs provide up to 65' of night vision. The 4mm fixed lens delivers a 77° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This turret camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - IR cut filter enables day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compression
- Camera pivots horizontally from 0 to 360° & vertically from 0 to 75°
- 120 dB wide dynamic range
- Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- General functions include anti-flicker, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering
- ROI (region of interest) for one fixed region (main stream and sub stream)
- Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, and illegal login
- 100M self-adaptive Ethernet port
- Network-attached storage (NAS) support
- Simultaneous live view for up to 6 channels
- Up to 32 users at 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer 8 or higher, Chrome 31-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect
- CSA, FCC, CE, and cUL certified
UPC: 842571119572 In the Box Hikvision ECI-T24F4 4MP Outdoor Network Turret Camera with Night Vision & 4mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision ECI-T24F4 4MP Outdoor Network Turret Camera with Night Vision & 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision ECI-T24F4 Specs | | | Sensor | 4 MP 1/3" CMOS | | Lens Mount | M12 | | Focal Length | 4mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 77°
Vertical: 42°
Diagonal: 90° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.03 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 75° | | | | Streaming Resolution | 2560 x 1440 at 20 fps (16 Mb/s )
2304 x 1296 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & P, ISAPI | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 65' / 19.81 m | | Video Management Software | iVMS-4200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 5 W
PoE: 6.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions |
