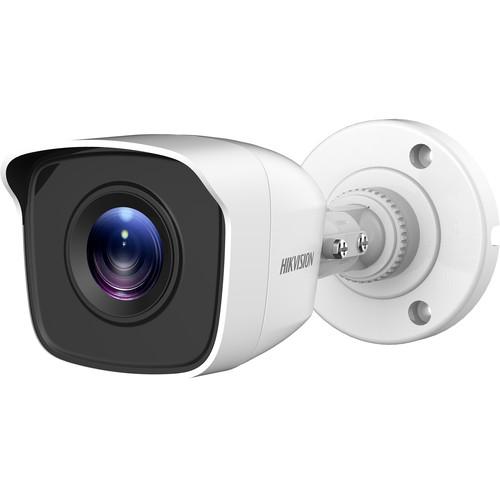

User Manual for Hikvision ECT-B12F3 TurboHD 2MP Outdoor Analog HD Bullet Camera with Night Vision and 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision ECT-B12F3 TurboHD 2MP Outdoor Analog
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision ECT-B12F3 TurboHD 2MP Outdoor Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The ECT-B12F3 TurboHD 2MP Outdoor Analog HD Bullet Camera from Hikvision uses a 2MP CMOS image sensor to transmit 1920 x 1080 resolution video at up to 30 fps. EXIR 2.0 technology provides up to 65' of night vision. The camera's 3.6mm fixed lens delivers a 70.9° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported.
This bullet camera is housed in an IP66-rated metal enclosure that is suitable for outdoor use. - EXIR 2.0 technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- CSA, FCC, CE, and cUL certified
In the Box Hikvision ECT-B12F3 TurboHD 2MP Outdoor Analog HD Bullet Camera with Night Vision and 3.6mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision ECT-B12F3 TurboHD 2MP Outdoor Analog HD Bullet Camera with Night Vision and 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision ECT-B12F3 Specs | Image Sensor | 2 MP CMOS Image Sensor | | Signal System | NTSC | | Effective Pixels (H x V) | 1920 x 1080 | | Minimum Illumination | Color: 0.01 Lux at f/1.2 with AGC
B&W: 0 Lux with IR | | Shutter Speed | 1/50,000 to 1/25 (1/30) Seconds | | Lens | 3.6mm | | Field of View | Horizontal: 70.9° | | Lens Mount | M12 | | Day/Night | IR Cut Filter | | IR Range | 65' / 20 m | | Synchronization | Internal | | Video Frame Rate | 1920 x 1080 at 30 fps
1920 x 1080 at 25 fps | | S/N Ratio | >62 dB | | Video Output | 1 x Analog HD Output | | Switch Button | HD-TVI, AHD, HD-CVI, CVBS | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | ≤90% (Non-Condensing) | | Power Supply | 12 VDC ±25% | | Power Consumption | Maximum 4 W | | IP Rating | IP66 | | Material | Metal | | Dimensions | 6.5 x 2.44 x 2.28" / 165 x 62 x 58 mm | | Weight | 0.88 lb / 400 g |
