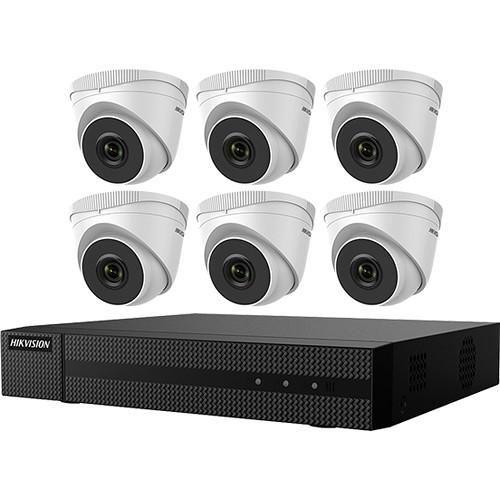

Hikvision EKI-Q82T46 8-Channel 4MP NVR with

User Manual for Hikvision EKI-Q82T46 8-Channel 4MP NVR with 2TB HDD & 6 4MP Night Vision Turret Cameras Kit

• Product category: Surveillance Systems Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Surveillance Systems

Product description

• ERI-Q108-P8 Value Express 8-Channel 4MP PoE NVR with 2TB HDD Stream and record up to eight video channels with the ERI-Q108-P8 Value Express PoE NVR from Hikvision at resolutions up to 4MP. Equipped with one SATA interface, this NVR can accommodate up to 6TB of internal HDD storage (2TB preinstalled). Eight PoE ports can each transfer data and power over a single cable, simplifying connectivity. With the help of H.265+, H.265, H.264+, H.264, and MPEG-4 compression, file sizes are kept manageable while recording and playback quality are maintained. The NVR has HDMI and VGA interfaces and can output up to 4K UHD resolution video.
  • H.265+, H.265, H.264+, H.264, and MPEG-4 encoding
  • Full-channel recording at up to 4MP
  • Plug and play with up to eight independent PoE cameras
  • HDMI and VGA output ports
  • Up to 4K UHD (3840 x 2160) output resolution
  • Eight-channel synchronous playback
  • Supported analytics include Smart Search, Smart Playback, basic line crossing, and intrusion detection
  • 2 x USB 2.0 ports
  • CSA, FCC, CE, and cUL certified
  UPC: 842571115611
• ECI-T24F2 4MP Outdoor Network Turret Camera with Night Vision & 2.8mm Lens The ECI-T24F2 from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at up to 20 fps. IR LEDs provide up to 65' of night vision. The 2.8mm fixed lens delivers a 100° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

  This turret camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
  • IR cut filter enables day and night functionality
  • H.265+, H.265, H.264+, H.264, and MJPEG video compression
  • Slow shutter support
  • Camera pivots horizontally from 0 to 360° & vertically from 0 to 75°
  • 0 to 360° rotation
  • 3D-DNR
  • Backlight compensation
  • 120 dB wide dynamic range
  • Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
  • General functions include anti-flicker, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering
  • ROI (region of interest) for one fixed region (main stream and sub stream)
  • Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, and illegal login
  • 100M self-adaptive Ethernet port
  • Network-attached storage (NAS) support
  • Simultaneous live view for up to 6 channels
  • Up to 32 users at 3 host levels (admin, operator, and user)
  • Compatible with Internet Explorer 8 or higher, Chrome 31-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect
  • CSA, FCC, CE, and cUL certified
  UPC: 842571119565

• Limited 3-Year Warranty

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ERI-Q108-P8 Value Express 8-Channel 4MP PoE NVR with 2TB HDD

  Channels	8
  Resolution	Up to 4 MP

  Input Bandwidth	60 Mb/s
  Output Bandwidth	60 Mb/s

  Recording Resolutions	4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
  HDMI/VGA Output	1 channel
  Output Resolutions	4K UHD (3840 x 2160) at 30 Hz; 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, and 1024 x 768 at 60 Hz

  Decoding Formats	H.265+, H.265, H.264+, H.264, MPEG-4
  Live View / Playback Resolutions	4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
  Synchronous Playback	8 channels
  Capability	4 channels at 1080p

  Network Protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, and UPnP

  SATA	1 x SATA interface
  Capacity	Up to 6 TB 2 TB preinstalled

  Network Interface	1 x RJ45, 10M/100M self-adaptive Ethernet port
  USB Interface	2 x USB 2.0

  PoE Interface	810/100 Mb/s self-adaptive RJ45 ports
  Power	≤75 W
  PoE Standard	IEEE 802.3af/at

  Power Supply	48 VDC
  Power	≤90 W
  Power Consumption	Without HDDs: ≤10 W
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	10 to 90%
  Rack Height	1 RU
  Dimensions	10.2 x 8.9 x 1.9" / 260 x 225 x 48 cm
  Weight	2.2 lb / 1 kg, without HDD

  Box Dimensions (LxWxH)	15.8 x 10.9 x 3.2"

• ECI-T24F2 4MP Outdoor Network Turret Camera with Night Vision & 2.8mm Lens

  Sensor	4 MP 1/3" CMOS
  Lens Mount	M12
  Focal Length	2.8mm
  Maximum Aperture	f/2
  Lens Field of View	Horizontal: 100° Vertical: 55° Diagonal: 117°
  IR Cut Filter	Mechanical
  Day/Night	Yes
  Minimum Illumination	Color: 0.03 Lux B&W: 0 Lux
  Shutter Speed	1/100,000 to 1/3 Seconds
  Camera Angle Adjustment	Horizontal: 0 to 360° Vertical: 0 to 75°

  Streaming Resolution	2560 x 1440 at 20 fps (16 Mb/s ) 2304 x 1296 at 30 fps
  Supported Video Compression	H.264, H.264+, H.265, H.265+, MJPEG
  Multi-View Streaming	Yes, 2 Streams
  Automatic Gain Control	Yes

  Security	HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
  Supported Protocols	Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP

  Application Programming Interface (API)	ONVIF Profiles S & P, ISAPI
  Analytics	Motion Detection
  Event Trigger	Yes
  Event Action	Recording, Notification, Alarm
  Data Streaming	Yes

  Mobile Operating Systems	iOS, Android

  Recording Media	None
  Pan/Tilt	None
  I/O Connections	1 x RJ45 1 x Power
  IR Illuminators	850 nm
  IR Range	65' / 19.81 m
  Video Management Software	iVMS-4200, Hik-Connect
  Internal Storage	None
  External Storage Options	NAS
  Power Source	DC, PoE 802.3af (15 W)
  Power Consumption	DC: 5 W PoE: 6.5 W
  Material of Construction	Metal (Unspecified Type)
  Operating Temperature	-22 to 140°F / -30 to 60°C
  Operating Humidity	0 to 95%
  IP Rating	IP67
