User Manual for Hikvision EPI-4215I-DE 2MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision EPI-4215I-DE 2MP Outdoor PTZ Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision EPI-4215I-DE 2MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

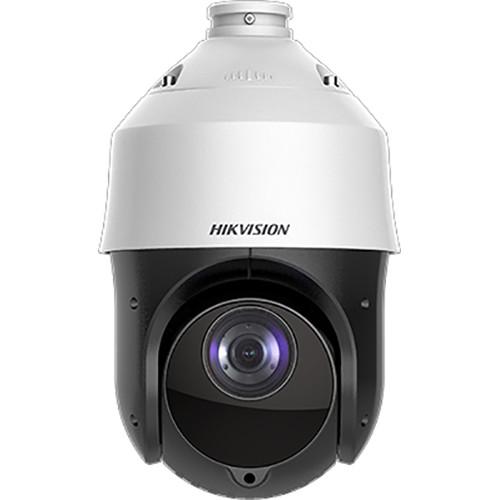

Product description Keep a close watch on your property with the EPI-4215I-DE 2MP Outdoor PTZ Network Dome Camera with Night Vision from Hikvision. Equipped with a 2MP CMOS sensor and a 5-75mm varifocal lens, the camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 53.8 to 4.0° field of view. The camera has an IR cut filter and IR LEDs for night vision with an effective range of up to 330'. Image enhancement features including a 120 dB wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.
This camera has PTZ functionality, with 360° endless pan, 105° tilt, and 15x optical zoom. Moreover, it has a microSD card slot for edge storage, and is housed in an IP66-rated weather-resistant enclosure. PoE+ technology simplifies setup by enabling you to run just one cable for both data and power, while ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.005 lux at f/1.6 with AGC on
- Smart IR technology for night vision up to 330'
- IR cut filter for day and night vision
- 5-75mm 15x varifocal lens with autofocus
- 360° endless pan and 105° tilt
- H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use
- 120 dB wide dynamic range
- Backlight/highlight compensation
- 3D digital noise reduction
- Electronic image stabilization
- 24 programmable privacy masking zones
- Video analytics including motion detection, tamper detection, exception detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, and unattended baggage detection
- microSD card slot for edge storage supports up to 256GB (microSD card available separately)
- Runs on 12 VDC power or PoE+
- TVS 4000V lightning protection, surge protection, and transient voltage protection
- cSA, FCC, CE, and UL certified
In the Box Hikvision EPI-4215I-DE 2MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision EPI-4215I-DE 2MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision EPI-4215I-DE Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 5 to 75mm | | Maximum Aperture | f/1.6 - f/3 | | Zoom | Optical: 15x
Digital: 16x | | Lens Field of View | Horizontal: 53.8 to 4.0°
Vertical: 31.9 to 2.3°
Diagonal: 60.4 to 4.6° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps (16.4 Mb/s ) | | Supported Video Compression | H.264, H.264+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ISAPI, CGI, Hikvision SDK | | Analytics | Motion Detection, Tamper Detection, Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection | | Event Trigger | Yes | | Event Action | Recording | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Programmed Pan: 360° at 80°/s
Programmed Tilt: 105° (-15 to 90°) at 80°/s | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 330' / 100.58 m | | Video Management Software | iVMS-4200, iVMS-4500, Hik-Connect | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | 18 W | | Material of Construction | Aluminum, Fiberglass, Polymer | | Operating Temperature | -22 to 149°F / -30 to 65°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions |
