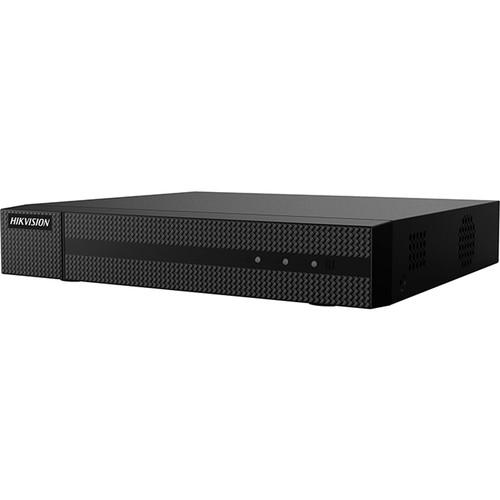

User Manual for Hikvision ERI-Q108-P8 Value Express 8-Channel 4MP PoE NVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision ERI-Q108-P8 Value Express 8-Channel 4MP
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision ERI-Q108-P8 Value Express 8-Channel 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to eight video channels with the ERI-Q108-P8 Value Express PoE NVR from Hikvision at resolutions up to 4MP. Equipped with one SATA interface, this NVR can accommodate up to 6TB of internal HDD storage (2TB preinstalled). Eight PoE ports can each transfer data and power over a single cable, simplifying connectivity. With the help of H.265+, H.265, H.264+, H.264, and MPEG-4 compression, file sizes are kept manageable while recording and playback quality are maintained. The NVR has HDMI and VGA interfaces and can output up to 4K UHD resolution video. - H.265+, H.265, H.264+, H.264, and MPEG-4 encoding
- Full-channel recording at up to 4MP
- Plug and play with up to eight independent PoE cameras
- HDMI and VGA output ports
- Up to 4K UHD (3840 x 2160) output resolution
- Eight-channel synchronous playback
- Supported analytics include Smart Search, Smart Playback, basic line crossing, and intrusion detection
- CSA, FCC, CE, and cUL certified
UPC: 842571115611 In the Box Hikvision ERI-Q108-P8 Value Express 8-Channel 4MP PoE NVR with 2TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision ERI-Q108-P8 Value Express 8-Channel 4MP PoE NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision ERI-Q108-P82 Specs | | | Channels | 8 | | Resolution | Up to 4 MP | | | | Input Bandwidth | 60 Mb/s | | Output Bandwidth | 60 Mb/s | | | | Recording Resolutions | 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF | | HDMI/VGA Output | 1 channel | | Output Resolutions | 4K UHD (3840 x 2160) at 30 Hz; 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, and 1024 x 768 at 60 Hz | | | | Decoding Formats | H.265+, H.265, H.264+, H.264, MPEG-4 | | Live View / Playback Resolutions | 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF | | Synchronous Playback | 8 channels | | Capability | 4 channels at 1080p | | | | Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, and UPnP | | | | SATA | 1 x SATA interface | | Capacity | Up to 6 TB
2 TB preinstalled | | | | Network Interface | 1 x RJ45, 10M/100M self-adaptive Ethernet port | | USB Interface | 2 x USB 2.0 | | | | PoE Interface | 810/100 Mb/s self-adaptive RJ45 ports | | Power | ≤75 W | | PoE Standard | IEEE 802.3af/at | | | | Power Supply | 48 VDC | | Power | ≤90 W | | Power Consumption | Without HDDs: ≤10 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Rack Height | 1 RU | | Dimensions | 10.2 x 8.9 x 1.9" / 260 x 225 x 48 cm | | Weight | 2.2 lb / 1 kg, without HDD | | | | Package Weight | 5.505 lb | | Box Dimensions (LxWxH) | 15.8 x 10.9 x 3.2" |
