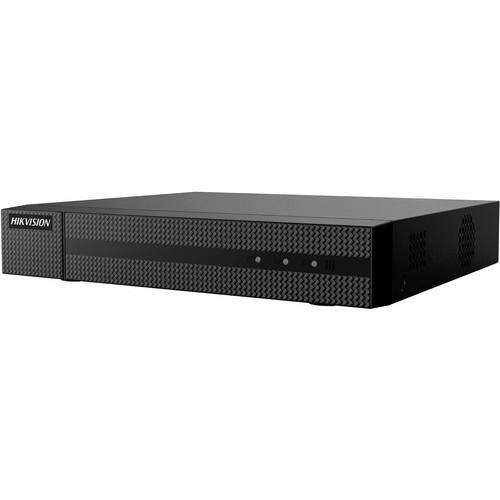

User Manual for Hikvision ERT-F208 Value Express TurboHD 8-Channel 2MP Analog HD DVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision ERT-F208 Value Express TurboHD 8-Channel
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision ERT-F208 Value Express TurboHD 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to eight video channels with the ERT-F208 Value Express TurboHD Analog HD DVR from Hikvision at resolutions of up to 2MP. Equipped with one SATA interface, this DVR can accommodate up to 4TB of internal HDD storage (4TB preinstalled). The recorder supports TurboHD, AHD, HD-CVI, and SD analog cameras via its BNC interface. Additionally, it has a two-channel IP video input for IP cameras up to 1080p. With the help of H.264+ and H.264 compression, file sizes are kept manageable while recording and playback quality are maintained.
The DVR's connectivity interface includes a 10/100M self-adaptive Ethernet port and two USB 2.0 ports, as well as HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI and VGA connections can output up to 1920 x 1080 resolution video. - H.264+ and H.264 main stream encoding
- HDMI and VGA output up to 1920 x 1080
- Long-distance transmission over UTP and coaxial cable
- Eight-channel synchronous playback
- Supports IP cameras up to 1080p
- Basic analytics including Smart Search and Video Quality Diagnostics (VQD)
- CSA, FCC, CE, and cUL certified
In the Box Hikvision ERT-F208 Value Express TurboHD 8-Channel 2MP Analog HD DVR with 4TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision ERT-F208 Value Express TurboHD 8-Channel 2MP Analog HD DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision ERT-F208 Specs | | | Video Compression | H.264+ and H.264 | | Analog Video Input | 8 x BNC (1 V p-p, 75 Ohms), supporting Hikvision-C UTC protocol | | TurboHD Input | 1920 x 1080 at 30/25 fps, 1280 x 720 at 60/50/30/25 fps | | AHD Input | 1920 x 1080 at 30/25 fps, 1280 x 720 at 30/25 fps | | HD-CVI Input | 1920 x 1080 at 30/25 fps, 1280 x 720 at 30/25 fps | | CVBS Input | Supported | | IP Video Input | 2 channels
Up to 1080p resolution | | Audio Compression | G.711u | | Audio Input | 1 x RCA (2 V p-p, 1 kOhm) | | | | HDMI Output | 1 channel
Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | VGA Output | 1 channel
Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | Encoding Resolutions | 1080p, 720p, WD1, 4CIF, VGA, and CIF | | Frame Rate | Main Stream
For 1080p Stream Access: 1080p/720p at 12 fps, VGA/WD1/4CIF/CIF at 30 fps
For 720p Stream Access: 720p/VGA/WD1/4CIF/CIF at 30 fps
Sub-Stream
WD1/4CIF/2CIF at 12 fps, CIF/QVGA/QCIF at 30 fps | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 1 x RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video and audio | | Synchronous Playback | 8 channels | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF | | | | SATA | 1 x SATA interface | | Capacity | Up to 4 TB capacity
4 TB preinstalled | | | | Network Interface | 1 x RJ45, 10M/100M self-adaptive Ethernet interface | | USB Interface | Rear Panel: 2 x USB 2.0 | | | | Power Supply | 12 VDC | | Power Consumption | Without HDDs: ≤12 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 10.2 x 8.7 x 1.8" / 26.0 x 22.2 x 4.5 cm | | Weight | ≤2.2 lb / 1 kg, without HDDs |
