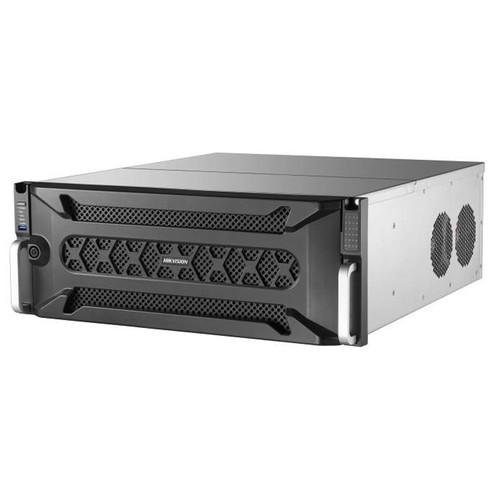

User Manual for Hikvision H-Series 128-Channel 12MP NVR Click to enlarge the picture
Contents of the user manual for the Hikvision H-Series 128-Channel 12MP NVR
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision H-Series 128-Channel 12MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to 128 channels of video with this H-Series NVR from Hikvision at resolutions up to 12MP. Equipped with 24 SATA ports, each supporting an HDD up to 8TB, the NVR can be configured to have up to 192TB of internal storage (HDDs available separately). External storage options include PCs via Internet connection, network servers, USB storage devices, and eSATA devices. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.265, H.265+, H.264, H.264+, MPEG-4, and MJPEG compression.
The NVR enables simultaneous playback of up to 16 channels via one VGA and two independent HDMI ports, at resolutions up to 4096 x 2160. Up to 128 channels can be simultaneously recorded at 12MP, 8MP, 7MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, 4CIF, DCIF, 2CIF, CIF, or QCIF resolution with a maximum combined transfer speed of 768 Mbps. The NVR is equipped with RCA connectors for bi-directional audio, an alarm interface of 16 inputs & 8 outputs, and RS-485 & RS-232 serial interfaces. - Pluggable HDD design facilitates HDD installation and maintenance
- Dual-OS design ensures system reliability
- Supports redundant power supplies (available separately) to improve system stability
- ANR technology enhances storage reliability when network is disconnected
- Supports HDD hot-swap with RAID 0, 1, 5, 6, and 10 storage configurations
- Supports standard and N+1 hot spare HDD configurations
- Supports external-interface extension board (available separately)
- Compatible with third-party network cameras from brands such as ACTi, Arecont, Axis Communications, Bosch, Brickcom, Canon, Panasonic, Pelco, Samsung, Sanyo, Sony, Vivotek, and ZAVIO
- Centralized management of IP cameras including configuration, information import/export, real-time information display, two-way audio, and upgrade
- VCA search for face detection, behavior analysis, people counting, and heat map
- Supports recording with one key
- Instant playback for assigned channel during multi-channel display mode
- Smart search for selected area in video and smart playback improve playback efficiency
- Supports HDD quota and group modes – different capacities can be assigned to different channels
UPC: 842571100594 In the Box Hikvision H-Series 128-Channel 12MP NVR Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision H-Series 128-Channel 12MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-96128NI Specs | | | IP Video Inputs | 128 channels | | Bandwidth | Incoming: 768 Mbps
Outgoing: 512 Mbps | | Protocols | Hikvision, ACTi, Arecont, Axis Communications, Bosch, Brickcom, Canon, Hunt, ONVIF (Version 2.5), Panasonic, Pelco, PSIA, RTSP, Samsung, Sony, Vivotek, ZAVIO | | HDMI Output | 2 x HDMI outputs
Resolution: DCI 4K (4096 x 2160), 4K UHD (3840 x 2160) at 30 Hz, 2K (2560 x 1440)
60 Hz, 1080p (1920 x 1080), UXGA (1600 x 1200), SXGA (1280 x 1024), 720p (1280 x 720), XGA (1024 x 768) at 60 Hz | | VGA Output | 1 x VGA output
Resolution: 1080p (1920 x 1080), UXGA (1600 x 1200), SXGA (1280 x 1024), 720p (1280 x 720), XGA (1024 x 768) at 60 Hz | | Audio Output | RCA, 1 channel (2.0 V p-p, 1 kOhm) | | Decoding Formats | H.265, H.265+, H.264, H.264+, MPEG-4, MJPEG (for Hikvision IP cameras only) | | Recording Resolution | 12 MP / 8 MP / 7 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | | Synchronous Playback | Up to 16 channels | | Decoding | Capability: 20 channels at 1080p | | | | Interface | 24 x SATA interfaces supporting hot-plug | | Capacity | Up to 8 TB for each HDD (HDDs available separately) | | | | Supported RAID Type | RAID 0, 1, 5, 6, 10 | | | | Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS | | Network Interface | 4 x RJ45 10M/100M/1000M self-adaptive Ethernet interface | | | | Two-Way Audio Input | RCA, 1 channel (2.0 V p-p, 1 kOhm) | | Serial Ports | 1 x RS-485
1 x RS-232
1 x keyboard | | eSATA | 1 x eSATA port | | USB Interface | Front Panel: 1 x USB 2.0
Rear Panel: 2 x USB 3.0 | | Alarm | 16 x inputs
8 x outputs | | Decoding | 1 x decoding board | | | | HDMI | 6 x outputs
1 x input | | HDMI Output Resolutions | 4K (3840 x 2160) at 30 Hz
4K (3840 x 2160), 2K (2560 x 1440), 1080p (1920 x 1080), SXGA (1280 x 1024), 720p (1280 x 720), XGA (1024 x 768) at 60 Hz | | HDMI Input Resolutions | 1080p (1920 x 1080), SXGA (1280 x 1024), 720p (1280 x 720), XGA (1024 x 768) | | Decoding | Capacity: 48 channels at 1080p
Resolution: 12 MP / 8 MP / 7 MP / 6 MP / 5 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIG / DCIF / 2CIF / CIF / QCIF | | Functions | Collage, auto-switch, open window, layer overlay, window roaming, and display local signal source on video wall | | | | Power Supply | 100 to 240 VAC, 550 W | | Fan | Redundant dual ball bearing fan, speed adjustable, hot-plug | | Power Consumption | 140 W or less (without HDDs) | | Working Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 10-90% | | Chassis | 4 RU | | Dimensions | 17.6 x 20.8 x 6.8" (44.7 x 52.8 x 17.2 cm) | | Weight | 50.7 lb (23 kg) or less, without HDDs | | | | Package Weight | 64.0 lb | | Box Dimensions (LxWxH) | 29.0 x 26.5 x 16.0" |
