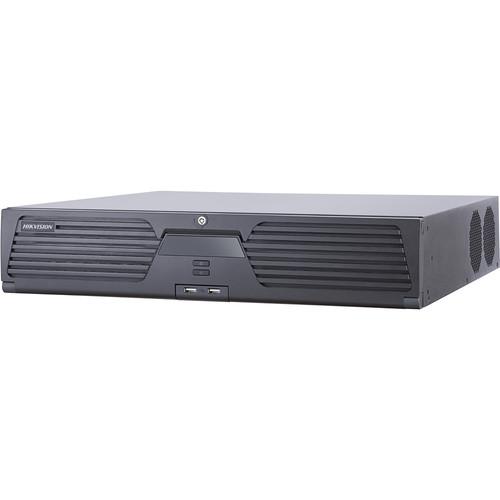

User Manual for Hikvision I16 Series 32-Channel 3 RU 12MP NVR Click to enlarge the picture
Contents of the user manual for the Hikvision I16 Series 32-Channel 3 RU
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision I16 Series 32-Channel 3 RU contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to 32 channels of video with the I16 Series NVR from Hikvision at resolutions up to 12MP. Equipped with 16 SATA ports, each of which can accommodate an HDD up to 6TB, this NVR supports up to 96TB of internal storage (HDDs available separately). External storage options include PCs via Internet connection, network servers, eSATA, and USB storage devices. H.265, H.264+, H.264, and MPEG-4 compression help optimize network bandwidth use while ensuring high-quality recording and playback.
The NVR enables simultaneous playback of up to 16 channels at up to 3840 x 2160 resolution via its HDMI ports and up to 2560 x 1440 via its VGA ports. Up to 32 channels can be simultaneously recorded at 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, or QCIF resolution, with a maximum combined transfer speed of 320 Mbps. There are two RJ45 10/100/1000 Mb/s self-adaptive Ethernet interfaces, as well as a RS-232, RS-485 and serial keyboard interfaces. - Dual-OS design for reliability of system running
- ANR technology enhances storage reliability when the network is disconnected
- HDD hot swap with RAID 0, 1, 5, 6, and 10 storage scheme configurable
- Normal or Hot Spare working mode is configurable to constitute an N+1 hot spare system
- Connectable to third-party network cameras
- Up to 64 IP cameras can be connected
- Supports live view, storage, and playback of the connected camera at up to 12MP resolution
- Up to 16 SATA interfaces and one eSATA interface connectable for recording and backup
- Storage space effectively saved by 50-70% with use of H.264+ decoding format
- Multi-address and network fault tolerance HD transmission working modes
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, and upgrade
- Recording, playback, and backup of VCA detection alarms
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video and smart playback to improve the playback efficiency
- Supports HDD quota and group modes; different capacity can be assigned to different channels
- VCA events IPC uploading supported
UPC: 842571110388 In the Box Hikvision I16 Series 32-Channel 3 RU 12MP NVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision I16 Series 32-Channel 3 RU 12MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Pro Series Specs | | | IP Video Inputs | 32 channels | | Bandwidth | Incoming: 320 Mb/s
Outgoing: 256 Mb/s, or 200 Mb/s(when RAID is enabled) | | Output Resolution | HDMI1: 4K UHD (3840 x 2160) at 60 Hz, 4K (3840 x 2160) at 30 Hz, 2K (2560 x 1440) at 60 Hz, 1920 x 1080 at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
HDMI2: 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
VGA1: 2K (2560 x 1440) at 60 Hz, 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
VGA2: 1920
