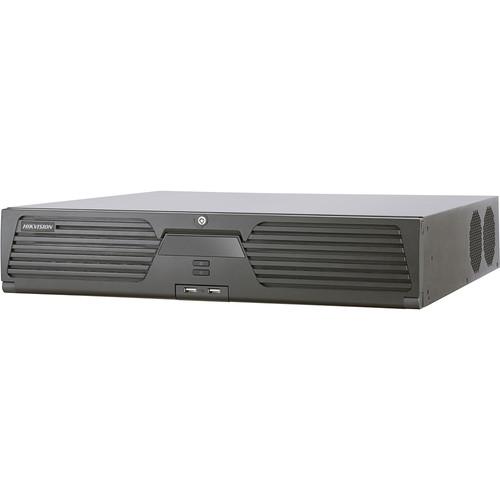

User Manual for Hikvision iDS-9600NXI-I8 16S DeepinMind 32-Channel 12MP NVR Click to enlarge the picture
Contents of the user manual for the Hikvision iDS-9600NXI-I8 16S DeepinMind 32-Channel 12MP
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision iDS-9600NXI-I8 16S DeepinMind 32-Channel 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to 32 channels of video with the 2 RU iDS-9600NXI-I8/16S DeepinMind NVR from Hikvision at resolutions up to 12MP. Equipped with eight SATA ports, each of which can accommodate an HDD up to 8TB, this NVR supports up to 64TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, eSATA, and USB storage devices. H.265, H.265+, H.264, H.264+, and MPEG4 compression help optimize network bandwidth use while ensuring high-quality recording and playback.
The NVR enables simultaneous playback of up to 16 channels at up to 3840 x 2160 resolution via its HDMI ports, and up to 2560 x 1440 via its VGA ports. Up to 32 channels can be recorded between 12MP and QCIF resolutions at a maximum combined transfer speed of 320 Mb/s. There are two RJ45 10/100/1000 Mb/s self-adaptive Ethernet interfaces, as well as an RS-232, RS-485, and serial keyboard interfaces. - Human Body Detection: Recognition of a human body target in behavior detection to filter false alarms
- Compatible with third-party network cameras
- Up to 8-channel decoding at 1080p resolution
- HDD hot swap with RAID0, RAID1, RAID5, RAID6, and RAID10 storage scheme configurable
- Supports multiple VCA (Video Content Analytics) events
- Smart search for the selected area in a video, and smart playback to improve playback efficiency
- Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
- POS information overlay on live view and playback
- POS-triggered recording and alarm
- ANR technology to enhance storage reliability when the network is disconnected
- Configurable normal or hot spare working mode to constitute an N+1 hot spare system
- Hik-Connect for easy network management
- 2Gb Ethernet network interfaces
UPC: 842571110401 In the Box Hikvision iDS-9600NXI-I8/16S DeepinMind 32-Channel 12MP NVR (No HDD, 2 RU) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision iDS-9600NXI-I8 16S DeepinMind 32-Channel 12MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision IDS-9632NXI-I8/16S Specs | IP Video Inputs | 32 channels | | Bandwidth | Incoming: 320 Mb/s, or 200 Mb/s (when RAID is enabled)
Outgoing: 256 Mb/s, or 200 Mb/s (when RAID is enabled) | | Recording Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Video Outputs | 2 x HDMI
2 x VGA | | HDMI Resolution | HDMI1: 3840 x 2160 at 60/30 Hz, 2560 x 1440 at 60 Hz, 1920 x 1080 at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
HDMI2: 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | VGA Resolution | VGA1: 2560 x 1440 at 60 Hz, 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
VGA2: 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280
