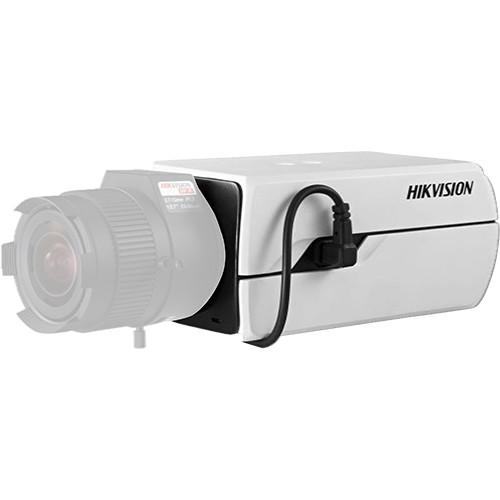

User Manual for Hikvision Lightfighter Series DS-2CD4025FWD-A 2MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Hikvision Lightfighter Series DS-2CD4025FWD-A 2MP Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Lightfighter Series DS-2CD4025FWD-A 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Lightfighter Series DS-2CD4025FWD-A Network Box Camera from Hikvision comes with a 1/2.8" progressive scan CMOS sensor. It captures high-quality 2MP color images in backlit environments at up to 60 fps. The auto back focus feature allows the camera to automatically adjust the sensor to the right focus. The camera also features Digital WDR (140 dB), 3D-DNR, BLC/HLC, and many other smart features to meet a wide variety of applications. It supports H.264, MPEG4, and MJPEG video compression for efficient utilization of network bandwidth. Smart Features - 6 behavior analysis, 4 exception detections, 1 recognition, and 1 statistic function
- Smart Recording feature supports edge recording and dual-VCA
- Smart Encoding feature supports low bit rate, low latency, ROI enhancement
- Smart Image Control with auto back focus support
Image - 1/2.8" progressive scan CMOS
- Videos up to 1920 x 1080 at 60 fps
- Rotate mode makes the camera suitable for installation in corridors
- Regional cropping allows details to be seen with low bandwidth use
- Offers code smoothness setting for different requirements of image quality and fluency
- H.264/MJPEG video compression, multi-level video quality configuration, and support for Basic/Main/High Profile H.264 encoding complexity
- Digital WDR (140 dB) for backlit environments
- 3D Digital Noise Reduction (DNR)
- Backlight Compensation (BLC), Highlight Compensation (HLC)
System - Supports ONVIF (profile S/profile G), CGI, PSIA, ISAPI protocol
- Supports three streams, and 20 channels live view at the same time
- Anti-thunder, anti-surge, and anti-static protection level
Interface Support - microSD/SDHC/SDXC card slot with 128GB storage capacity (card not included)
- 10M/100M/1000M Ethernet port
- Audio input / output, supports dual-channel stereo audio
- CVBS analog output (4CIF resolution)
Security - 3-level user authentication management, user and password authorization, and IP address filtering and anonymous access
- Supports security certificate as HTTPS, SSH
- Basic and digest authentication is supported in IE configuration
Power Supply - 12VDC / 24VAC / PoE (802.3af)
UPC: 813908024036 In the Box Hikvision Lightfighter Series DS-2CD4025FWD-A 2MP Network Box Camera (No Lens) Limited 3-Year Warranty Brochure PDF 896.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Lightfighter Series DS-2CD4025FWD-A 2MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4025FWD Specs | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.005 lux at (f/1.2, AGC on)
B&W: 0.0005 lux at (f/1.2, AGC on) | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Supported | | Lens Mount | C/CS mount | | Auto Iris | DC drive | | Day & Night | IR cut filter with auto switch | | DWDR | 140 dB | | Focus | ABF Support | | Video Compression | H.264 / MJPEG | | H.264 Profile | Baseline Profile / Main Profile / High Profile | | Video Bit Rate | 32 kbps to 16 Mb/s | | Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.722.1) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 50 fps 1920 × 1080 / 1280 x 960 / 1280 x 720
60 Hz: 60 fps 1920 × 1080 / 1280 x 960 / 1280 x 720 | | Streaming | Independent with Main Stream and Sub Stream, up to 50 / 60 Hz: 20 fps (1280 x 720) | | Image Enhancement | BLC / HLC / 3D-DNR / ROI / Defog | | Image Settings | Rotate Mode, Saturation, Brightness, Contrast adjustable by client software or web browser | | Cropping | Regional cropping supported | | Day/Night Switching | Auto / Schedule/ Triggered by Alarm In | | Overlay | LOGO picture can be overlaid on video with 128 x 128 24-bit bmp format | | | | Storage | NAS (Support NFS, SMB / CIFS), ANR | | Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour | | Security | User Authentication, Watermark, IP address filtering, Anonymous access | | Standard | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Audio | 1-channel 3.5 mm audio in (Mic in / Line in) / out interface, 1 built-in microphone | | Communication | 1 x RJ45 10M/100M/1000M Ethernet port
1 x RS-485 interface
1 x RS-232 interface | | Alarm | 1 x input, 1 x output (up to 24 VDC, 1 A or 110 VAC, 500 mA) | | Video Output | 1 V p-p composite output (75 Ohms / BNC) | | Onboard Storage | Built-in microSD / SDHC / SDXC slot, up to 128 GB | | Reset | Yes | | | | Filtering | Supports environmental noise filtering | | Audio Input & Output | Support dual audio track, stereo | | Audio Sampling | 16 kHz / 32 kHz / 44.1 kHz / 48 kHz | | | | Video Analytics | Behavior Analysis:
Line Crossing Detection (detects objects that cross a pre-defined virtual line)
Intrusion Detection (detects for intruders who enter and loiter in a pre-defined virtual region)
Region Entrance (detects an entry into a pre-defined virtual region)
Region Exiting (detects an exit from a pre-defined virtual region)
Unattended Baggage (detects objects left over in a pre-defined region)
Object Removal (detects objects removed from a pre-defined region) | | Detection Functions | Line Crossing and Intrusion Detection
Face Recognition
Exception Detections: Scene Change, Sudden Audio Increase/Decrease, Audio Loss, and Defocus | | Statistics | Object Counting: Entrance and exit object number is accounted for and shown on screen in real time | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
Humidity 95% or less (non-condensing) | | Power Supply | 24 VAC ±10%
12 VDC ±10%
PoE (802.3af) | | Maximum Power Consumption | 6 W
9 W with IR cut filter on | | Dimensions | 2.75 x 2.28 x 5.71" (6.98 x 5.8 x 14.5 cm) | | Weight | 1.83 lb (0.83 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 12.4 x 5.8 x 5.5" |
