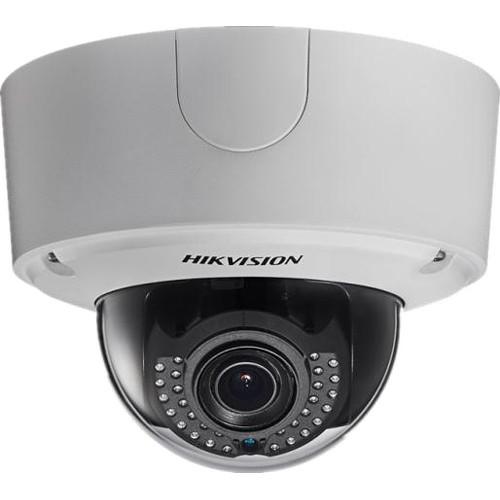

User Manual for Hikvision Lightfighter Series DS-2CD4525FWD-IZH 2MP Smart IP Outdoor Dome Camera with 2.8 to 12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Lightfighter Series DS-2CD4525FWD-IZH 2MP Smart
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Lightfighter Series DS-2CD4525FWD-IZH 2MP Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Lightfighter Series DS-2CD4525FWD-IZH 2MP Smart IP Outdoor Dome Camera from Hikvision features a 1/2.8" progressive scan CMOS sensor and a 2.8 to 12mm varifocal lens. This Lightfighter series camera is able to capture high quality color images in a backlit environment. DS-2CD4525FWD-IZH offers full HD resolution with up to 60 fps frame rate, 140 dB WDR, PoE, defog, and 3D DNR functionality. - Smart Detection
- DS-2CD4525FWD-IZH supports intrusion detection, line crossing detection, object left/removal, area entering/leaving, scene change detection, audio surge detection, audio loss detection, defocus detection, face detection, and object counting
- Smart Codec
- It features smart recording with dual-VCA, low bitrate, low latency, ROI enhancement, multi-stream, rotate mode, and edge recording
- Smart Image Control
- Supports distortion correction
- Other Features
-
- 1/2.8" progressive scan CMOS sensor
- Supports full HD video
- Maximum frame rate of 60 fps
- Can operate in a high light environment
- Supports slow shutter
- 140 dB WDR
- 3D DNR
- Smart heater
- Supports up to 64 Gb on-board storage
- Operates on 12 VDC, 24 VAC, or PoE
UPC: 816783018619 In the Box Hikvision Lightfighter Series DS-2CD4525FWD-IZH 2MP Smart IP Outdoor Dome Camera with 2.8 to 12mm Varifocal Lens Limited 3-Year Warranty Brochure PDF 915.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Lightfighter Series DS-2CD4525FWD-IZH 2MP Smart IP Outdoor Dome Camera with 2.8 to 12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4525FWD-IZH Specs | | | Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | 0.005 lux @ (f/1.2, AGC On), 0 lux with IR
0.007 lux @ (f/1.4, AGC On), 0 lux with IR | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Supported | | Lens | 2.8 to 12 mm @ f/1.4 | | Angle of View | 113 to 33.8° | | Lens Mount | AF automatic focusing and motorized zoom lens | | Auto-Iris Lens Support | DC drive | | Day & Night | IR cut filter with auto switch | | Wide Dynamic Range | 140 dB | | | | Video | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline / Main / High | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.722.1) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 50 fps for 1920 x 1080 / 1280 x 960 / 1280 x 720
60 Hz: 60 fps for 1920 x 1080 / 1280 x 960 / 1280 x 720 | | Streaming | Third Stream: Independent with main stream and sub stream
Up to 50 Hz: 25 fps @ 1920 × 1080; 60 Hz: 30 fps @ 1920 × 1080 | | Image Enhancement | BLC / HLC / 3D DNR / ROI / Defog | | Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or Web browser | | Distortion | Supports distortion correction | | Cropping | Supports regional cropping | | Day/Night Switching | Auto / Schedule / Triggered by alarm in | | Overlay | Logo picture can be overlaid on video with 128 x 128 24-bit bmp format | | | | Storage | NAS (supports NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access | | Standard | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Audio | 1-channel 3.5 mm audio in (Mic in/Line in) / out interface | | Communication Interface | 1 x RJ45 10M/100M Ethernet port, 1 x RS-485 interface | | Alarm | 1 x input, 1 x output (up to 24 VDC, 1 A or 110 VAC, 500 mA) | | Video Output | 1 Vpp composite output (75 Ω/BNC) | | On-board Storage | Built-in microSD/SDHC/SDXC slot; up to 64 GB | | Reset Button | Yes | | | | Filtering | Supports environment noise filtering | | Audio I/O | Support dual audio track, stereo | | Audio Sampling Rate | 16 / 32 / 44.1 / 48 kHz | | | | Functions | Behavior Analysis: Line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal
Exception Detections: Scene change detection, sudden audio increase/decrease detection, audio loss detection, defocus detection
Recognition: Face detection recognition
Statistics: Object counting (entrance and exit object number is accounted and showed on screen in real time) | | IP Rating | IP66 | | Impact Protection | IK10 | | IR Distance | 131' (40 m) | | Operating Conditions | Temperature: -40 to 140°F (-40 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 12 VDC / 24 VAC / PoE (802.3at) | | Power Consumption | Maximum 12 W (maximum 17 W with heater On) | | Dimensions | 6.5 × 5.0" (16.5 × 12.7 cm) | | Weight | 4.63 lb (2.10 kg) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 9.8 x 8.7 x 7.7" |
