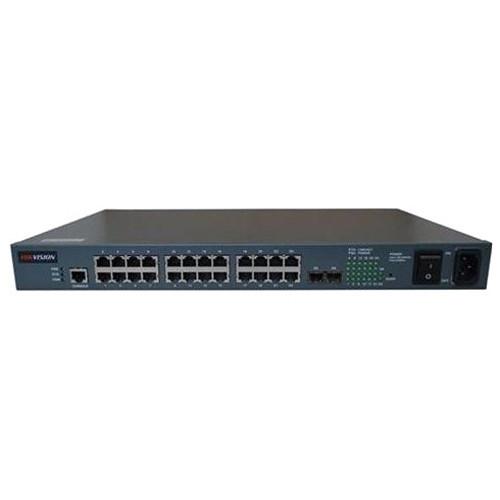

User Manual for Hikvision Multiservice Gigabit Ethernet PoE Switch with 28 Ethernet and 4 SFP Optical Ports Click to enlarge the picture
Contents of the user manual for the Hikvision Multiservice Gigabit Ethernet PoE Switch
- Product category: Network Switches, Bridges & Hubs Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Switches, Bridges & Hubs
|
User manual for the Hikvision Multiservice Gigabit Ethernet PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description - Key Features
-
- Excellent performance
- 64Gbps backplane capacity; non-blocking design; video streaming forwarding at full speed
- Gigabit optical-fiber transmission with up to 120Km distance
- High security and reliability
- Providing multiple user authentication modes such as 802.1x authentication
- Port-MAC-IP bind
- Special ARP invasion detection to effectively stop ARP cheat
- Flexible and various managements
- Adopt cluster technology, support device stacking and use an unified IP address for management
- Multiple management modes such as Console port, Telnet, Web and SNMP
- Powerful flow and broadcast management
- Automatically detecting and controlling broadcast storms, monitoring IGMP packets and effectively preventing broadcast packet's flooding
- Flow control in full-duplex mode or half-duplex mode
- The rate limitation in a minimum step of 64K is supported on the Ethernet port
UPC: 816783017070 Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Multiservice Gigabit Ethernet PoE Switch with 28 Ethernet and 4 SFP Optical Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-3D2228P Specs | | | Device Type | Switch - 28 ports - managed | | Enclosure Type | Desktop 1U | | Subtype | Gigabit Ethernet | | Ports | 24 x 10/100 (PoE) + 4 x combo Gigabit SFP | | Power Over Ethernet (PoE) | PoE+ | | Performance | Backplane switching capacity: 64 Gbps
Switching capacity: 32 Gbps
Forwarding performance: 9.6 Mpps | | MAC Address Table Size | 8K entries | | Remote Management Protocol | SNMP, RMON, Telnet, CLI | | Features | VLAN support, IGMP snooping, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), port based access control, Dynamic VLAN Support (GVRP), MAC and IP-based ACLs support | | Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s | | Status Indicators | Power, 100M device connected, system, 1000M device connected | | | | Interfaces | 24 x 100Base-TX RJ-45 12 ports (PoE+) / 24 ports (PoE)
4 x 1000Base-T RJ-45
4 x SFP
1 x console RJ-45 management | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 400 Watt | | | | Width | 17.4 in | | Depth | 12.4 in | | Height | 1.7 in | | | | Min Operating Temperature | 32
