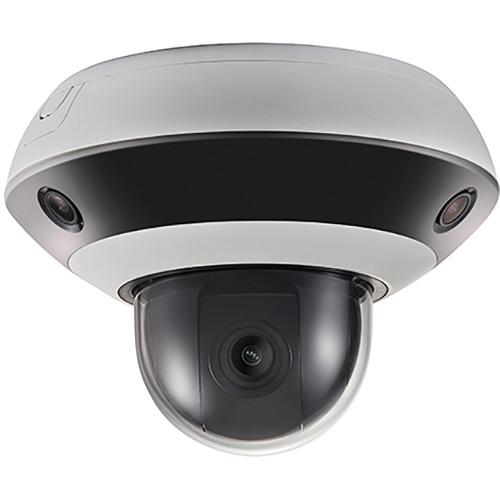

User Manual for Hikvision PanoVu Mini Series DS-2PT3326IZ-DE3 8MP Panoramic PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision PanoVu Mini Series DS-2PT3326IZ-DE3 8MP
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision PanoVu Mini Series DS-2PT3326IZ-DE3 8MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get ultra-wide-angle and close-up views of your property with the PanoVu Mini Series DS-2PT3326IZ-DE3 8MP Panoramic + PTZ Network Dome Camera with Night Vision from Hikvision. Combining three 2MP panoramic sensors with a 2MP PTZ camera, the DS-2PT3326IZ-DE3 captures video at a total resolution of up to 8MP. The panoramic camera delivers a combined field of view of 360° (no image stitching). The PTZ camera features a 2.8-12mm lens with a 120 to 56.6° field of view. Both the panoramic and the PTZ cameras are equipped with IR cut filters and IR LEDs with an effective range of up to 33'. The PTZ camera can be remotely panned 350° and tilted 90°.
The camera has a microSD card slot for edge storage, and audio input and output connections for two-way audio communication. PoE+ technology makes for easy setup, enabling you to run just one cable for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. Panoramic Camera - Color images down to 0.05 lux at f/2.0 with AGC on
- 3 x 2mm fixed lenses with 128.5° field of view for 360° panoramic images (no image stitching)
- 3 x 4 programmable privacy masking zones
PTZ Camera - Color images down to 0.05 lux at f/2.0 with AGC on
- 120 to 56.6° field of view
- Eight programmable privacy masking zones
- Smart video analytics including intrusion detection, line crossing detection, and audio exception detection
System - IR LEDs for night vision up to 33'
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- Digital wide dynamic range
- Audio input and output for two-way talk
- Basic video analytics including motion detection, tamper detection, and exception detection
- Backlight/highlight compensation
- 3D digital noise reduction
- microSD card slot for edge storage supports up to 256GB (microSD card available separately)
- Runs on 12 VDC power or PoE+
- TVS 2000V lightning protection, surge protection, and transient voltage protection
- cSA, FCC, CE, and UL certified
UPC: 842571108262 In the Box Hikvision PanoVu Mini Series DS-2PT3326IZ-DE3 8MP Panoramic + PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision PanoVu Mini Series DS-2PT3326IZ-DE3 8MP Panoramic PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2PT3326IZ-DE3 Specs | | | Image Sensor | 3 x 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.05 Lux at f/2.0 with AGC On
B&W: 0.01 Lux at f/2.0 with AGC On
0 Lux with IR | | Shutter Speed | 1/30,000 to 1/30 Seconds | | Day/Night | IR Cut Filter | | Gain | Auto/Manual | | WDR | Digital | | Image Enhancement | HLC, BLC, 3D-DNR, Regional Exposure | | White Balance | Auto, Manual, ATW (Auto-Tracking White Balance), Indoor, Outdoor, Fluorescent Lamp, Sodium Lamp | | Privacy Masking | 3 x 4 Programmable Zones | | Lenses | 3 x 2mm Fixed | | Aperture | f/2.0 | | FOV | Horizontal: 3 x 128.5°
Vertical: 75.7°
Diagonal: 144° | | | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.05 Lux at f/2.0 with AGC On
B&W: 0.01 Lux at f/2.0 with AGC On
0 Lux with IR | | Shutter Speed | 1/30,000 to 1 Second | | Day/Night | IR Cut Filter | | Gain | Auto/Manual | | WDR | Digital | | Image Enhancement | HLC, BLC, 3D-DNR, Regional Exposure, Regional Focus | | White Balance | Auto, Manual, ATW (Auto-Tracking White Balance), Indoor, Outdoor, Fluorescent Lamp, Sodium Lamp | | Privacy Masking | 8 Programmable Zones | | Digital Zoom | 8x | | Focus Modes | Semi-Automatic, Manual | | Focal Length | 2.8 to 12mm | | Optical Zoom | 4x | | Zoom Speed | 5.4 Seconds Approximate | | Field of View | Horizontal: 120 to 56.6°
Vertical: 61.8 to 31.7°
Diagonal: 149 to 65° | | Minimum Working Distance | 0.4 to 59" / 10 to 1500 mm | | Aperture Range | f/2.0 to 2.4 | | Pan | 0 to 350° | | Tilt | 0 to 90° | | Pan Speed | 0.1 to 30°/s
Preset Speed: 30°/s | | Tilt Speed | 0.1 to 30°/s
Preset Speed: 30°/s | | Proportional Zoom | Yes | | Number of Presets | 300 | | Power-Off Memory | Supported | | PTZ Status Display | Yes | | Preset Freezing | Supported | | Scheduled Tasks | Preset, Dome Reboot, Dome Adjust | | VCA | Dual | | Intelligent Video Analytics | Audio Exception Detection, Intrusion Detection, Line Crossing Detection | | | | IR Range | 33' / 10 m | | SVC | Supported | | ROI | 8 Fixed Areas | | Video Compression | H.265, H.264, MJPEG
H.264: Main/High Profile | | Video Bitrate | 32 to 8192 kb/s | | Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2 | | Audio Bitrate | G.711alaw/G.711ulaw: 64 kb/s
G.722.1/G.726: 16 kb/s
MP212: 32/64/128 kb/s | | Resolution | 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 352 x 240 at 30 fps | | Video Analytics | Motion Detection, Tamper Detection, Exception Detection | | | | Smart Record | ANR (Automatic Network Replenishment) | | Network Storage | microSD/SDHC/SDXC up to 256 GB | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour | | API | Open-Ended, ONVIF, ISAPI, CGI, Hikvision SDK, and Third-Party Management Platform | | Simultaneous Live View | Up to 4
