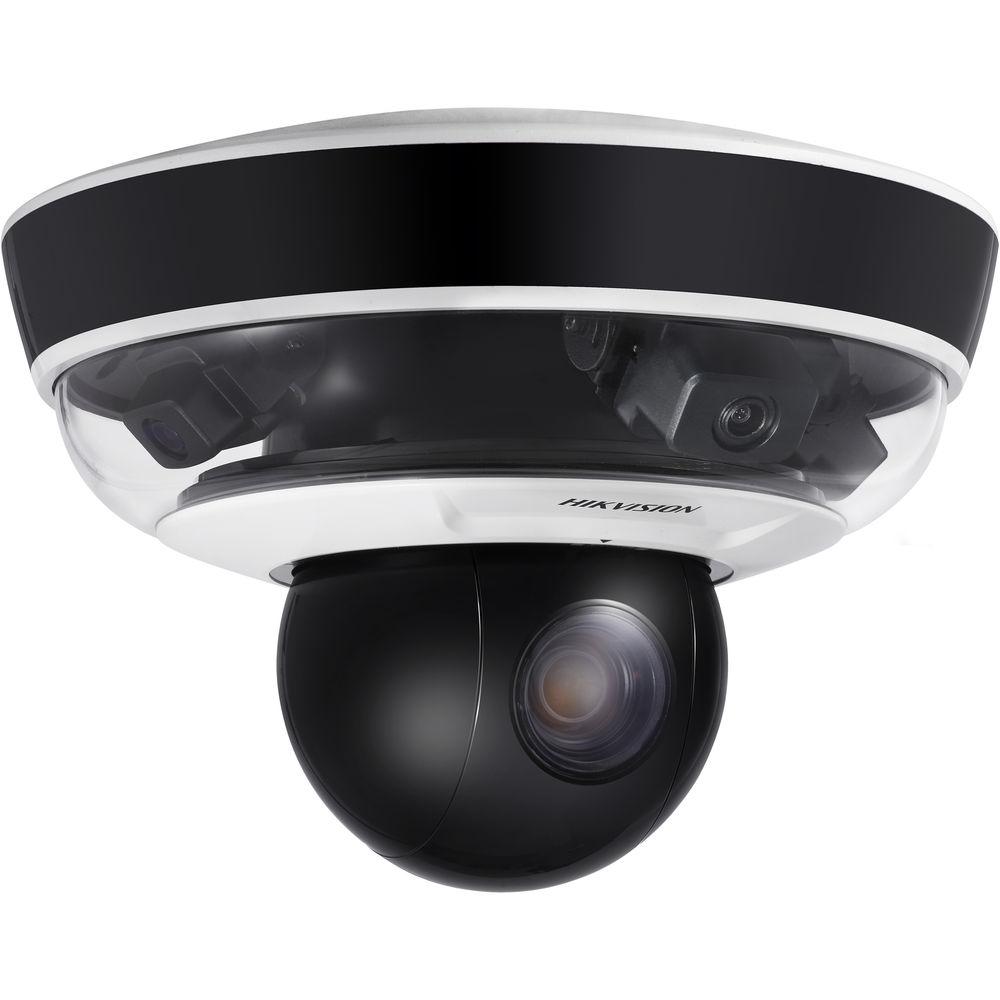

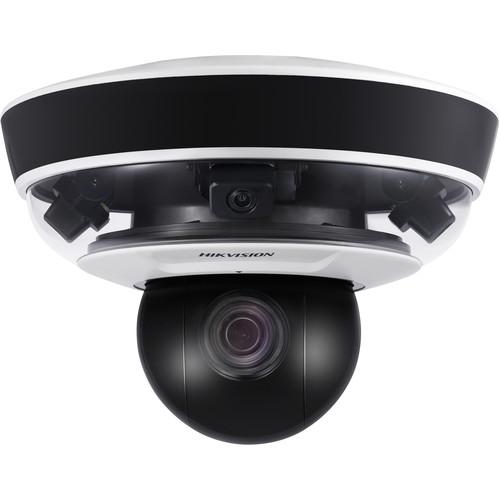

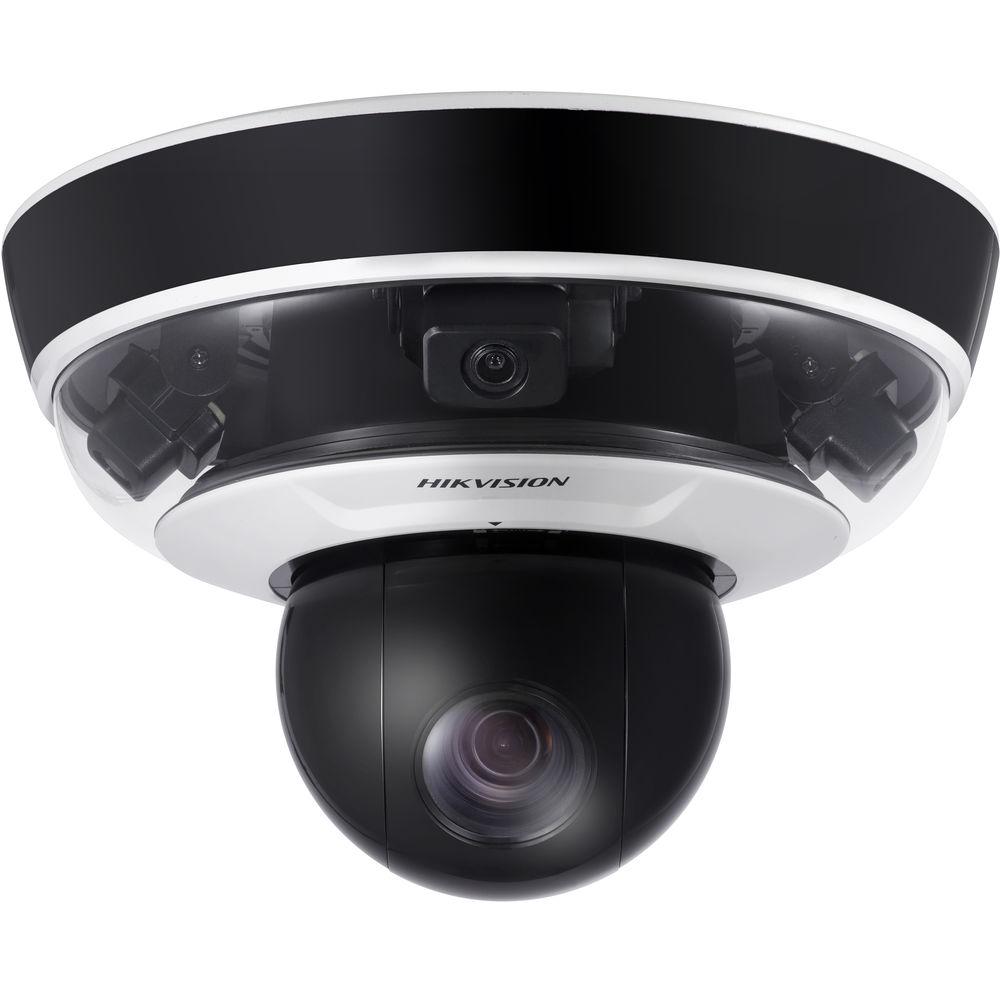

User Manual for Hikvision PanoVu Mini Series DS-2PT5326IZ-DE 8MP Outdoor Panoramic PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision PanoVu Mini Series DS-2PT5326IZ-DE 8MP
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision PanoVu Mini Series DS-2PT5326IZ-DE 8MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get ultra-wide-angle and close-up views of your property with the PanoVu Mini Series DS-2PT5326IZ-DE 8MP Outdoor Panoramic + PTZ Network Dome Camera with Night Vision from Hikvision. Combining three 2MP panoramic sensors with a 2MP PTZ camera, the DS-2PT5326IZ-DE captures video at a total resolution of up to 8MP. The panoramic camera delivers a combined field of view of 242°. The PTZ camera features a 5-50mm lens with a 58.6 to 6.4° field of view. Both the panoramic and the PTZ cameras are equipped with IR cut filters and IR LEDs with effective ranges of 98' and 164' respectively. The PTZ camera can be remotely panned 340° and tilted 90°.
The camera has a microSD card slot for edge storage, and audio input and output connections for two-way audio communication. PoE+ technology makes for easy setup, enabling you to run just one cable for both data and power. Designed for outdoor use, the camera is IP66 rated for weather resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. Panoramic Camera - Color images down to 0.001 lux at f/1.6 with AGC on
- IR LEDs for night vision up to 98'
- 3 x 80.7° field of view for 242° panoramic images
- 3 x 4 programmable privacy masking zones
PTZ Camera - Color images down to 0.001 lux at f/1.6 with AGC on
- IR LEDs for night vision up to 164'
- 58.6 to 6.4° field of view
- Eight programmable privacy masking zones
- Smart video analytics including intrusion detection, line crossing detection, and audio exception detection
System - H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- Digital wide dynamic range
- Alarm input and output connections
- Audio input and output for two-way talk
- Basic video analytics including motion detection, tamper detection, and exception detection
- Backlight/highlight compensation
- 3D digital noise reduction
- microSD card slot for edge storage supports up to 256GB (microSD card available separately)
- Runs on 12 VDC power or PoE+
- IP66 rated for outdoor use
- TVS 4000V lightning protection, surge protection, and transient voltage protection
- cSA, FCC, CE, and UL certified
UPC: 842571113389 In the Box Hikvision PanoVu Mini Series DS-2PT5326IZ-DE 8MP Outdoor Panoramic + PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision PanoVu Mini Series DS-2PT5326IZ-DE 8MP Outdoor Panoramic PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2PT5326IZ-DE Specs | | | Image Sensor | 3 x 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.001 Lux at f/1.6 with AGC On
B&W: 0.0005 Lux at f/1.6 with AGC On
0 Lux with IR | | Shutter Speed | 1/30,000 to 1/30 Seconds | | Day/Night | IR Cut Filter | | Gain | Auto/Manual | | WDR | Digital | | Image Enhancement | HLC, BLC, 3D-DNR, Defog, Regional Exposure | | White Balance | Auto, Manual, ATW (Auto-Tracking White Balance), Indoor, Outdoor, Fluorescent Lamp, Sodium Lamp | | Privacy Masking | 3 x 4 Programmable Zones | | Lenses | 3 x 4mm Fixed | | Aperture | f/1.6 | | FOV | Horizontal: 3 x 80.7° (Combined: 242°)
Vertical: 43.5° | | IR Range | 98' / 30 m | | | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.001 Lux at f/1.6 with AGC On
B&W: 0.0005 Lux at f/1.6 with AGC On
0 Lux with IR | | Shutter Speed | 1/30,000 to 1/30 Seconds | | Day/Night | IR Cut Filter | | Gain | Auto/Manual | | WDR | Digital | | Image Enhancement | HLC, BLC, 3D-DNR, Defog, Regional Exposure, Regional Focus | | White Balance | Auto, Manual, ATW (Auto-Tracking White Balance), Indoor, Outdoor, Fluorescent Lamp, Sodium Lamp | | Privacy Masking | 8 Programmable Zones | | Digital Zoom | 8x | | Focus Modes | Auto, Semi-Automatic, Manual | | Focal Length | 5-50mm | | Optical Zoom | 10x | | Zoom Speed | 2.5 Seconds Approximate | | Field of View | Horizontal: 58.6 to 6.4° | | Minimum Working Distance | 0.4 to 59" / 10 to 1500 mm | | Aperture Range | f/1.6 to 3.0 | | Pan | 0 to 340° | | Tilt | 0 to 90° | | Pan Speed | 0.1 to 60°/s
Preset Speed: 60°/s | | Tilt Speed | 0.1 to 60°/s
Preset Speed: 60°/s | | 3D Positioning | Yes | | Proportional Zoom | Yes | | Number of Presets | 300 | | Park Action | Preset | | Power-Off Memory | Supported | | PTZ Status Display | Yes | | Preset Freezing | Supported | | Scheduled Tasks | Preset, Dome Reboot, Dome Adjust | | IR Range | 164' / 50 m | | VCA | Dual | | Intelligent Video Analytics | Audio Exception Detection, Intrusion Detection, Line Crossing Detection | | | | PTZ Linkage | Supported | | SVC | Supported | | ROI | Main Stream & Sub-Stream: 8 Fixed Areas Each | | Video Compression | With Sub-Stream Enabled:
Panoramic Camera
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264
H.264 with Main/High Profile, H.265 with Main Profile
PTZ Camera
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
H.264 with Main/High Profile, H.265 with Main Profile | | Video Bitrate | 32 to 16,384 kb/s | | Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2 | | Audio Bitrate | G.711alaw/G.711ulaw: 64 kb/s
G.722.1/G.726: 16 kb/s
MP212: 32/64/128 kb/s | | Resolution | With Sub-Stream Enabled:
Panoramic Camera
Main Stream: 1920 x 1080, 1280 x 960, 1280 x 720 at 20 fps
Sub-Stream: 704 x 480, 640 x 480, 352 x 240 at 20 fps
PTZ Camera
Main Stream: 1920 x 1080, 1280 x 960, 1280 x 720 at 20 fps
Sub-Stream: 704 x 480, 640 x 480, 352 x 240 at 20 fps
With Sub-Stream Not Enabled:
Panoramic Camera
1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240 at 30 fps
PTZ Camera
1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240 at 30 fps | | Video Analytics | Motion Detection, Tamper Detection, Exception Detection | | | | Smart Record | ANR (Automatic Network Replenishment) | | Network Storage | Built-In Memory Card Slot, Supports microSD/SDHC/SDXC, up to 256 GB | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour | | API | Open-Ended, ONVIF, ISAPI, CGI, Hikvision SDK, and Third-Party Management Platform | | Simultaneous Live View | Up to 4
