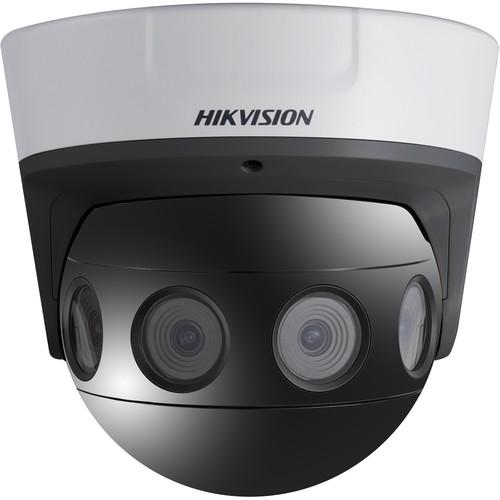

User Manual for Hikvision PanoVu Series DS-2CD6924F-IS 8MP Outdoor 180° Panoramic 4-Sensor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision PanoVu Series DS-2CD6924F-IS 8MP Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision PanoVu Series DS-2CD6924F-IS 8MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the PanoVu Series DS-2CD6924F-IS 8MP Outdoor 180° Panoramic 4-Sensor Network Dome Camera from Hikvision. This multi-sensor camera uses four 1/2.8" progressive scan CMOS sensors to capture a total of 4096 x 1800 resolution video at 30 fps in panorama mode. Four IR LEDs provide up to 66' of night vision. A 180° horizontal field of view is stitched together from the image sensors via four 4mm fixed lenses. Two-way audio communication is possible thanks to an audio I/O port. An onboard memory card slot supports microSD/SDHC/SDXC cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transferring power and data over one cable.
This camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for outdoor use. - DarkFighter technology offers visibility in low-light conditions
- 10/100M self-adaptive Ethernet port
- IR cut filter enables day and night functionality
- Day/night switch (auto, schedule, or triggered by alarm)
- H.265+, H.265, H.264+, and H.264 video compression
- 2-axis adjustment enables the camera to pivot from 0 to 355° horizontally & from 0 to 90° vertically
- Digital wide dynamic range
- Backlight compensation, highlight compensation, and 3D-DNR
- Image settings include saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- Smart features include line crossing detection, intrusion detection, region entrance & exiting, unattended baggage detection, object removal detection, audio exception, and face detection
- ROI (region of interest) for 4 fixed regions
- Two alarm inputs and two alarm outputs
- Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, alarm input, and alarm output
- Environment noise filtering
- General functions include one-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering
- Up to 20 channels for simultaneous live views
- Up to 32 users at 3 levels (administrator, operator, and user)
- iVMS-4200 video management software
- Compatible with Internet Explorer 8 and above, Safari 8 and above, Chrome 31.0-44, and Firefox 30.0-51
- IP67-rated enclosure that is suitable for outdoor use
- TVS 2000V lightning protection, surge protection, and voltage transient protection
- CSA, FCC, CE, and cUL certified
UPC: 842571112337 In the Box Hikvision PanoVu Series DS-2CD6924F-IS 8MP Outdoor 180° Panoramic 4-Sensor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision PanoVu Series DS-2CD6924F-IS 8MP Outdoor 180° Panoramic 4-Sensor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6924F-IS Specs | | | Sensor | 4 x 2 MP 1/2.8" CMOS 8 MP in total | | Lens Mount | M12 | | Focal Length | 4mm | | Maximum Aperture | f/1.8 | | Lens Field of View | Horizontal: 180°
Vertical: 86.7° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.002 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/25 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 90° | | | | Streaming Resolution | 4096 x 1800 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI | | Analytics | Line Crossing Detection, Intrusion Detection, Region Entrance, Region Exiting, Unattended Baggage Detection, Object Removal Detection, Audio Exception, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 2 | | I/O Connections | 1 x RJ45
1 x Power
1 x 9-Pin Serial (RS-485) | | IR Illuminators | 4 x 850 nm | | IR Range | 66' / 20.12 m | | Video Management Software | iVMS-4200 | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | DC: 18 W
PoE+: 25 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 7.5 x W: 8.2 x L: 8.1" / H: 189.5 x W: 207.6 x L: 206.6 mm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 10.215 lb | | Box Dimensions (LxWxH) | 13.6 x 12.65 x 10.3" |
