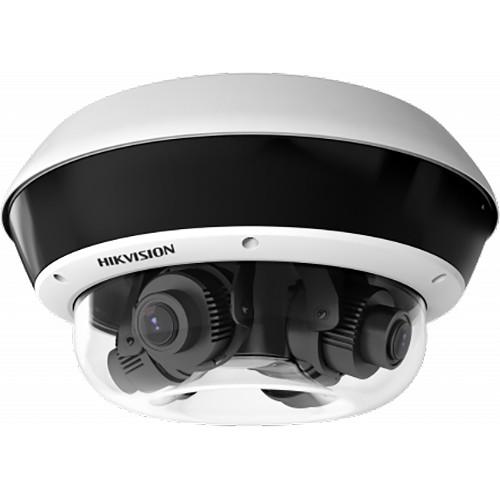

User Manual for Hikvision PanoVu Series DS-2CD6D54FWD-Z 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision PanoVu Series DS-2CD6D54FWD-Z 20MP Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision PanoVu Series DS-2CD6D54FWD-Z 20MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD6D54FWD-Z from Hikvision is a multi-sensor camera that uses four 1/2.7" progressive scan CMOS sensors to capture video at a total resolution of 10240 x 1920. Each sensor captures 2560 x 1920 resolution video at 24 fps. The camera is equipped with four 2.8-12mm varifocal lenses. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring power and data through a single cable.
This camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. The camera is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - 101 to 30° horizontal field of view
- 4 x 3-axis gimbals for flexible adjustment
- Camera pivots horizontally from -180 to 180° & vertically from 0 to 135°
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- SVC (scalable video coding)
- 120 dB wide dynamic range
- Electronic image stabilization
- ROI (region of interest) supports four fixed regions for each stream
- Image settings include rotate mode, saturation, brightness, contrast, sharpness, and white balance
- General functions include one-key reset, anti-flicker, mirror, heartbeat, password protection, privacy masking, watermark, and IP address filtering
- Analytics include motion, line crossing, intrusion, region entrance, region exiting, unattended baggage, object removal, face detection, scene change, and defocus detection
- Simultaneous live views for up to twenty channels
- Up to thirty-two users at three host levels (admin, operator, and user)
- Compatible with Internet Explorer 8 or higher, Chrome 31-44, Firefox 30.0-51, iOS, Android, and iVMS-4200
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
UPC: 842571113655 In the Box Hikvision PanoVu Series DS-2CD6D54FWD-Z 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision PanoVu Series DS-2CD6D54FWD-Z 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision PanoVu Specs | | | Sensor | 4 x 5 MP 1/2.7" CMOS Total Resolution: 20 MP | | Lens Mount | M14 | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 101 to 30°
Vertical: 73 to 22.4°
Diagonal: 137 to 37° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.006 Lux
B&W: 0.002 Lux | | Shutter Speed | 1/100,000 to 1/25 Seconds | | Camera Angle Adjustment | Horizontal: -180 to 180°
Vertical: 0 to 135° | | | | Streaming Resolution | 2560 x 1920 at 24 fps (16 Mb/s ) Total Resolution: 10240 x 1920 | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Motion Detection
Line Crossing Detection
Intrusion Detection
Region Entrance Detection
Region Exiting Detection
Unattended Baggage Detection
Object Removal Detection
Face Detection
Scene Change Detection
Defocus Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | None | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | iVMS-4200 | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 12 W
PoE: 13 W | | Material of Construction | Aluminum, Plastic | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
