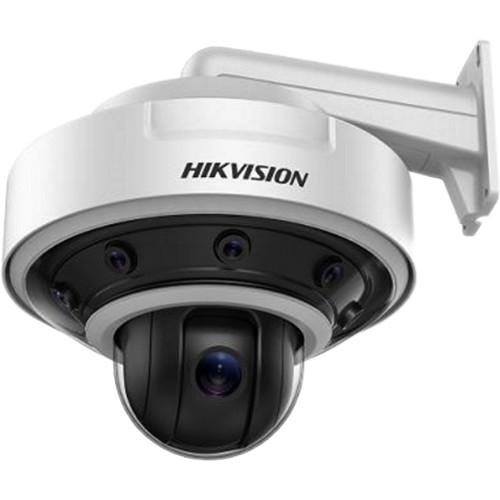

Product description The PanoVu Series DS-2DP0818Z-D Outdoor 180° Panoramic+ PTZ Network Camera from Hikvision can capture panoramic as well as close-up images at a maximum resolution of 4096 x 1800. It features four 1/1.9" progressive scan CMOS sensors, 5mm fixed panoramic lenses, and a 5.7-205.2mm varifocal lens. The panoramic images captured by four sensors help in 180° panorama monitoring. Enclosed in an IP66-rated housing, the camera can be used for both indoor and outdoor applications. With its video analysis and multiple-target tracking algorithm, the PanoVu camera also features a wide range of smart functions for multiple targets within the panoramic field of view, including intrusion detection, line crossing detection, region entrance detection, and region exiting detection. The camera comes with seven alarm inputs and two alarm outputs. In the Box Hikvision PanoVu Series DS-2DP0818Z-D Outdoor 180° Panoramic+ PTZ Network Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision PanoVu Series DS-2DP0818Z-D Outdoor 180° Panoramic PTZ Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DP0818Z-D Specs | | | Tracking Modes | Manual/ Auto/ Mix | | Number of Targets | Up to 30 targets | | Time | Target Switch Time: <1 sec | | Calibration | Manual/ Auto | | Detection | Smart Detection: Intrusion, Line crossing, Region entrance, Region exiting | | | | Image Sensor | 4 x 1/1.9" progressive scan CMOS | | Image Resolution | 4096 x 1800 | | Minimum Illumination | Color: 0.005 lux at f/2.2, AGC on
B&W: 0.0005 lux at f/2.2, AGC on | | Lens | Focal Length: 5mm
Aperture: f/2.2 | | Field of View (H x V) | 180 x 80° | | Streams | Main
50 Hz: 25 fps (4096 x 1800, 3840 x 1680, 2720 x 1192)
60 Hz: 30 fps (4096 x 1800, 3840 x 1680, 2720 x 1192)
Sub Stream:
50 Hz: 25 fps (176 x 144, 352 x 288, 704 x 320)
60 Hz: 30 fps (176 x 144, 352 x 288, 704 x 320)
Third:
50 Hz: 25 fps (176 x 144, 352 × 288, 704 x 320, 1280 x 960, 1280 x 720, 1920 x 1080)
60 Hz: 30 fps (176 × 144, 352 × 288, 704 × 320, 1280 × 960, 1280 × 720, 1920 × 1080) | | Image Compression | H.264 (Baseline, Main, High Profile) /MJPEG | | | | Image Sensor | 1/1.9" progressive scan CMOS | | Image Resolution | 1920 x 1080 | | Minimum Illumination | Color: 0.002 lux at f/1.5, AGC on
B&W: 0.0002 lux at f/1.5, AGC on | | Focal Length | 5.7-205.2mm | | Optical Zoom | 36x | | Zoom Speed | Approximately 6.6 sec (optical wide to tele) | | Angle of View | 58.7 to 2° (wide to tele) | | Minimum Working Distance | 0.39 to 59" / 10 to 1500 mm (wide to tele) | | White Balance | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | | Day & Night | IR cut filter | | Privacy Masking | 24 privacy masks programmable | | ROI | ROI Encoding: Support 24 areas with adjustable levels | | Streams | Main
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50 Hz: 25 fps (704 x 576, 352 x 288, 176 x 144)
60 Hz: 30 fps (704 x 480, 352 x 240, 176 x 120)
Third
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 352 x 288, 176 x 144)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 352 x 240, 176 x 120) | | Image Compression | H.264 (Baseline, Main, High Profile)/MJPEG/MPEG4 | | WDR Technology | 120 dB | | Range | Pan: 360° endless
Tilt: -15 to 90° (auto flip) | | Speed | Pan Manual: 0.1 to 300°/s
Pan Preset: 540°/s
Tilt Manual: 0.1 to 240°/s
Tilt Preset: 400°/s | | Number of Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 patterns with the recording time not less than 10 minutes per pattern | | Other Actions | Park Action: Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan | | Scheduled Tasks | Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Dome adjust/Aux output | | | | I/O | 7/2 | | Alarm Triggers | Face detection, Audio exception detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Alarm Actions | Preset / Patrol / Pattern / SD card recording/ Aux output/ E-map on Client/ Send email/ Upload to FTP | | | | Input | 1 Mic in/Line in interface
Line Input: 2 to 2.4 V p-p]
Output Impedance: 1 kOhms, ±10% | | Output | 1 Audio output interface, line level
Impedance: 600 Ohms | | | | Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Application Programming Interface | Open-ended API, Onvif, ISAPI, PSIA | | | | Menu Language | English | | User/Host Level | Up to 32 users
3 Levels: Administrator, Operator and User | | Security | User authentication (ID and PW)
Host authentication (MAC address)
IP address filtering | | Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language | | Live View | Simultaneous Live View: Up to 20 users | | Fiber Cable Supported | 1 x 10M/100M/1000M FC interface, TX1310 / RX1550 nm wavelength
12.4 miles (20 km) transmission distance | | Ethernet | 1 x RJ45 100/1000M Ethernet interface | | RS-485 | Half duplex, HIKVISION, Pelco P, Pelco D, self-adaptive | | Onboard Storage | Built-in microSD/SDHC/SDXC card slot (up to 128 GB, available separately)
Manual/alarm recording | | | | Power | 36 VDC
Consumption: Maximum 70 W, Heater: 22 W | | Working Temperature | -40 to 149°F (-40 to 65°C) | | Humidity | 90% or less | | Protection Level | IP66 standard
TVS 6000 V lightning protection
Surge protection
Voltage transient protection | | Dimensions (Ø x H) | 15.3 x 14.2" (390 x 361.3 mm) | | Weight | Approximately 30.8 lb (14 kg) |
