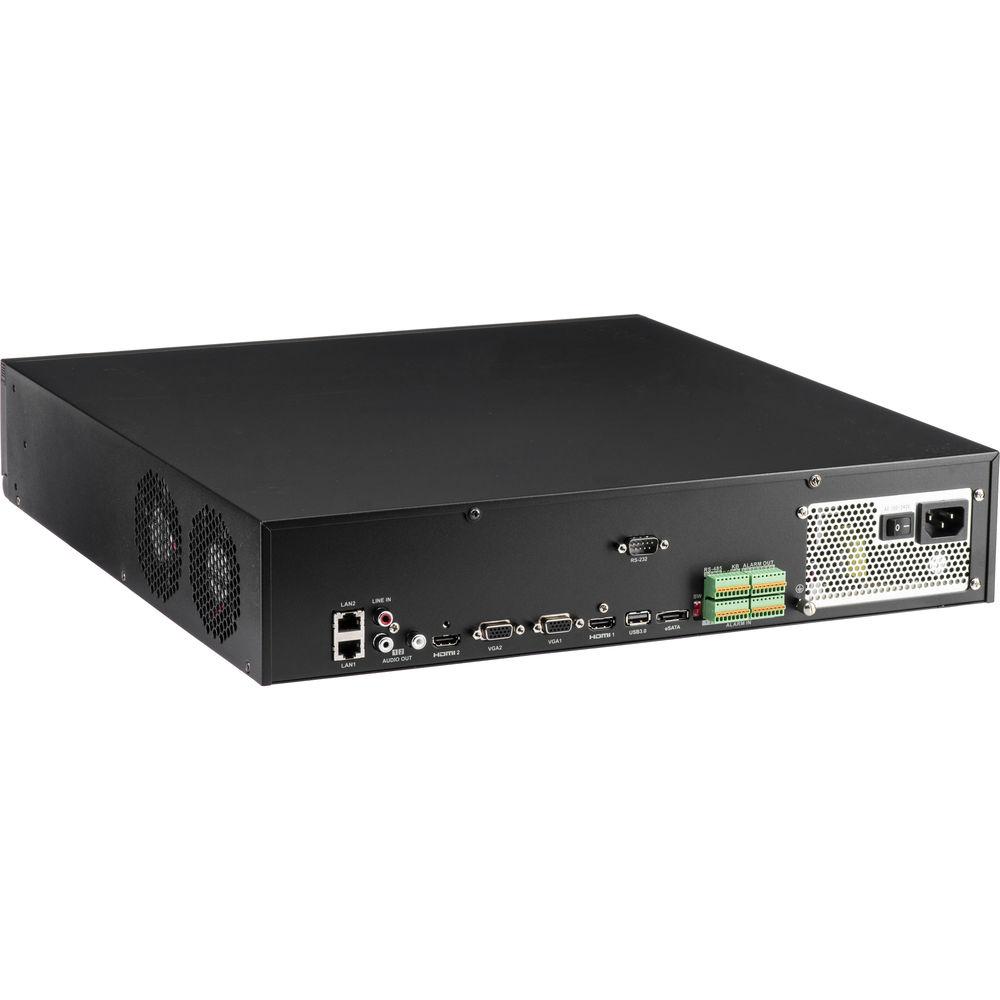

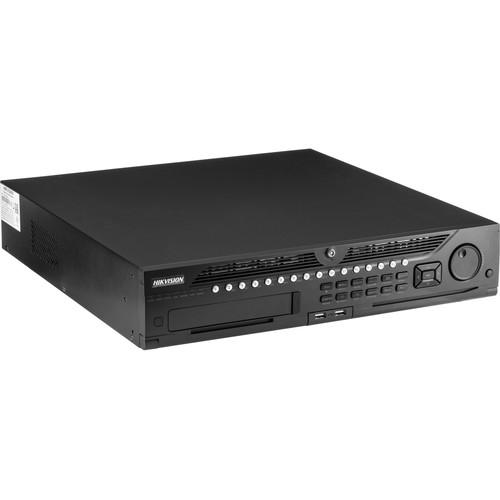

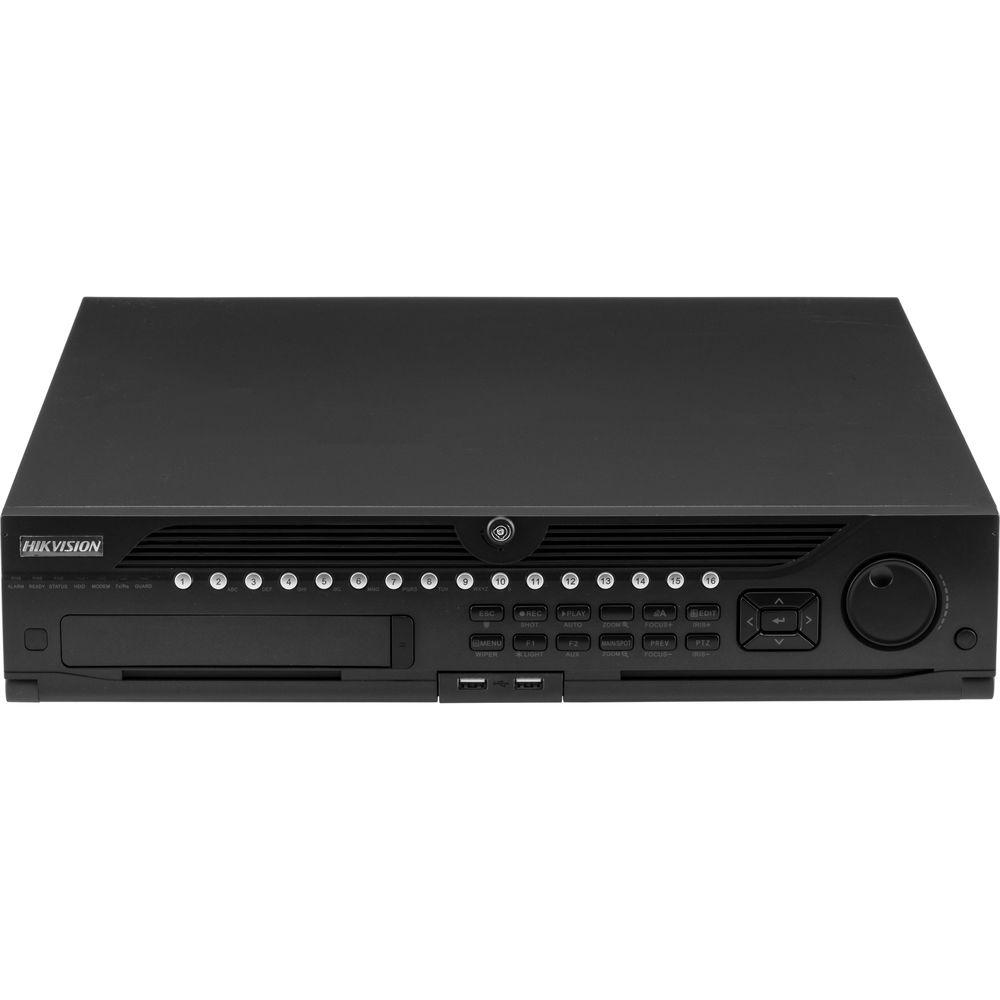

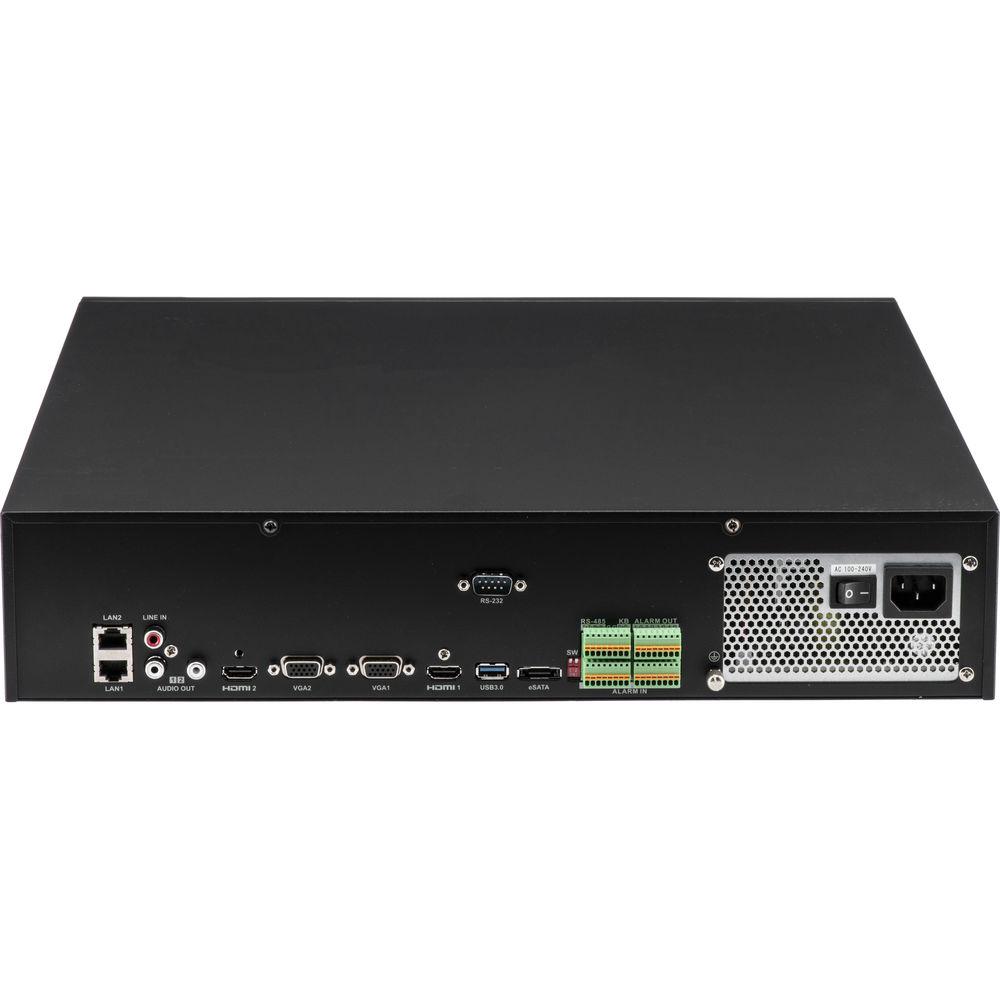

User Manual for Hikvision Pro Series 16-Channel 12MP NVR Click to enlarge the picture
Contents of the user manual for the Hikvision Pro Series 16-Channel 12MP NVR
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
 |
User manual for the Hikvision Pro Series 16-Channel 12MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to 16 channels of video with the Pro Series 16-Channel 12MP NVR from Hikvision at resolutions of up to 3840 x 2160. Equipped with eight SATA ports, the NVR can be configured to have internal storage of up to 48TB (HDDs available separately). External storage options include PCs via Internet connection, network servers, USB storage devices, and eSATA devices. H.265, H.264+, H.264, and MPEG-4 compression are supported, enabling you to choose the format that works best for your application. The NVR enables simultaneous playback of up to 16 channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports with a maximum incoming transfer speed of 320 Mb/s. The NVR is equipped with RCA connectors for bidirectional audio, as well as with RS-485, RS-232, and keyboard serial interfaces. Third-party network cameras are supported. - HDD hot-swap, RAID 0, RAID 1, RAID 5, RAID 10 configurations
- VCA detection alarm and VCA search
- RS-485 control Hikvision-C and Pelco D/P protocol
- Instant camera playback during multi-channel live view
- Reverse playback for multi-channels
- Smart search and playback make locating specific incidents quick and accurate
- Customization of tags, searching, and playing back by tags
- HDD quota and group management
- Hikvision DDNS (Dynamic Domain Name System)
- Third-party network cameras supported
UPC: 842571103342 In the Box Hikvision Pro Series 16-Channel 12MP NVR Mouse Remote Control with Batteries AC Cord 2 x Ear Mount Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Pro Series 16-Channel 12MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Pro Series Specs | | | IP Video Inputs | 16 Channels | | Video Outputs | 2 x HDMI
2 x VGA | | Display Resolution | HDMI 1: 4K (3840 x 2160) at 60 Hz, 4K (3840 x 2160) at 30 Hz, 2K (2560 x 1440) at 60 Hz, 1920 x 1080p at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
VGA 1: 2K (2560 x 1440) at 60 Hz, 1920 x 1080p at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
HDMI 2 / VGA 2: 1920 x 1080p at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | | | | Audio | 1 x RCA Input
2 x RCA Outputs (2.0 V p-p, 1 kOhm) | | Bandwidth | Incoming: 320 Mb/s (200 Mb/s with RAID Enabled)
Outgoing: 256 Mb/s (200 Mb/s with RAID Enabled) | | Remote Connection | 128 | | | | Array Type | RAID 0, RAID 1, RAID 5, RAID 10 | | SATA | 8 x SATA Ports | | Capacity | Up to 6 TB for Each HDD
HDDs available separately | | | | Network Interface | 2 x RJ45 10/100/1000 Mb/s Self-Adaptive Ethernet Interfaces | | eSATA | 1 x eSATA Port, for eSATA HDD, CD/DVD-RW | | Serial Interface | RS-232, RS-485, Keyboard | | USB Interface | Front Panel: 2 x USB 2.0
Rear Panel: 1 x USB 3.0 | | Alarm | 16-Channel Input
4-Channel Output | | | | Power Supply | 100 to 240 VAC, 50 to 60 Hz | | Maximum Power Consumption | 30 W (Without HDD and DVD-RW) | | Working Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10-90% | | Chassis | 19" Rack-Mounted 2 RU Chassis | | Dimensions | 17.5 x 18.5 x 3.5" / 44.5 x 47.0 x 9.0 cm | | Weight | Less than 22 lb / 10 kg, without HDD | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 22.5 x 22.2 x 8.5" |
