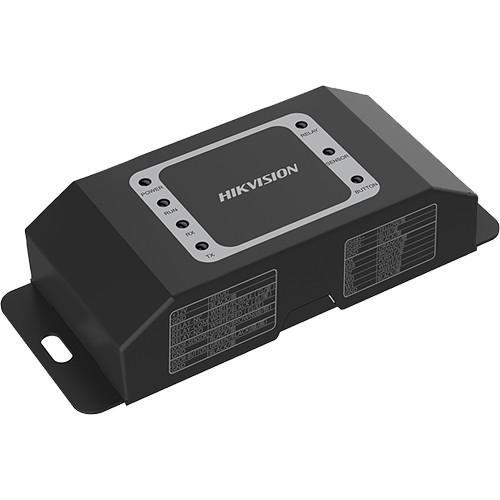

User Manual for Hikvision Secure Door Control Module Click to enlarge the picture
Contents of the user manual for the Hikvision Secure Door Control Module
- Product category: Add-On Modules Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Add-On Modules
|
User manual for the Hikvision Secure Door Control Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Secure Door Control Module from Hikvision communicates with an access control terminal via RS-485. This wall mounted module transmits magnetic door, exit button, and tampering signals and sends them to an access control terminal unit. A Wiegand interface is supported which allows you to connect a Wiegand card reader to enter or exit. - RS-485 communication indicators show the communication status
- 4-channel DIP switch supports ID number configuration
UPC: 842571105810 In the Box Hikvision Secure Door Control Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Secure Door Control Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-K2M060 Specs | Communication Interface | RS-485 | | Inputs/Outputs | 1 x Exit button
1 x Lock
1 x Magnetic door
1 x Alarm output
1 x Wiegand | | Indicator | 2 x RS-485 communication status
1 x Power supply
1 x Exit button
1 x Lock status
1 x Magnetic door
1 x Running status | | Power Supply | 12 VDC | | Mounting Method | Wall mounting | | Operating Temperature | -22 to 131°F / -30 to 55°C | | Operating Humidity | 10 to 90% non-condensing | | Dimensions | 1.89 x 4.53 x 0.98" / 4.8 x 11.5 x 2.5 cm | | Weight | 0.31 lb / 0.14 kg |
