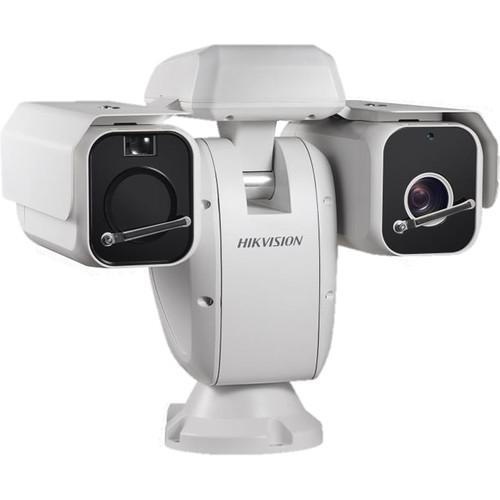

User Manual for Hikvision Smart Pro Series Thermal Bi-Spectrum Network Camera with 75mm Fixed Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Pro Series Thermal Bi-Spectrum
- Product category: Security Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Security Cameras
|
User manual for the Hikvision Smart Pro Series Thermal Bi-Spectrum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Smart Pro Series Thermal + Bi-Spectrum Network Camera from Hikvision features a 1/2.8" sensor and 75mm fixed lens to capture images at a maximum resolution of 1920 x 1080 (visible light) and 384 x 288 (thermal). This camera can be used for 24-hour surveillance thanks to the built-in IR array with a range of up to 1640'. Furthermore, the camera is enclosed in an IP66-rated housing, the system can be used for both indoor and outdoor applications. The camera supports a wide range of smart tracking features such as panorama tracking and event tracking. - Maximum resolution of 1920 x 1080 (visible light) and 384 x 288 (thermal)
- BLC (Backlight Compensation), 3D DNR (Digital Noise Reduction), WDR (Wide Dynamic Range), EIS (Electronic Image Stabilization), defog
In the Box Hikvision Smart Pro Series Thermal Bi-Spectrum Network Camera with 75mm Fixed Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Pro Series Thermal Bi-Spectrum Network Camera with 75mm Fixed Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Pro Series Specs | Image Sensor | Vanadium Oxide UFPA
1/2.8" progressive scan CMOS (optical sensor) | | Resolution | 384 x 288 | | Lens | 75mm fixed lens
8 to 250mm motorized zoom and autofocus | | Minimum Illumination | Color: 0.02 lux @ f/1.5 (AGC On)
B&W: 0.002 lux @ f/1.5 (AGC On) | | Field of View (H x V) | 7.3° x 5.5° | | Optical Zoom | 32x | | Digital Zoom | 16x | | Spectral Response | 8 µm to 14 µm | | Thermal Sensitivity (NETD) | <50 mK | | Colors | Psuedo: 14 | | Pan Range | 360° endless | | Tilt Range | -40° to 90° | | Pan & Tilt Speed | Manual
Pan: 0.1° to 110°/sec
Tilt: 0.1° to 50°/sec
Preset
Pan: 50°/sec
Tilt: 50°/sec | | IR Range | 1640' / 500 m, Smart IR | | Presets | 300 | | Tours | 8 | | Pattern | 4 | | Input | PoE | | Operating Temperature Range | -58 to 122°F / -30 to 50°C | | Power Requirements | 25 W (max) | | Dimensions | 5.25 x 4.0 x 2.5" / 13.5 x 10.0 x 6.3 cm | | Weight | 2.2 lb / 1.0 kg (with power supply) |
