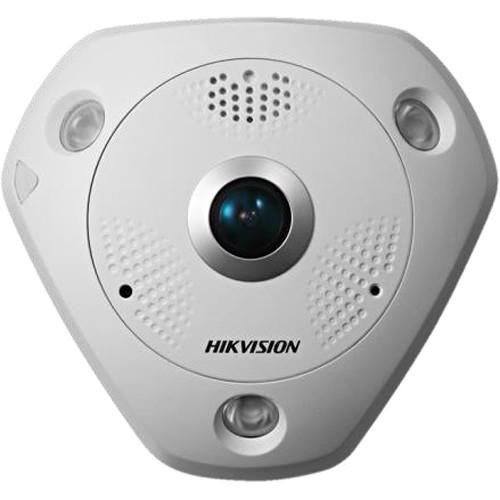

User Manual for Hikvision Smart Series 12MP Outdoor Fisheye Network Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series 12MP Outdoor Fisheye
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Smart Series 12MP Outdoor Fisheye contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor an entire room with the Smart Series 12MP Outdoor Fisheye Network Camera with Night Vision from Hikvision. This camera has a 2mm fixed lens with a 360° field of view to capture 4000 x 3072 resolution video at up to 20 fps without blind spots. It has three IR LEDs built in to capture clear images at night from up to 50' away. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and vandalism, making it suitable for outdoor use and in high-risk environments. Featuring a built-in microphone and speaker, this camera provides complete aural and visual surveillance and has a microSD slot that supports up to a 128GB microSD card (available separately) to locally store recorded audio and video. - Captures 12MP video at up to 20 fps
- IR cut filter and three IR LEDs for night vision up to 50'
- 2mm lens delivers a 180° field of view when wall mounted and a 360° field of view when ceiling- or table-mounted
- Digital wide dynamic range and 3D digital noise reduction helps produce accurate images in varying lighting conditions
- Heat mapping support, two behavior and one statistic analysis function
- Built-in microphone and speaker
- IP66- and IK10-rated enclosure for outdoor use and vandal resistance
UPC: 813908025422 In the Box Hikvision Smart Series 12MP Outdoor Fisheye Network Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series 12MP Outdoor Fisheye Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD63C2F-IV Specs | Image Sensor | 12 MP 1/1.7" progressive scan CMOS sensor | | Minimum Illumination | 0.01 lux at f/1.2, AGC ON
0.04 lux at f/2.4, AGC ON
0 lux with IR | | Shutter Speed | 1/3 to 1/100,000 sec
Slow shutter supported | | Lens | 2mm fixed | | Field of View | Wall-Mounted: 180°
Ceiling- and Table-Mount: 360° | | Day/Night | IR cut filter with auto-switch | | Number of IR LEDs and Range | 3 x IR LEDs, up to 50' (15 m) | | Wide Dynamic Range | DWDR | | Digital Noise Reduction | 3D-DNR | | Video Compression | H.264, MJPEG | | H.264 Profile | Baseline, main, high | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711, G.722.1, G.726, MP2L2 | | Audio Bit Rate | G.711: 64 kbps
G.722.1: 16 kbps
G.726: 16 kbps
MP2L2: 32 to 160 kbps | | Dual Stream | Supported | | Maximum Resolution | 4000 x 3072 | | Streams | Main:
60 Hz: 20 fps at 4000 × 3072, 24 fps at 3072 × 3072, 30 fps at 2560 × 2560
50 Hz: 20 fps at 4000 × 3072, 25 fps at 3072 × 3072, 2560 × 2560 | | Region of Interest | 3 fixed regions for each stream | | Picture Overlay | Logo picture can be overlaid on video with 128 × 128, 24-bit BMP format | | Storage | microSD/SDHC/SDXC card with ANR up to 128 GB
NAS (supports NFS, SMB/CIFS) | | Alarm Trigger | Motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | | Compatibility | ONVIF Profile S and Profile G, PSIA, CGI, ISAPI | | Intelligent Function | Heat map | | Audio Interface | Built-in microphone and speaker | | Audio Input | 1 x 3.5mm interface, mic in/line in | | Audio Support | Echo cancellation via speaker | | Network Interface | RJ45 10M/100M/1000M Ethernet | | Alarm | 1 x input, 1 x output | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | ≤90% non-condensing | | Power Supply | 12 VDC ±10%, PoE 802.3at | | Maximum Power Consumption | 15 W | | IK Rating | IK10, IEC60068-2-75Eh, 50J, EN50102 | | IP Rating | IP66 | | Dimensions | 6.5 x 6 x 1.7" (16.4 x 15.3 x 4.4 cm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 2.335 lb | | Box Dimensions (LxWxH) | 10.7 x 9.15 x 5.45" |
