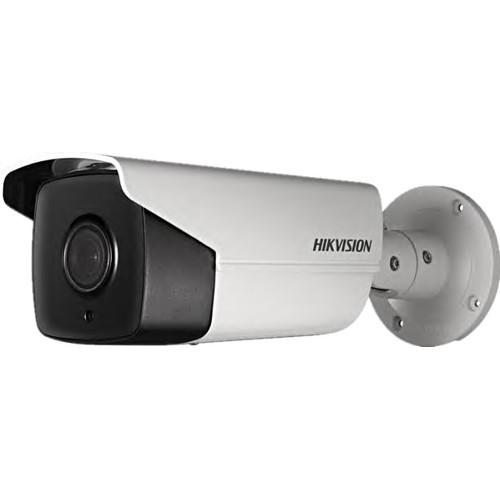

User Manual for Hikvision Smart Series 2MP Outdoor Bullet Network Camera with Night Vision & Built-In Heater Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series 2MP Outdoor Bullet
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Smart Series 2MP Outdoor Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Smart Series 2MP Outdoor Bullet Network Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor and 4.7-94mm lens to capture images up to 1920 x 1080 resolution. It also features Smart functions including Smart Detection, Smart Codec, and Smart Image Control. The built-in heater combined with an IP67-rated housing allows the camera to function outdoors, even in extreme cold weather (as low as -40°F). - 1/2.8" progressive scan CMOS image sensor
- 1920 x 1080 video up to 60 fps
- 4.7-94mm auto focus motorized zoom lens
- 120 dB wide dynamic range
- 3D digital noise reduction
- Smart Detection function offers intrusion detection, line crossing detection, object left/removed, area entrance/exit, scene change detection, audio surge detection, audio loss detection, defocus detection, face detection, object counting, and more
- Smart Codec feature offers smart recording with dual-VCA, low bit rate, low latency, ROI enhancement, multi-stream, rotate mode, edge recording, and more
- Smart Image Control feature supports distortion correction
- Supports 128GB on-board storage (card not included)
- 12 VDC / PoE (802.3at) operation
- Supports defogging and comes with a built-in heater
UPC: 842571100181 In the Box Hikvision Smart Series 2MP Outdoor Bullet Network Camera with Night Vision & Built-In Heater Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series 2MP Outdoor Bullet Network Camera with Night Vision & Built-In Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4A24FWD-IZH Specs | | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | 0.007 Lux at f/1.4 (AGC On), 0 Lux with IR | | Shutter Time | 1/3 to 1/100,000 Sec | | Day & Night | IR Cut Filter with Auto Switch | | Day/Night Switching | Auto/Schedule | | Wide Dynamic Range | 120 dB | | DNR | 3D | | IR Distance | Up to 394' / 120 m | | | | Type | Automatic Focusing and Motorized Zoom Lens | | Focal Length | 4.7-94mm | | Aperture | f/1.4 | | Angle of View | 53.8 to 3.1° | | Auto Iris | DC Drive | | | | Video Compression | H.264+, H.264, MJPEG, MPEG-4 | | H.264 Profile | Baseline Profile / Main Profile / High Profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 50 fps (1920 x 1080 / 1280 x 960 / 1280 x 720)
60 Hz: 60 fps (1920 x 1080 / 1280 x 960 / 1280 x 720) | | Image Enhancement | EIS / BLC / 3D-DNR / ROI / Defog | | Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness Adjustable Through Client Software or Web Browser | | Lens Distortion Correction | Supported | | Cropping | Supports Regional Cropping | | Picture Overlay | LOGO Picture Can Be Overlaid on Video with 128 x 128 24-Bit BMP Format | | Behavior Analysis | Line Crossing Detection, Intrusion Detection, Region Entrance, Region Exiting, Unattended Baggage, Object Removal | | Line Crossing Detection | Cross a Pre-Defined Virtual Line | | Intrusion Detection | Enter and Loiter in a Pre-Defined Virtual Region | | Region Entrance | Enter a Pre-Defined Virtual Region | | Region Exiting | Exit from a Pre-Defined Virtual Region | | Unattended Baggage | Objects Left in a Pre-Defined Region | | Object Removal | Objects Removed from a Pre-Defined Region | | Exception Detections | Scene Change Detection, Sudden Audio Increase/Decrease Detection, Audio Loss Detection, and Defocus Detection | | Recognition | Face Recognition | | Statistics | Object Counting (Entering and Exiting Objects Are Counted; Count Is Displayed on Screen in Real Time) | | | | Network Storage | NAS (Supports NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion Detection, Tampering Alarm, Network Disconnect, IP Address Conflict, Storage Exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User Authentication, Watermark, IP Address Filtering, Anonymous Access | | System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Communication | 1 x RJ45 10/100/1000 Mb/s Ethernet Port | | Onboard Storage | Built-in microSD/SDHC/SDXC Card Slot, up to 128 GB (Card Not Included) | | Reset Button | Yes | | | | Protection Level | IP67 Rated | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Humidity | 95% or Less (Non Condensing) | | Power Supply | 12 VDC ± 10%, PoE (802.3at) | | Power Consumption | DC: 10.8 W
PoE: 14 W | | Dimensions | 3.94 x 4.09 x 12.28" / 100.0 x 103.9 x 311.8 mm | | Weight | 4.41 lb / 2 kg | | | | Box Dimensions (LxWxH) | 15.0 x 6.0 x 6.0" |
