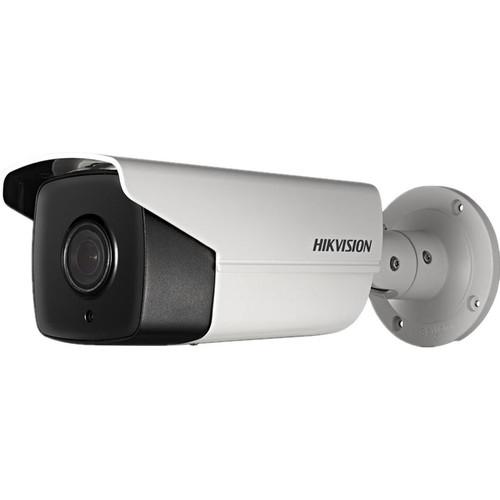

User Manual for Hikvision Smart Series 3MP Outdoor Night Vision Network Bullet Camera with 2.8-12mm Lens and Heater Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series 3MP Outdoor Night
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Smart Series 3MP Outdoor Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the Smart Series 3MP Outdoor Night Vision Network Bullet Camera from Hikvision. Featuring a 1/2.8" progressive scan CMOS sensor and a motorized 2.8-12mm varifocal lens, this camera can capture 2048 x 1536 resolution video at up to 48 fps. You can monitor specified areas during the day and at night from up to 164' away, thanks to built-in IR LEDs. PoE technology allows for a quick setup, while its IP67-rated enclosure provides protection against dust and water, making the camera suitable for outdoor use. The camera has a built-in heater for functionality in extreme weather conditions down to -40°F. - 1/2.8" progressive scan CMOS captures 3MP video at up to 48 fps
- IR cut filter and IR LEDs for night vision up to 164'
- Wide dynamic range up to 120 dB and 3D digital noise reduction help the camera produce accurate images in varying lighting conditions
- microSD card slot supports up to a 128GB microSD card (available separately)
- RJ45 Ethernet connection with PoE
- IP67-rated enclosure with built-in heater for outdoor use in extreme weather
UPC: 813908021288 In the Box Hikvision Smart Series 3MP Outdoor Night Vision Network Bullet Camera with 2.8-12mm Lens and Heater Limited 3-Year Warranty Brochure PDF 848.4kbatfqdewydfwwuy Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series 3MP Outdoor Night Vision Network Bullet Camera with 2.8-12mm Lens and Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4A35FWD-IZH Specs | | | Image Sensor | 1/2.8" progressive scan CMOS sensor | | Minimum Illumination | Color: 0.014 lux at f/1.4 with AGC on
0 lux with IR LEDs on | | Shutter Time | 1 to 1/100,000 sec | | Slow Shutter | Supported | | Focal Length | 2.8-12mm | | Aperture | f/1.4 | | Lens Type | Motorized | | Auto Iris | DC drive | | Day/Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | 120 dB | | | | Video Compression | H.264, MJPEG | | H.264 Profile | Main, baseline, high | | Bit Rate | 32 kbps to 16 Mbps | | Streaming | Triple | | | | Resolution | 2048 x 1536 | | Frame Rate | 48 fps at 2048 x 1536
60 fps at 1920 x 1080, 1280 x 960, 1280 x 720 | | Streaming Frame Rate | Third: Independent with main stream and sub stream, up to 30 fps at 2048 x 1536 | | Image Settings | Rotate mode, saturation, brightness, contrast, and gray scale adjustable by client software or web browser | | Backlight Compensation | Yes, zone configurable | | Defog | Supported | | Day/Night Switching | Auto, schedule, triggered by alarm in | | Picture Overlay | 128 x 128 24-bit BMP format overlay, zone optional | | Region of Interest | Yes | | | | Memory Card Support | microSD/SDHC/SDXC with ANR up to 128 GB (available separately) | | Network Storage | NAS | | Alarm Trigger | Line crossing detection, intrusion detection, scene change detection, audio exception detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask, watermark, IP address filtering, anonymous access | | System Compatibility | ONVIF, PSIA, CGI, ISAPI | | Communication Interface | RJ45 802.3at | | | | Behavior Analysis | Line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal | | Line Crossing Detection | Cross a predefined virtual line | | Intrusion Detection | Enter and loiter in a predefined virtual region | | Region | Entrance: Enter a predefined virtual region
Exit: Exit a predefined virtual region | | Unattended Baggage | Objects left in the predefined region such as baggage, purse, dangerous materials | | Object Removal | Objects removed from the predefined region such as exhibits on display | | Exception Detections | Scene change detection, sudden audio increase/decrease detection, audio loss detection, de-focus detection | | Statistics | Object counting (entrance and exit object number is accounted and showed on screen in real time) | | | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | ≤95%, non-condensing | | Power Supply | 24 VAC ±10%, PoE 802.3at | | Power Consumption | 15.5 W | | IP Rating | IP67 | | IR Range | Up to 164' (50 m) | | Dimensions | 3.9 x 4.1 x 12.3" (10 x 10.4 x 31.2 cm) | | Weight | 4.4 lb (2 kg) | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 15.1 x 6.4 x 6.2" |
