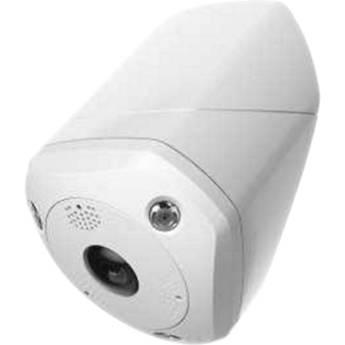

User Manual for Hikvision Smart Series 3MP Outdoor Panoramic Network Camera with 2mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series 3MP Outdoor Panoramic
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Smart Series 3MP Outdoor Panoramic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Smart Series 3MP Outdoor Panoramic Network Camera from Hikvision utilizes a 1/3" progressive scan CMOS sensor and a 2mm fixed lens for capturing images at a maximum resolution of 2048 x 1536. Image enhancements such as backlight compensation and 3D-DNR allow you to capture clear images in variable light for use in a variety of environments. A built-in microphone and speaker provide 2-way audio for listening and speaking to those you are monitoring. H.264 video compression conserves storage and bandwidth, and the camera features an integrated microSD slot that supports up to 64GB of on-site storage. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and PoE technology enables you to run just one wire for both data and power. Furthermore, with an IP66- and IK10-rated enclosure, the camera is suitable for installation outdoors and in high-risk locations. -
- 3MP resolution
- 2048 x 1536 at 25/30 fps real-time video
- WDR (120 dB)
- 2mm at f/2.4 panoramic lens
- Supports up to 64GB on-board storage
- Built-in mic and speaker
- IR range of up to 49'
- True day/night functionality
- Supports dual multi-streaming, motion detection, and backlight compensation
- Features Basic Smart Suite (counting, ROI, EIS, defog)
- Complies with ONVIF (Profile S and G), CGI, and ASAPI standards
- IP66 weather-resistant protection
UPC: 813908027570 In the Box Hikvision Smart Series 3MP Outdoor Panoramic Network Camera with 2mm Lens and Night Vision Wall Mount Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series 3MP Outdoor Panoramic Network Camera with 2mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6W32FWD-IVS Specs | Image Sensor | 1/3" progressive scan CMOS | | Min. Illumination | Color: 0.1 at f/1.2 (AGC On)
B&W: 0 with IR | | Lens | 2mm at f/2.4 | | Angle of View | Horizontal: 135°
Vertical (Wall): 98° | | Wide Dynamic Range | 120 dB | | IR Range | 49' (15 m) | | Video Compression | H.264 | | Maximum Image Resolution | 2048 x 1536 | | Multi-Streaming | Dual | | Audio Input/Output | Built-in speaker and mic | | Local Storage | Supports microSD card slot (maximum 64 GB, available separately) | | Certifications | UL/cUL listed | | Protection Level | IP66 and IK10 | | Operating Temperature Range | -22 to 140°F (-30 to 60°C) | | Power Requirements | 12 VDC, PoE (802.3af) | | Power Consumption | 12 W |
