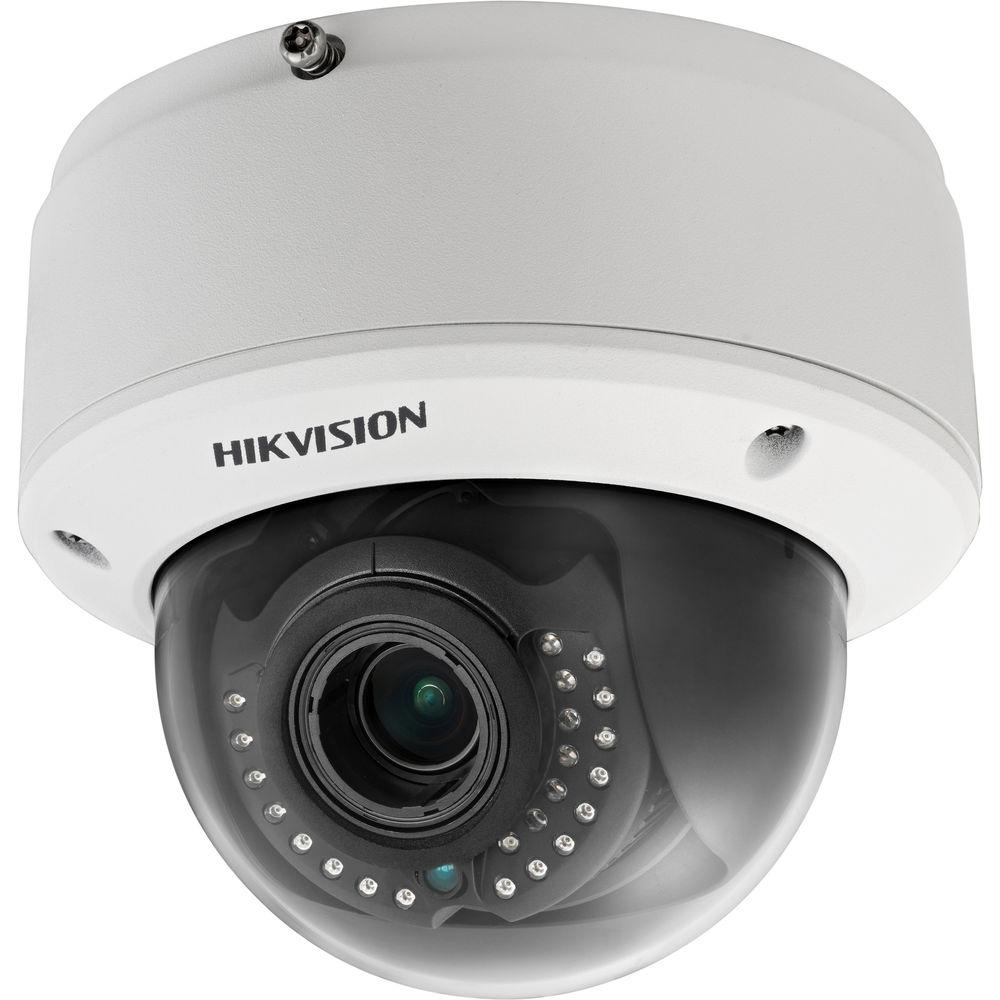

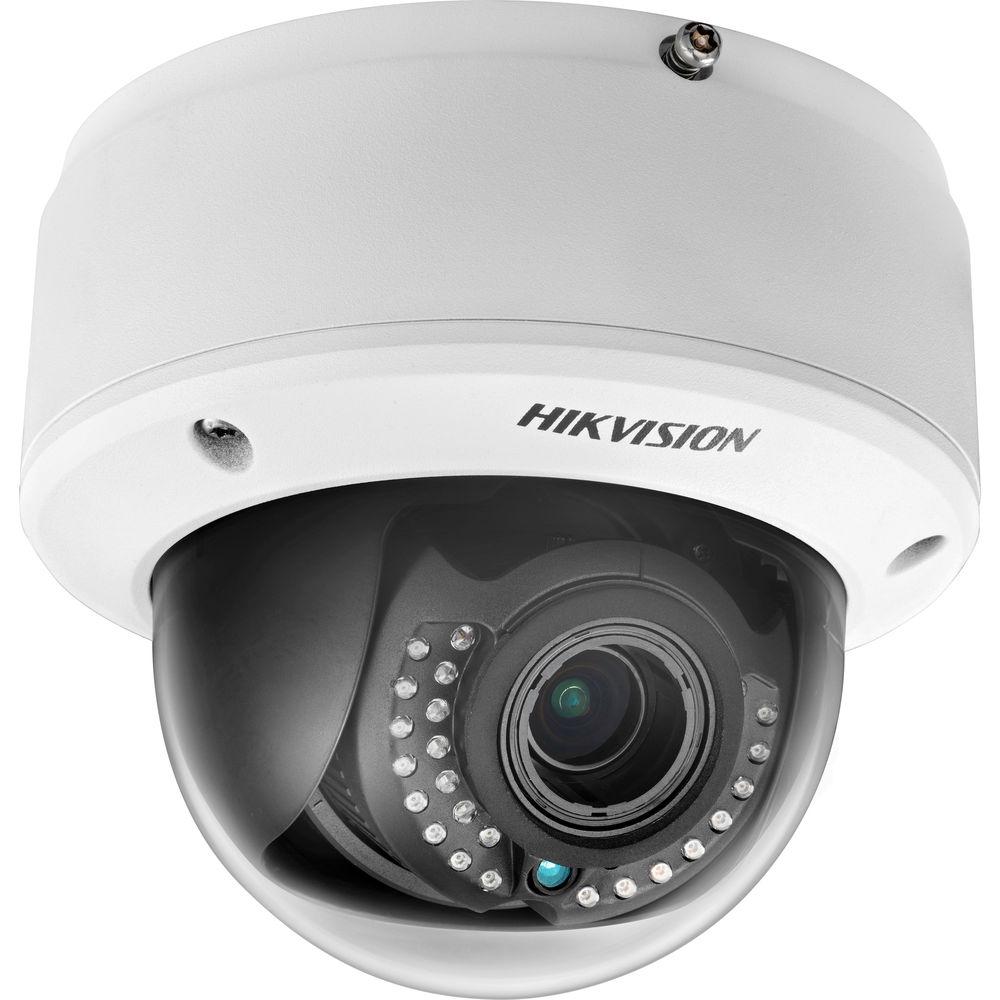

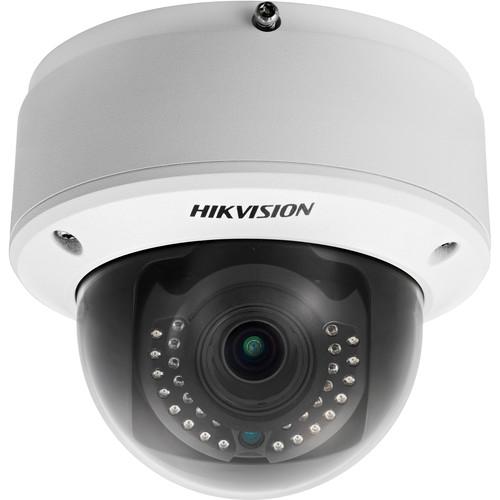

User Manual for Hikvision Smart Series 6MP Vandal-Resistant Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series 6MP Vandal-Resistant Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision Smart Series 6MP Vandal-Resistant Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor an indoor area with the Smart Series 6MP Vandal-Resistant Network Dome Camera with Night Vision from Hikvision. The camera is capable of capturing 3072 x 2048 resolution video at up to 25 fps for smooth, high-quality recordings. Built-in IR LEDs surround the lens to provide up to 98' of night vision. DWDR and 3D-DNR work with the IR cut filter to help the camera produce clear and accurate images in varying lighting conditions. The camera has a microSD slot that supports up to a 64GB microSD card (available separately) to store video locally. Adjust the angle of the 2.8-12mm lens using the 3-axis base to monitor a specified area within its 94.5-30.5° field of view. Housed in an IK10-rated enclosure, this camera is suitable for use in high-risk environments. - 1/1.8" progressive scan CMOS sensor captures 3072 x 2048 resolution video at up to 25 fps
- IR cut filter and IR LEDs for night vision up to 98'
- RJ45 Ethernet with PoE for simple installation
- 2.8-12mm varifocal lens has a 94.5-30.5° field of view
- DWDR and 3D-DNR for increased image clarity in varying lighting conditions
- 3-axis lens base for 0 to 355° pan, 0 to 75° tilt, and 0 to 355° rotation
- IK10-rated enclosure for protection impact
UPC: 813908020038 In the Box Hikvision Smart Series 6MP Vandal-Resistant Network Dome Camera with Night Vision Limited 3-Year Warranty Brochure PDF 378.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series 6MP Vandal-Resistant Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4165F-IZ Specs | | | Image Sensor | 1/1.8" progressive scan CMOS sensor | | Minimum Illumination | 0.01 lux at f/1.2 with AGC on
0.014 lux at f/1.4 with AGC on
0 lux with IR LEDs on | | Shutter Time | 1 to 1/100,000 sec
Slow shutter supported | | Lens | 2.8-12mm varifocal at f/1.4 | | Field of View | 94.5-30.5° | | Auto Iris | DC drive | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Day/Night | IR cut filter with auto switch | | Wide Dynamic Range | DWDR | | Digital Noise Reduction | 3D-DNR | | | | Video Compression | H.264, MJPEG | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711, G.722.1, G.726, MP2L2 | | Audio Bit Rate | 64 kbps at G.711, 16 kbps at G.722.1, 16 kbps at G.726, 32-128 kbps at MP2L2 | | | | Maximum Image Resolution | 3072 x 2048 | | Frame Rate | 60 Hz: 25 fps at 3072 x 2048, 30 fps at 3072 x 1728, 2560 x 2048, 2560 x 1920, 2048 x 1536, 1920 x 1080, 1280 x 720
50 Hz: 25 fps 3072 x 2048, 3072 x 1728, 2560 x 2048, 2560 x 1920, 2048 x 1536, 1920 x 1080, 1280 x 720 | | Multi-Streaming | Independent with Main Stream and Sub Stream, up to 25 fps at 1280 × 720 (50 Hz) and 30 fps at 1280 x 720 (60 Hz) | | Image Settings | Saturation, brightness, and contrast adjustable via client software or web browser
BLC, ROI | | Day/Night Switching | Auto, scheduled, triggered by alarm in | | | | Network Storage | NAS (Support NFS, SMB/CIFS) | | Alarm Trigger | Intrusion detection, defocus detection, motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional) | | Security | User authentication, watermark, IP address filtering, anonymous access | | Interoperability | ONVIF, PSIA, CGI, ISAPI | | | | Audio Input | 1-channel 3.5mm audio interface, mic in/line in | | Audio Output | 1-channel 3.5mm audio interface | | Communication | 1 x RJ45 10/100/1000M Ethernet port
1 x RS-485
1 x RS-232 | | Alarm | 1 x input and 1 x output | | Video Output | 1 V p-p composite output, 75 Ohms, BNC | | Memory Card Support | microSD/SDHC/SDXC card up to 64 GB (available separately) | | Reset Button | Yes | | | | IK Rating | IK10 | | Certifications | IEC 60068-2-75 Test, Eh, 20 joules, EN 50102 | | IR Range | Up to 98' (30 m) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | ≤95%, non-condensing | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | 6 W
Maximum: 9 W (IR: 2 W, Motorized Lens: 1 W) | | Dimensions | 5.5 x 4.8" (14 x 12.2 cm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.842 x 7.008 x 6.929" |
