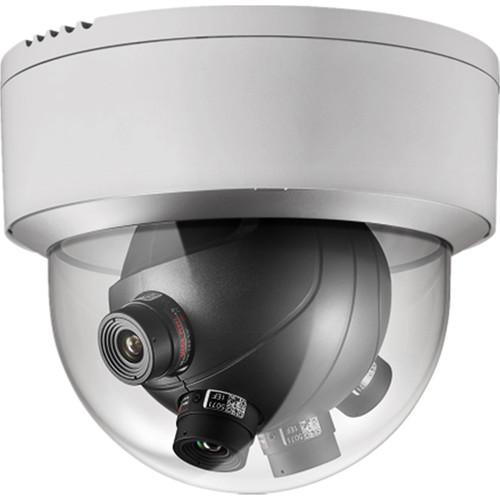

User Manual for Hikvision Smart Series 8MP Multi-Sensor Outdoor Network Panoramic Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series 8MP Multi-Sensor Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Smart Series 8MP Multi-Sensor Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor a large area with the Smart Series 8MP Multi-Sensor Outdoor Network Panoramic Dome Camera from Hikvision. The camera has four 5mm fixed lenses to capture 4096 x 1800 resolution video at up to 30 fps, and produce a combined 180° field of view. Each lens can be adjusted with 180° pan and 78.4° tilt to position them in the needed direction. An IR cut filter allows the camera to produce clear images in low-light conditions, while digital wide dynamic range and 3D digital noise reduction further help the camera capture accurate images in varying lighting conditions. The camera has a microSD card slot that can support up to a 128GB microSD card (available separately) for local video storage. Housed in an IP66- and IK10-rated enclosure, this camera is protected from dust, water, and impact, making it suitable for outdoor use and in areas at risk of vandalism. - Four adjustable 5mm fixed lenses
- Captures 4096 x 1800 resolution video at up to 30 fps
- 180° combined horizontal field of view to monitor a large area
- Low-light recording with IR cut filter, DWDR, and 3D-DNR
- Two-way audio communication
- Single PoE connection for quick setup
- Built-in heater and fan to ensure visibility in varying weather conditions
- IP66- and IK10-rated enclosure for outdoor use in high-risk locations
UPC: 813908027204 In the Box Hikvision Smart Series 8MP Multi-Sensor Outdoor Network Panoramic Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series 8MP Multi-Sensor Outdoor Network Panoramic Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6986F-H Specs | | | Image Sensor | 1/1.8" progressive scan CMOS sensor | | Minimum Illumination | Color: 0.002 lux at f/1.4, AGC on
B&W: 0 lux with IR on (emitter available separately) | | Shutter Speed | 1/25 to 1/100,000 sec | | Lens | 4 x 5mm fixed
Pan: 180°
Tilt: 78.4° | | Lens Mount | C/CS | | Angle Adjustment | Pan: 0 to 360°
Tilt: 45 to 90° | | Day/Night | IR cut filter (auto, schedule, alarm trigger) | | Wide Dynamic Range | DWDR | | Digital Noise Reduction | 3D-DNR | | | | Video Compression | H.264, MJPEG | | H.264 Profile | Baseline, main, high | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711, G.722.1, G.726, MP2L2. AAC, PCM | | Audio Bit Rate | G.711: 64 kbps
G.722.1: 16 kbps
G.726: 16 kbps
MP2L2: 32 to 192 kbps
AAC/PCM: 16 to 64 kbps | | | | Resolution | 4096 x 1800 | | Frame Rate | Mode 1:
Main Stream: 30 fps at 4096 x 1800, 3840 x 1680
Sub Stream: 30 fps at 704 x 320
Mode 2:
Main Stream: 24 fps at 2400 x 3840, 30 fps at 1200 x 1920
Sub Stream: 30 fps at 480 x 768, 320 x 512 | | Image Settings | Saturation, brightness, contrast, sharpness adjustable by client software or web browser | | Image Enhancement | Backlight compensation, defog | | Region of Interest | 4 regions | | | | Network Storage | NAS (supported NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception, line crossing | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour | | Security | Three-level user authentication, password authorization, HTTPS and SSH certificate, IEEE802.1X, basic and digest authentication, watermark, IP address filtering, login lockout | | Standard | ONVIF (Profile S and G), PSIA, CGI, ISAPI | | | | Audio | 1 x 3.5 mm audio input (mic in/line in) 1 x 2.5 mm audio output | | Communication Interface | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface | | Alarm | 1 x input, 1 x output | | Memory Card Support | microSD/SDHC/SDXC up to 128 GB | | | | IP Rating | IP66 | | IK Rating | IK10 | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | ≤95%, non-condensing | | Power Supply | 24 VAC ±10%
PoE+ (802.3at) | | Maximum Power Consumption | 22 W | | Dimensions | 7.7 x 6.3" (195 x 159 mm) | | Weight | 6.3 lb (2.9 kg) | | | | Package Weight | 7.15 lb | | Box Dimensions (LxWxH) | 10.9 x 10.0 x 8.9" |
