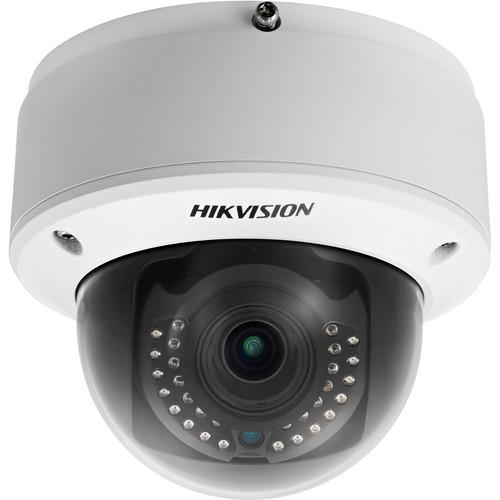

User Manual for Hikvision Smart Series 8MP Vandal-Resistant Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series 8MP Vandal-Resistant Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision Smart Series 8MP Vandal-Resistant Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

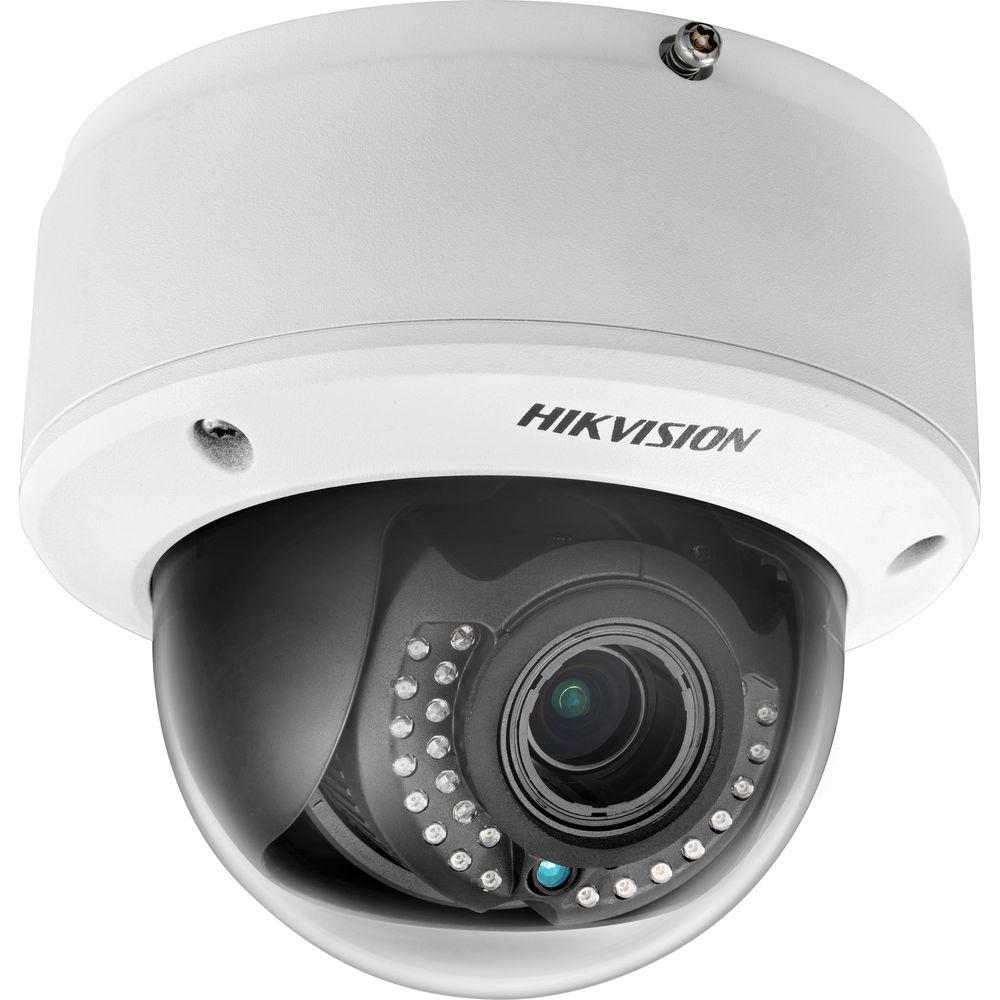

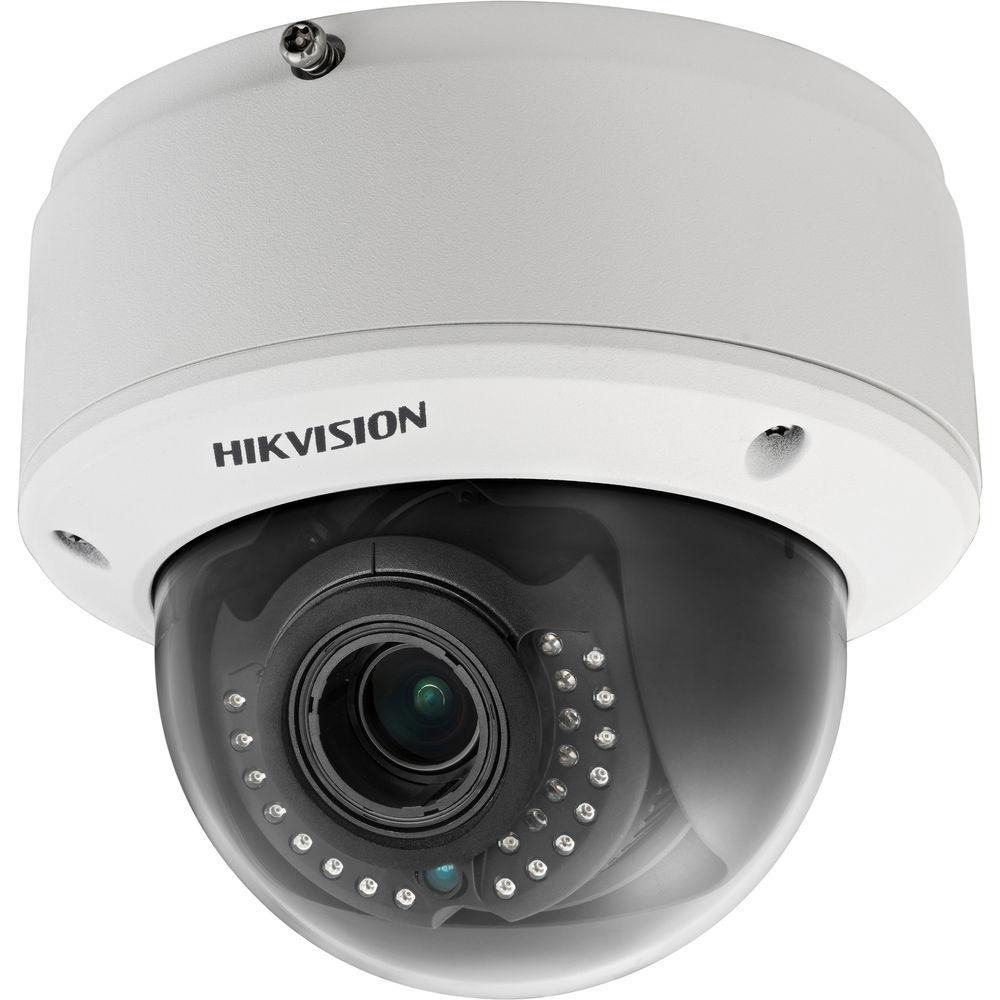

Product description The Smart Series 8MP Vandal-Resistant Network Dome Camera with Night Vision from Hikvision features a 1/1.7" progressive scan CMOS sensor to capture 4096 x 2160 resolution video at up to 30 fps. Its 2.8-12mm varifocal lens has a 96-32.6° field of view to monitor a medium-sized indoor area. IR LEDs and an IR cut filter allow the camera to produce clear images of objects in complete darkness up to 98' away. The camera supports H.264 and MJPEG compression formats with simultaneous dual streaming to optimize network bandwidth. There are inputs and outputs for audio components as well as an alarm, and an RJ45 port provides Ethernet connectivity and PoE functionality. Digital wide dynamic range and 3D-DNR allow the camera to capture accurate images under varied lighting conditions. The microSD slot supports up to a 128GB memory card (available separately) for local storage. The camera is housed in an IK10-rated enclosure for protection against impact, making it suitable for use in high-risk environments. - Captures 8MP video at up to 30 fps
- IR cut filter and IR LEDs for night vision up to 98'
- 2.8-12mm lens has a 96-32.6° field of view
- DWDR and 3D-DNR for accurate images in varying lighting conditions
- IK10-rated enclosure for impact protection and vandal resistance
UPC: 813908021257 In the Box Hikvision Smart Series 8MP Vandal-Resistant Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series 8MP Vandal-Resistant Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4185F-IZ Specs | | | Image Sensor | 1/1.7" progressive scan CMOS sensor | | Minimum Illumination | Color: 0.014 lux at f/1.4
B&W: 0 lux with IR LEDs on | | Shutter Speed | 1 to 1/100,000 sec | | Lens | 2.8-12mm varifocal | | Field of View | 96-32.6° | | Lens Mount | Φ14 | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Iris | Auto DC drive | | Day/Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | DWDR | | | | Video Compression | H.264, MJPEG | | H.264 Profile | Baseline, main, high | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711, G.722.1, G.726, MP2L2 | | Audio Bit Rate | G.711: 64 kbps
G.722.1: 16 kbps
G.726: 16 kbps
MP2L2: 32-128 kbps | | | | Maximum Resolution | 4096 x 2160 | | Maximum Frame Rate | 30 fps at 4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 | | Streams | Independent with main stream and sub stream, up to 30 fps at 1280 x 720 | | BLC | Supported | | Defog | Supported | | ROI | Supported | | Day/Night | Auto, schedule, triggered by alarm in | | Picture Overlay | Logo picture can be overlaid on video with 128 x 128 24-bit BMP format | | | | Network Storage | NAS (supports NFS, SMB/CIFS) | | Alarm Triggers | Intrusion detection, defocus detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Security | User authentication, watermark, IP address filtering, anonymous access | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Standard | ONVIF, PSIA, CGI, ISAPI | | | | Communication | RJ45 10/100/1000M Ethernet port
RS-485 interface
RS-232 interface | | Alarm | 1 x input, 1 x output | | Video Output | 1 x V p-p composite output (75 Ohms, BNC) | | Memory Card Support | microSD/SDHC/SDXC up to 128 GB (available separately) | | Reset | Yes | | | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | ≤95% non-condensing | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Maximum Power Consumption | 13 W | | IR Range | Up to 98.4' (30 m) | | IK Rating | IK10, IEC 60068-275 Eh, 20J, EN50102 | | Dimensions | 5.51 x 4.8" (140 x 121.8 mm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 9.7 x 7.0 x 6.9" |
