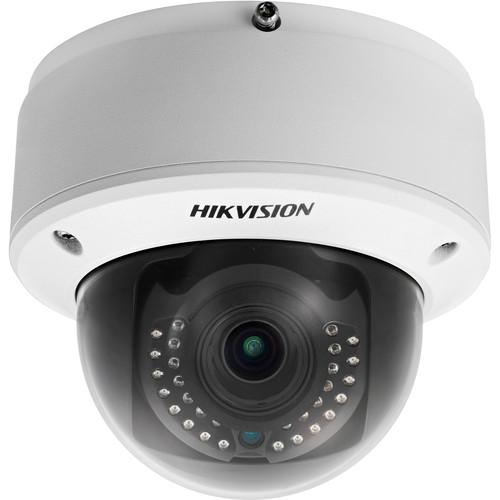

User Manual for Hikvision Smart Series DS-2CD41C5F-IZ 12MP Network Dome Camera with Night Vision & 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Smart Series DS-2CD41C5F-IZ 12MP Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision Smart Series DS-2CD41C5F-IZ 12MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

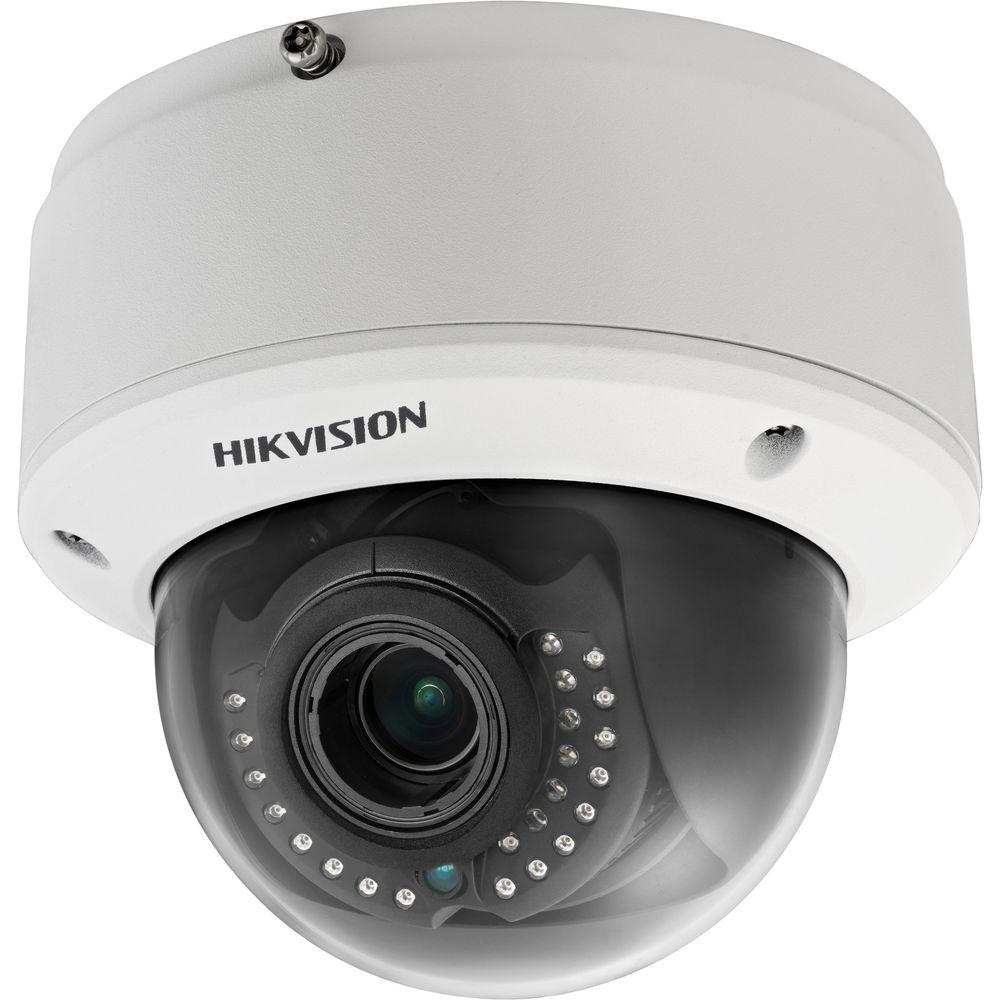

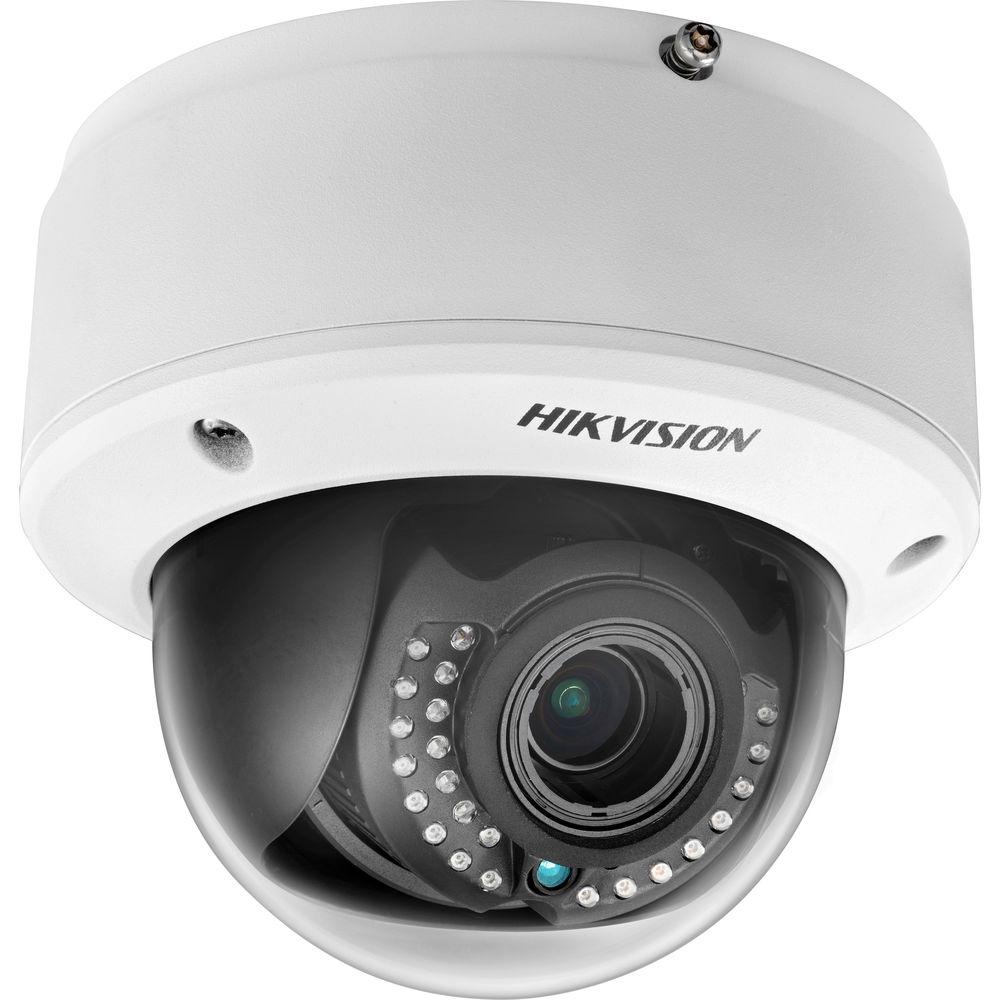

Product description The DS-2CD41C5F-IZ from Hikvision uses a 1/1.7" progressive scan CMOS sensor to capture 4000 x 3000 resolution video at 15 fps. IR LEDs provide up to 98' of night vision. The 2.8-12mm motorized varifocal lens delivers a 93.6 to 31.8° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard slot supports microSD/SDHC/SDXC cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transferring power and data over one cable.
This dome camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IK10-rated enclosure for impact protection. - IR cut filter with auto switch enables day and night functionality
- H.264+, H.264, and MJPEG video compression
- Digital wide dynamic range
- Analytics include motion detection, line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal, exception detection, and object counting
- Image enhancements include backlight compensation, highlight compensation, 3D-DNR, region of interest, and defog
- Image settings include rotate mode, saturation, brightness, contrast, and sharpness
- Support for distortion correction and region cropping
- Camera horizontally pivots from 0 to 355° & from 0 to 75° vertically
- Alarm triggers include motion detection, tampering alarm, network disconnect, IP address conflict, and storage exception
- 10/100/1000M Ethernet port
- IK10-rated enclosure for impact protection
UPC: 842571100174 In the Box Hikvision Smart Series DS-2CD41C5F-IZ 12MP Network Dome Camera with Night Vision & 2.8-12mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Smart Series DS-2CD41C5F-IZ 12MP Network Dome Camera with Night Vision & 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD41C5F-IZ Specs | | | Sensor | 12 MP 1/1.7" CMOS | | Lens Mount | M14 | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 93.6 to 31.8° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.014 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 4000 x 3000 at 15 fps (16 Mb/s )
4096 x 2160 at 22 fps
3840 x 2160 at 24 fps
3072 x 1728 at 30 fps
2560 x 1440 at 30 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps | | Supported Video Compression | H.264, H.264+, MJPEG | | Multi-View Streaming | Yes | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Anonymous Authentication, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, PSIA, CGI, ISAPI | | Analytics | Motion Detection, Line Crossing Detection, Intrusion Detection, Region Entrance, Region Exiting, Unattended Baggage, Object Removal, Exception Detection, Object Counting | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC
1 x 9-Pin Serial (RS-485) | | IR Range | 98.43' / 30 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | DC: 12 W
PoE+: 18 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IK Rating | IK10 | | Dimensions |
