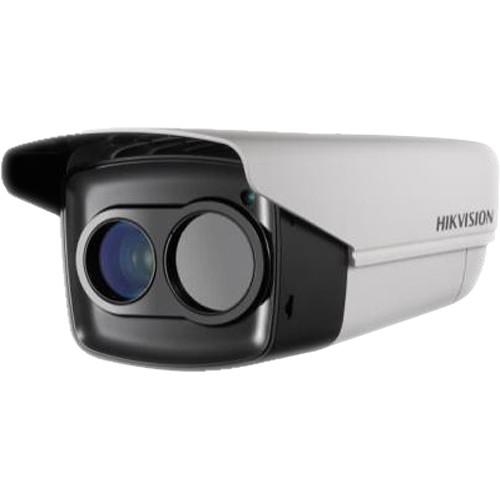

User Manual for Hikvision Thermal Optical Bi-Spectrum Network Bullet Camera with 25mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Thermal Optical Bi-Spectrum Network Bullet
- Product category: Security Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Security Cameras
|
User manual for the Hikvision Thermal Optical Bi-Spectrum Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Thermal Optical Bi-Spectrum Network Bullet Camera from Hikvision utilizes a 1/1.8" progressive scan CMOS sensor and a 25mm lens to capture images at a resolution up to 1920 x 1080. With an IR-cut filter, this camera can capture clear images in complete darkness for up to 394'. The camera supports H.264, MPEG4, and MJPEG compression formats with dual streaming. The camera offers WDR of up to 120 dB for capturing images under varied lighting conditions. It comes with a built-in microSD/SDHC/SDXC card slot for on-board storage up to 64GB. This IP66-rated weather-resistant camera is suitable for outdoor applications. -
- Supports intrusion, line crossing, region entrance, region exiting, and audio exception detection
- Supports edge recording
- Supports low bitrate and SVC adaptive codec technique
- IR range up to 394'
- Built-in temperature conditioner
- Open-ended API
- Supports PAL and Hikvision SDK, ONVIF, CGI, and PSIA
- Each stream supports recording and each HD channel supports independent resolution, frame rate, and stream rate setting
- Code smoothness setting for different image quality and fluency requirements
- B&W self-adaptive and custom multiple OSD color
- Automatically adaptive to HIKVISION, Pelco-P/D
- 3D intelligent positioning function
- Power-off memory function (restores PTZ and lens status after reboot)
- Lightning protection, surge protection, and voltage transient protection
- IP66-rated housing
- System backup
- Supports RS-485, one audio input, and one audio output
- Supports WDR up to 120 dB, 3D-DNR, auto shutter, auto Iris, slow shutter, auto white balance, backlight compensation, and rotate mode
- Rotate mode makes the camera suitable for areas such as a corridor
- Supports defog and electronic image stabilizer (EIS)
- IR-cut filter with auto switch
- Smart IR prevents overexposure at close distances
- Supports shutter adjustment in various modes
- Supports 14 pseudo adjustable colors, mirror image, contrast adjustment, and image detail enhancement
- 24/7 long-distance surveillance
- Ethernet control
- View image and control using IE and client software
- Built-in microSD/SDHC/SDXC card slot (maximum 64GB)
- Supports up to 8 NAS, edge recording, three-level user, authorized user and password, HTTPS encryption, IEEE 802.1x access control, and IP address filtering
- Supports H.264/MJPEG/MPEG4 (H.264: Baseline/Main/High Profile)
- Features real-time output resolution in HDTV1080p (SMPTE274M Standard), 960p, and HDTV720p (SMPTE296M Standard)
- Supports dual-stream technology, NAS, email, FTP, and NTP Server testing
- Supports creating certificate and basic and digest certification in IE configuration
- Supports security certification as HTTPS and SSH
- Locks user IP for repeated error login and provides password complexity notification
UPC: 813908029116 In the Box Hikvision Thermal Optical Bi-Spectrum Network Bullet Camera with 25mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Thermal Optical Bi-Spectrum Network Bullet Camera with 25mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2TD2235D-25 Specs | | | Maximum Resolution | 384 x 288 | | Sensor | 1/1.8" progressive CMOS sensor | | Min Illumination | Color: 0.002 lux @ f/1.2 (AGC On)
Black: 0.0002 lux @ f/1.2 (AGC On) | | Wave Band | Response Waveband: 8 to 14 μm | | Thermal Sensitivity (NETD) | < 50 mk @ 25°C, f/1.0 | | Reference | Human: 5.9 x 1.6' / 1.8 x 0.5 m | | Focal Length | 25mm | | Visible Light Transmission | 11 to 40mm | | MRTD | 1 | | Range | Detection Range:
Vehicles: 5095' / 1553 m
Humans: 1640' / 500 m
Recognition Range:
Vehicles: 1256' / 383 m
Humans: 410' / 125 m
Identification Range:
Vehicles: 630' / 192 m
Humans: 206' / 63 m | | Field Angle | 21.7° x 16.4° | | Aperture | f/1 | | Image Settings | Brightness, AGC, DDE, and FFC adjustable via client software or web browser | | Color Palette | White hot, black hot, fusion1, rainbow, fusion2, ironbow1, ironbow2, sepia, color1, color2, ice fire, rain, red hot, and green hot | | | | IR Distance | Up to 394' / 120 m | | Intensity Adjustment | Automatic | | | | Image Resolution | Visible Light: 1920 x 1080
Thermal: 384 x 288 | | Stream Type | Main Stream:
50 Hz: 25 fps @ 1920 x 1080, 25 fps @ 1280 x 960, 25 fps @ 1280 x 720 (visible light)
60 Hz: 30 fps @ 1920 x 1080, 30 fps @ 1280 x 960, 30 fps @ 1280 x 720 (visible light)
50 Hz: 25 fps @ 384 x 288 (thermal)
Sub Stream:
50 Hz: 25 fps @ 704 x 576, 25 fps @ 352 x 288, 25 fps @ 176 x 144
60 Hz: 30 fps @ 704 x 480, 30 fps @ 352 x 240, 30 fps @ 176 x 120
50 Hz: 25 fps @ 160 x 120 (thermal) | | Video Compression | H.264 / MJPEG / MPEG4
H.264 encoding with Baseline/Main/High profile | | Audio Compression | G.711u/G.711a/G.722.1/MP2L2/G726/PCM | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, and Bonjour | | Live View | Up to 20, simultaneously | | User/Host Level | Up to 32 users and 3 levels (administrator, operator, and user) | | Security | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering | | | | Alarm Input | 1 x Inputs (0 to 5 VDC) | | Alarm Output | 1 x Relay outputs (alarm response actions configurable) | | Alarm Actions | SD recording, relay output, smart capture, FTP upload, email linkage | | Audio Input | 1 x Mic in/line in interface
Line Input: 2 to 2.4 V p-p
Output Impedance: 1 kOhms (±10%) | | Audio Output | Line level
Impedance: 600 Ohms | | Ethernet | 1 x RJ45 10M/100M self-adaptive Ethernet interface | | Memory Card | Built-in microSD card slot, supports microSD/SDHC/SDXC card up to 64 GB | | Recording | Supports manual/alarm recording | | Analog Video Output | 1.0 V p-p
75 Ohms, PAL or NTSC, BNC | | RS485 | Half-duplex Hikvision, PELCO-P, PELCO-D, self-adaptive | | Application Programming Interface | Open-ended API, ONVIF, PSIA, CGI, Hikvision SDK, and third-party management platform | | Client | iVMS-4200 | | Web Browser | IE7+, Chrome 18+, Firefox 5.0+, Safari 5.02 | | | | Menu Language | Chinese, English | | Power | 24 VAC
40 W (maximum) | | Operating Temperature | -40 to 140°F / -40 to 65°C | | Humidity | 90% or less | | Protection Level | IP66
TVS 6000 V lightning protection, surge protection, voltage transient protection | | Dimensions | 15.9 x 6.9 x 5.9" / 404 x 174 x 149 mm | | Weight | 15.4 lb / 7.0 kg |
