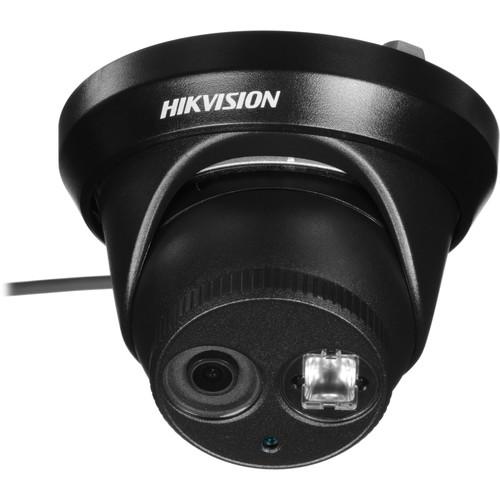

User Manual for Hikvision Turbo HD 1080p Outdoor HDTVI Turret Camera with Night Vision & 3.6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Turbo HD 1080p Outdoor HDTVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision Turbo HD 1080p Outdoor HDTVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Compatible with PAL and NTSC, the black Turbo HD 1080p EXIR Turret Camera from Hikvision offers various features for use in a myriad of environments. Housed in a waterproof and dustproof enclosure, the camera can be installed in outdoor environments to provide clear 1080p HDTVI video footage. With integrated IR LEDs and Hikvision's EXIR technology, the camera can record footage up to 131' away, even in total darkness without center image over-exposure or shadowed corners. The onscreen display menu allows you to make changes to the recording and light settings of the camera for increasing image sharpness and brightness. Backlight compensation, digital noise reduction, auto gain composure, and adjustable white balance features assist in providing clear video footage, regardless of changing light levels. - HDTVI signal output for 1080p video over coaxial cables
- Infrared LEDs allow for images to be recorded even in the absence of light
- On-screen display operates through on-board control and UTC and offers detailed settings of features for adjusting the camera to specific needs
- DNR settings allow for cleaner images by removing unwanted noise
- Day/Night and backlight compensation allow for viewable images even in environments with changing light levels
- WDR ability provides for detailed pictures
- Adjustable white balance creates accurate color depiction
- Auto gain control adjustments for maintaining strong illumination signals
- Motion detection can be programmed for up to 4 zones
- Privacy masking zones allow you to record only desired areas
- Digital zoom settings for focusing on a specific point
- Waterproof and dustproof IP66-rated enclosure
In the Box Hikvision Turbo HD 1080p Outdoor HDTVI Turret Camera with Night Vision & 3.6mm Fixed Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Turbo HD 1080p Outdoor HDTVI Turret Camera with Night Vision & 3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D5T-IT3B-3.6MM Specs | Image Sensor | 1/3" progressive scan CMOS | | Signal System | NTSC/PAL | | Effective Pixels (H x V) | 1920 x 1080 | | Lens | 3.6mm fixed | | Frame Rate | 1080p at 30 fps | | Minimum Illumination | Color: 0.01 lux @ f/1.2 (AGC on)
B/W: 0 with IR | | Shutter Speed | 1/25 (1/30) to 1/50,000 sec | | Angle of View | 80.9° | | Adjustments | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | IR Range | 131.2' / 40 m | | Day/Night | IR cut filter
Color/B&W/EXT | | Wide Dynamic Range | 120 dB | | Privacy Masking | Up to 8 zones | | Motion Detection | Up to 4 zones | | Synchronization | Internal | | OSD and System Menu Display | Up the coax | | Output | HDTVI: 1 x analog HD
CVBS: 1 V p-p composite (75 Ohms, BNC) | | S/N Ratio | >52 dB | | Exposure | Globe AE / DWDR | | Automatic Gain Control | Supported | | Backlight Compensation | On/off | | Anti-Flicker | On / off | | White Balance | ATW, AWC-SET, Indoor, Outdoor, Manual | | Languages | English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew, and Arabic | | Functions | Digital wide dynamic range, 3D digital noise reduction, sharpness, brightness, digital zoom, mirror, slow shutter, defect pixel correction, eclipse | | Power Supply | 12 VDC | | Power Requirements | 5.5 W | | Operating Temperature & Humidity | -22 to 140°F (-30 to 60°C), 90% non-condensing humidity | | Dimensions | 4.5 x 3.5" (114.6 x 89.1 mm) | | Weight | 0.75 lb (0.34 kg) |
