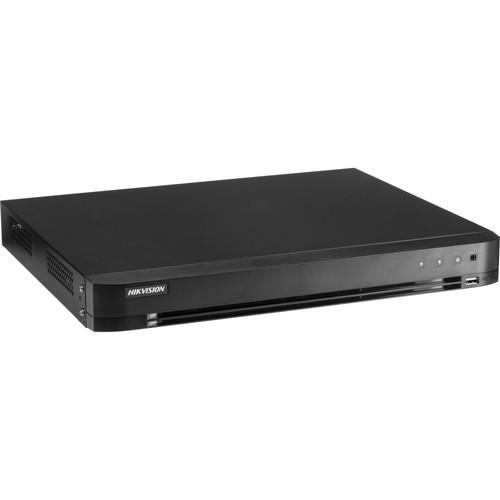

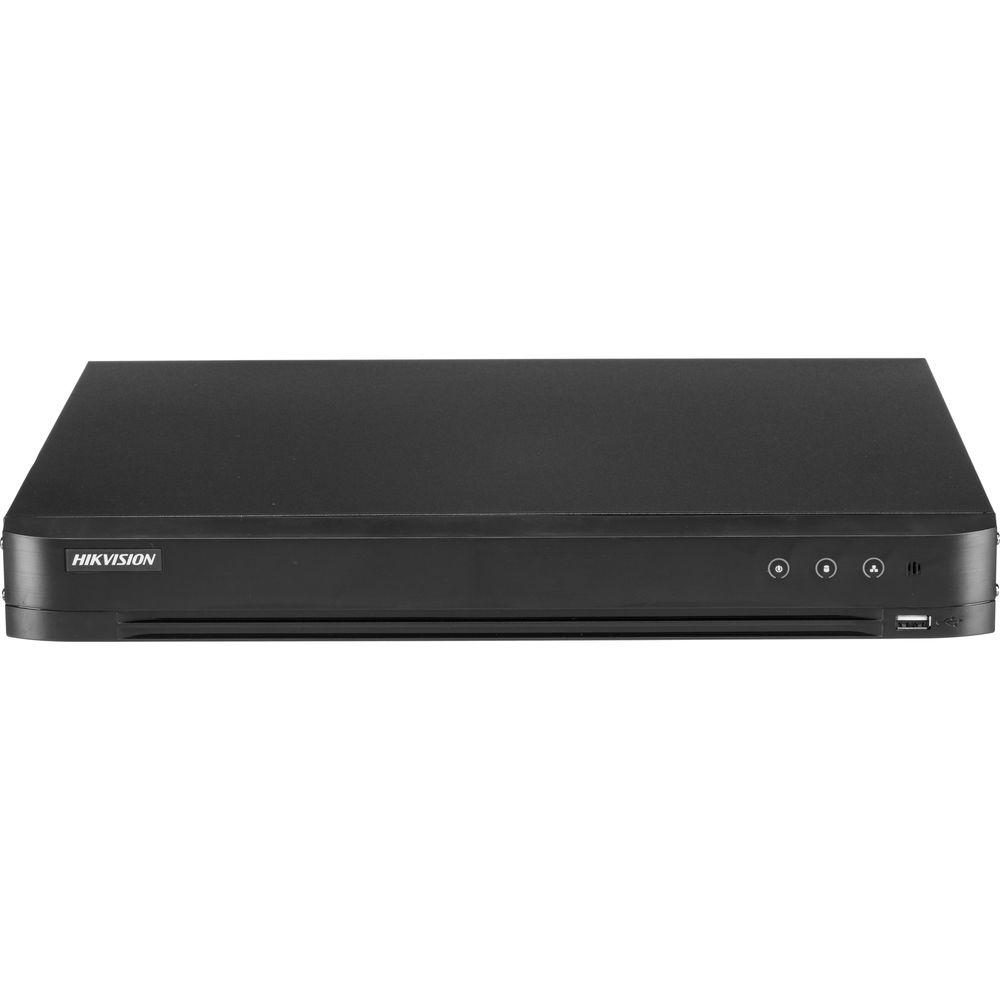

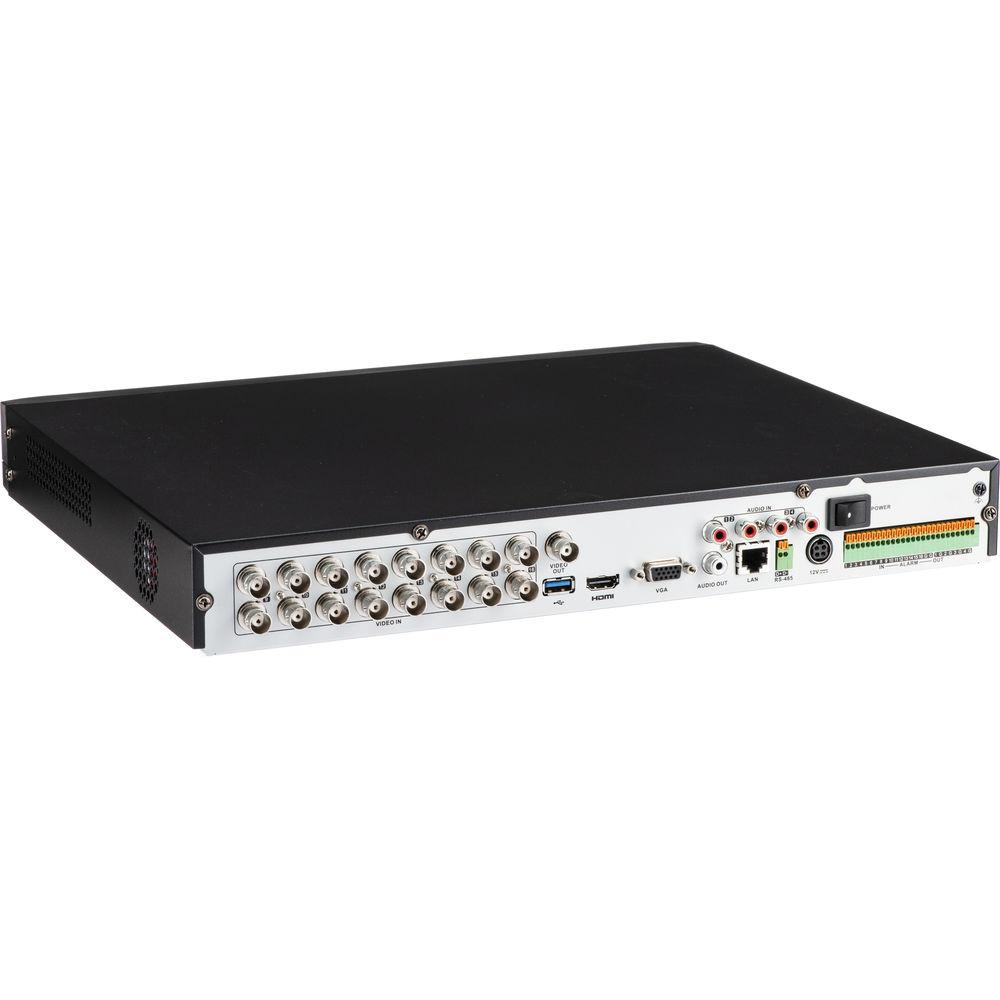

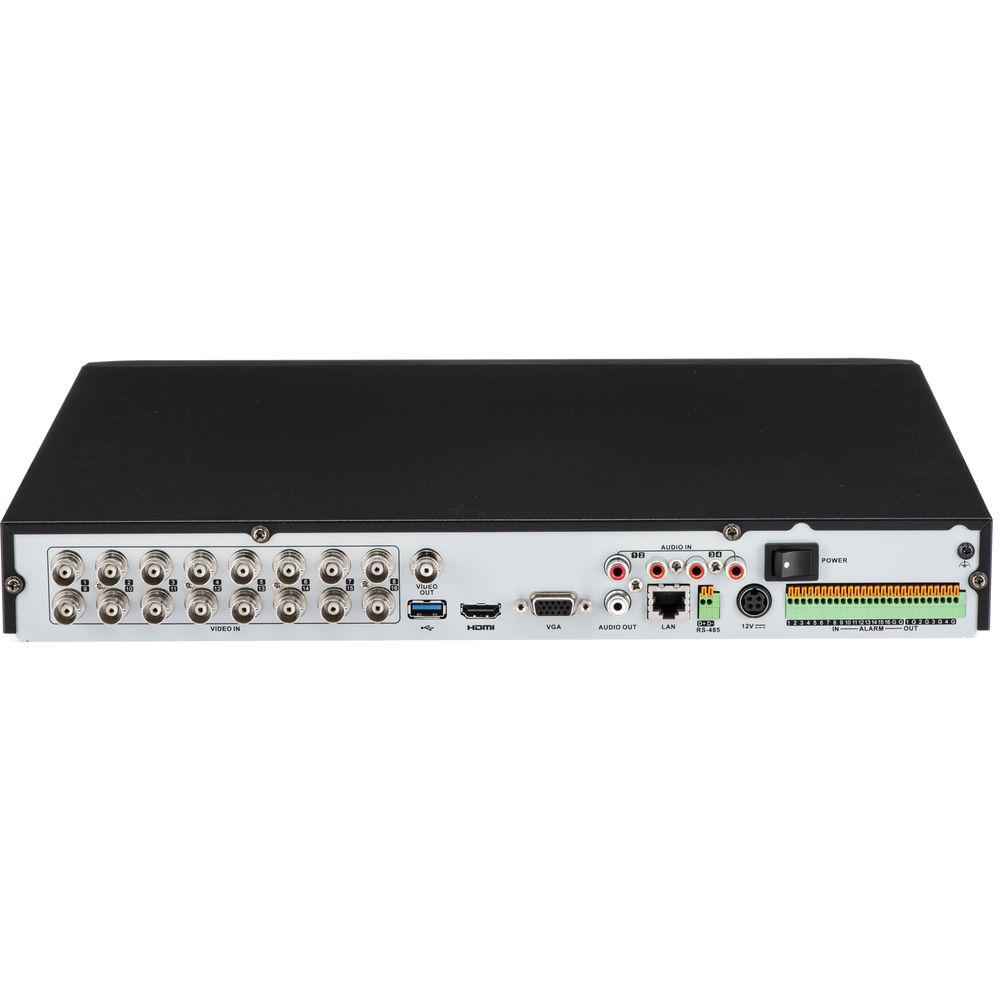

User Manual for Hikvision Turbo HD Tribrid 16-Channel 5MP DVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision Turbo HD Tribrid 16-Channel 5MP
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
 |
User manual for the Hikvision Turbo HD Tribrid 16-Channel 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Turbo HD Tribrid 16-Channel 5MP DVR with 2TB HDD from Hikvision enables you to record from and manage up to 16 cameras. This DVR offers full channel recording at up to 5MP resolution. It comes with a 2TB HDD preinstalled. Storage is expandable to two SATA HDDs each with a maximum 8TB capacity, for a total of 16TB. A BNC-type interface supports HD-TVI, HD-CVI, AHD & CVBS signal inputs, and a self-adaptive Ethernet interface supports IP cameras up to 6MP on two channels. H.265+, H.265, H.264+, and H.264 video compression keeps file sizes manageable while maintaining quality.
An RCA connector offers two-way audio communication. In addition, there are HDMI and VGA connections for video output, with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video. This device supports third-party cloud storage using Dropbox, Google Drive, or Microsoft OneDrive. - Self-adaptive HD-TVI, HD-CVI, AHD, and CVBS signal inputs
- Full channel recording at up to 5MP resolution
- Supports up to 6MP IP cameras on two channels
- Supports H.265+, H.265, H.264+, and H.264 IP cameras
- Supports long distance transmission over UTP and coaxial cable to a maximum distance of 3937' at 720p and 2624' at 1080p
- Simultaneous HDMI & VGA output
- Supports third-party cloud storage such as Dropbox, Google Drive, and Microsoft OneDrive
- Defogging function for supported analog cameras
- Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
- Supports line crossing detection and intrusion detection of all channels, and 2-channel sudden scene change detection
- Supports PTZ control via Omnicast VMS of Genetec protocol
- Self-adaptive Ethernet interface
- 1 x USB 2.0 and 1 x USB 3.0 ports
- 16 alarm inputs and 4 alarm outputs
- Output bandwidth limit configurable
UPC: 842571108286 In the Box Hikvision Turbo HD Tribrid 16-Channel 5MP DVR with 2TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Turbo HD Tribrid 16-Channel 5MP DVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7216HUI-K2-2TB Specs | Video Compression | H.265+, H.265, H.264+, H.264 | | Analog Video Inputs | 16
BNC interface (1.0 V p-p, 75 Ohms), supporting coaxitron connection
HD-TVI: 5 MP, 4 MP, 3 MP, 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 60 fps, 1280 x 720 at 50 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps
AHD: 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps
HD-CVI: 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps
CVBS: NTSC/PAL | | IP Video Inputs | 2-channel
Up to 6 MP resolution
Supports H.265+, H.265, H.264+, and H.264 network cameras | | Audio Compression | G.711u | | Audio Input | 4-channel, RCA (2 V p-p, 1 kOhm) | | VGA Output | 1 Channel at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | HDMI Output | 1 Channel at 30 Hz: 3840 x 2160 (4K UHD)
1 Channel at 60 Hz: 2560 x 1440 (2K), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF | | Frame Rate | Main Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps
1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL)
Sub-Stream: WDI/4CIF/CIF at 30 fps (NTSC) / 25 fps (PAL) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 1 channel, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video & audio | | Synchronous Playback | 16-channel | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | SATA | 2 SATA interfaces | | Capacity | Up to 8 TB capacity for each disk (2 TB preinstalled) | | Two-Way Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm using the first audio input) | | Network Interface | 1 x RJ45 10/100/1000M self-adaptive Ethernet interface | | USB Interface | Front Panel: 1 x USB 2.0
Rear Panel: 1 x USB 3.0 | | Serial Interface | RS-485 (half-duplex) | | Alarm I/O | 16 inputs
4 outputs | | Power Supply | 12 VDC | | Power Consumption | Without HDD: ≤25 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions (W x D x H) | 15.0 x 12.6 x 1.9" / 380 x 320 x 48 mm | | Weight | Without HDD: 4.4 lb / ≤2 kg | | | | Package Weight | 8.735 lb | | Box Dimensions (LxWxH) | 17.2 x 15.65 x 5.9" |
